576wh
295*202*241mm
9kg
Availability: | |
---|---|

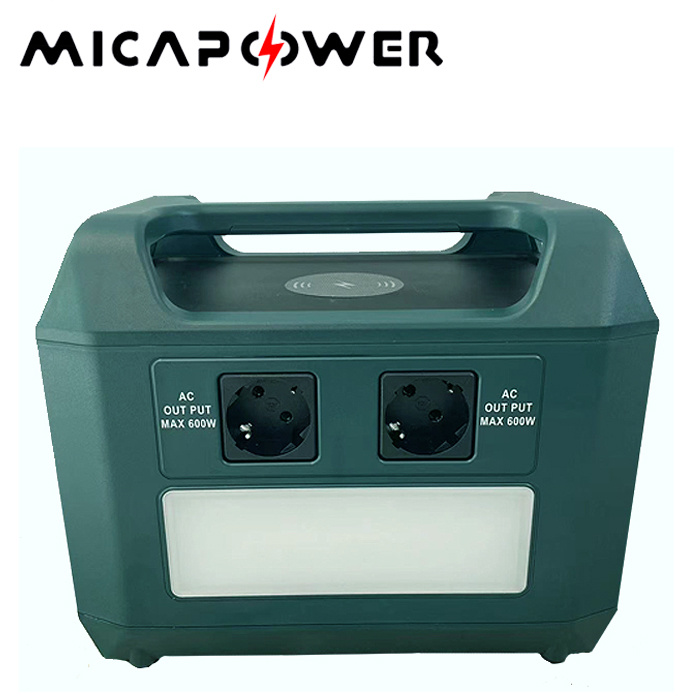

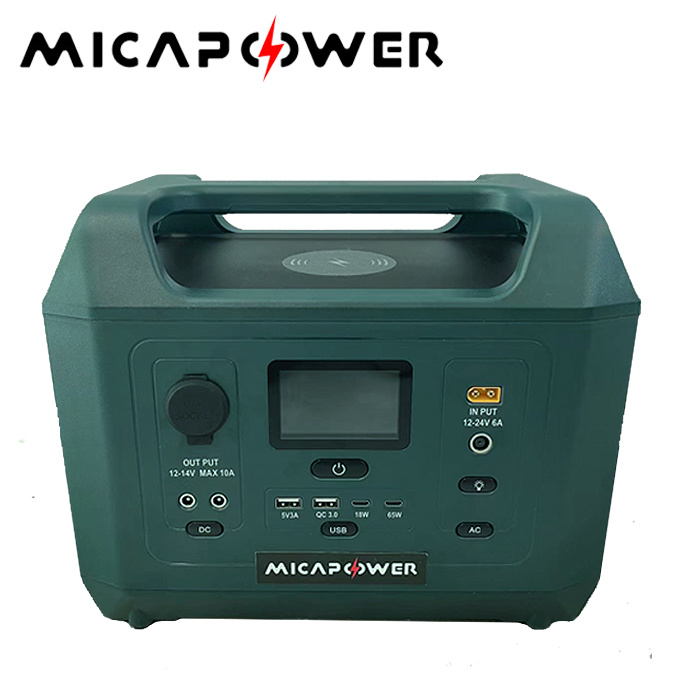

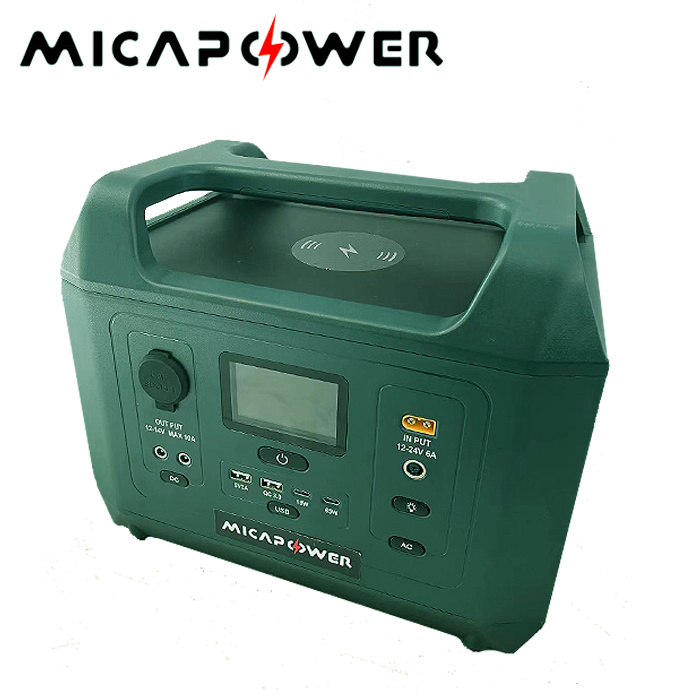

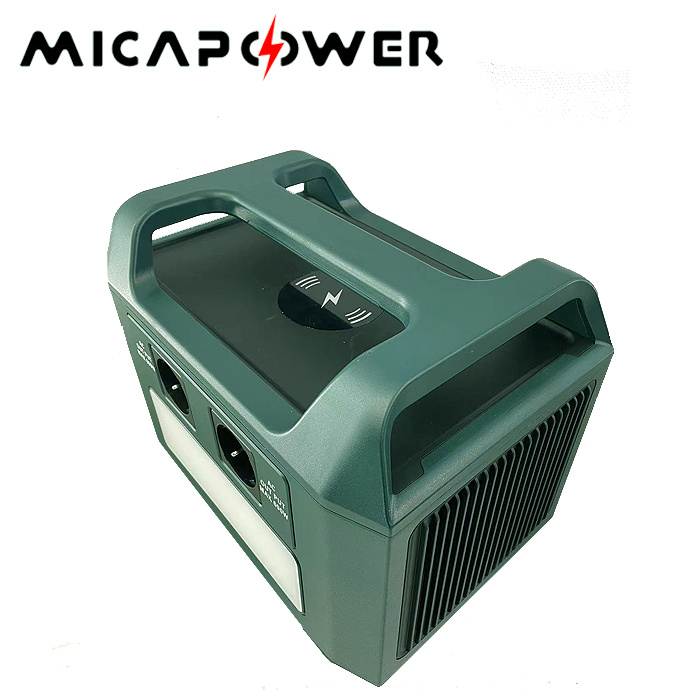

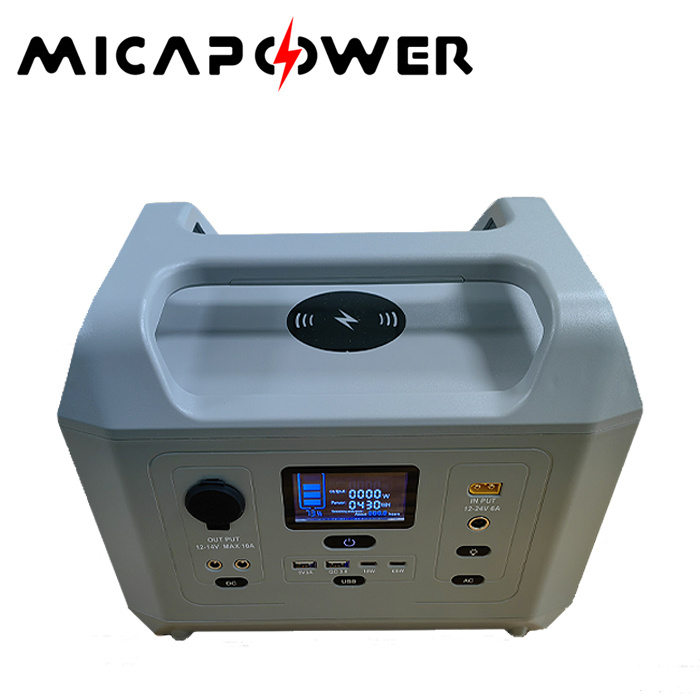

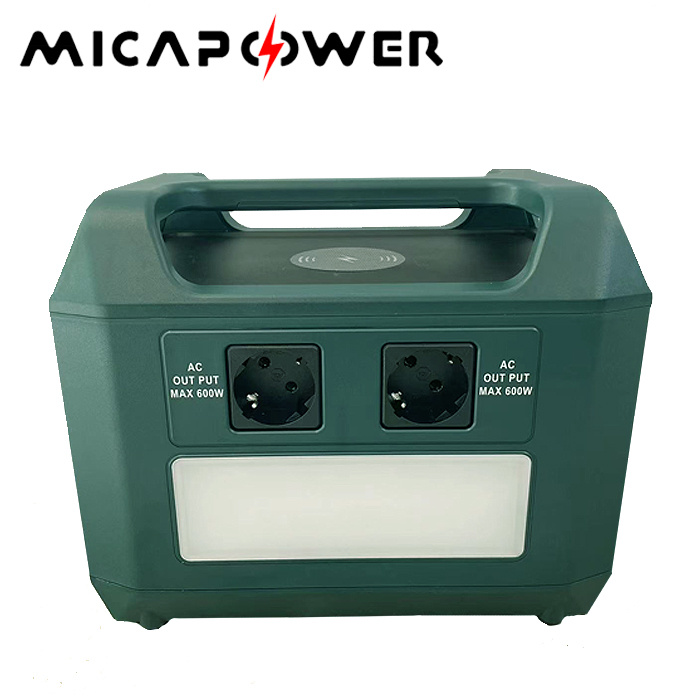

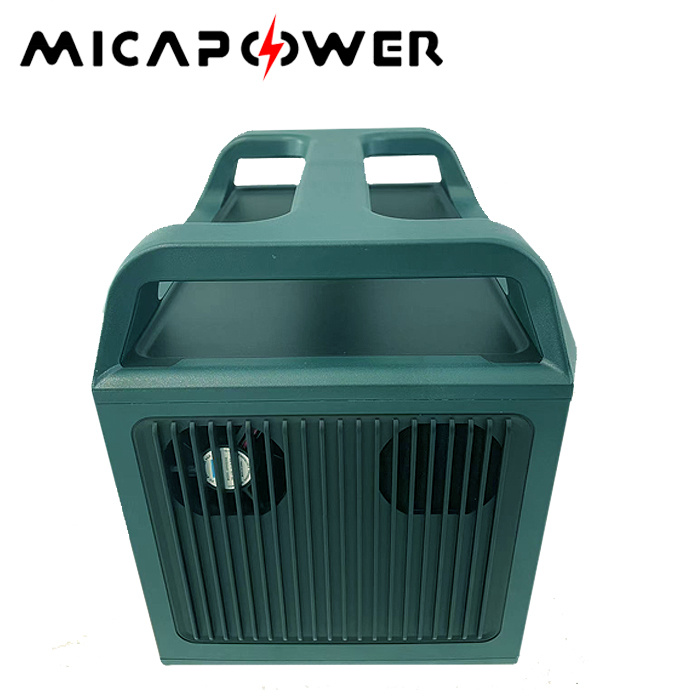

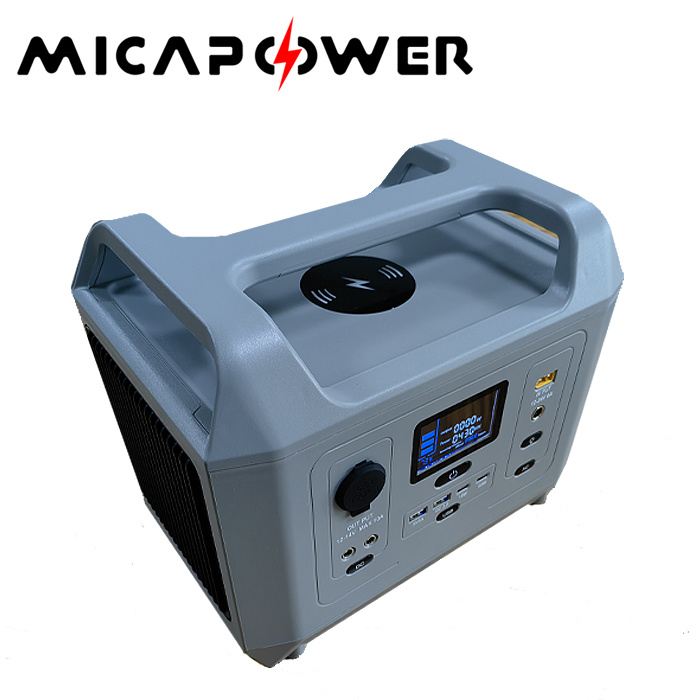

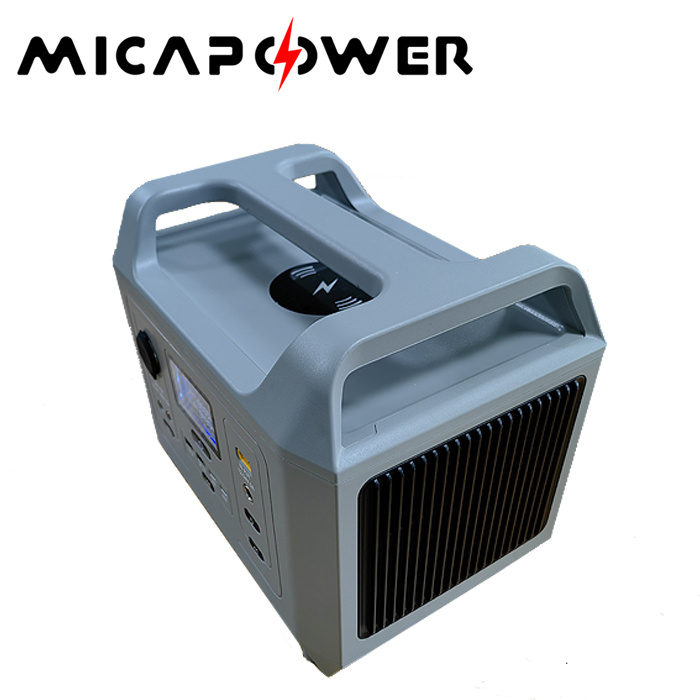

solar power station,1500w power station, camping power station
Specification
Battery | Capacity | LiFeP04 25.6V40Ah 1024Wh |
AC Input | AC 230V Charging | 230V |
PV Input | 12~100V 400W max Charger | |
USB/Output | USBl Output USB2 0utput TYPE C1 Output TYPE C2 Output | QC3.018W5V3A/9V2A/12V1.5A QC3.018W5V3A/9V2A/12V1.5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A |
DC Output | DC1 Output DC2 Output Cigarette lighter Output | 12V8A 12V8A 12V8A |
AC Output | AC Output1 AC Output2 Frequency Max | AC 230V Sine Wave 600W Peak 1000W AC230VSine Wave 600W Peak 1000W Sine Wave 600W Peak 1000W |
Wireless Charger | DC | 15W 5V3A |
LED Lighting | Power | Mode High light/Low Light/ SOS/Flash |
Weight | Net Weight 7.3Kg / Gross Weight 9Kg | |
Size | Length*Width*Height 295*202*241mm |
Circuit Protection | |||
No | Items | Parameter | Standard |
1 | Over-charging Protection | Protection Voltage | 4.25V |
Recovery voltage | 4.15V | ||
Protection delay time | 2s | ||
2 | Over-discharging Protection | Protection Voltage | 2.8V |
Recovery voltage | 3.0V | ||
Protection delay time | 2s | ||
3 | Over-current Protection | discharge over-current protection | 20A |
discharge over-current protection delay time | 1s | ||
4 | Short-circuit Protection | Recovery conditions | Recharge after short circuit release |
5 | Balanced loop | Balanced start voltage | 4.19V |
Balanced current | 127mA |
Why choose us?
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
