330W
205*155*165mm
4.5kgs

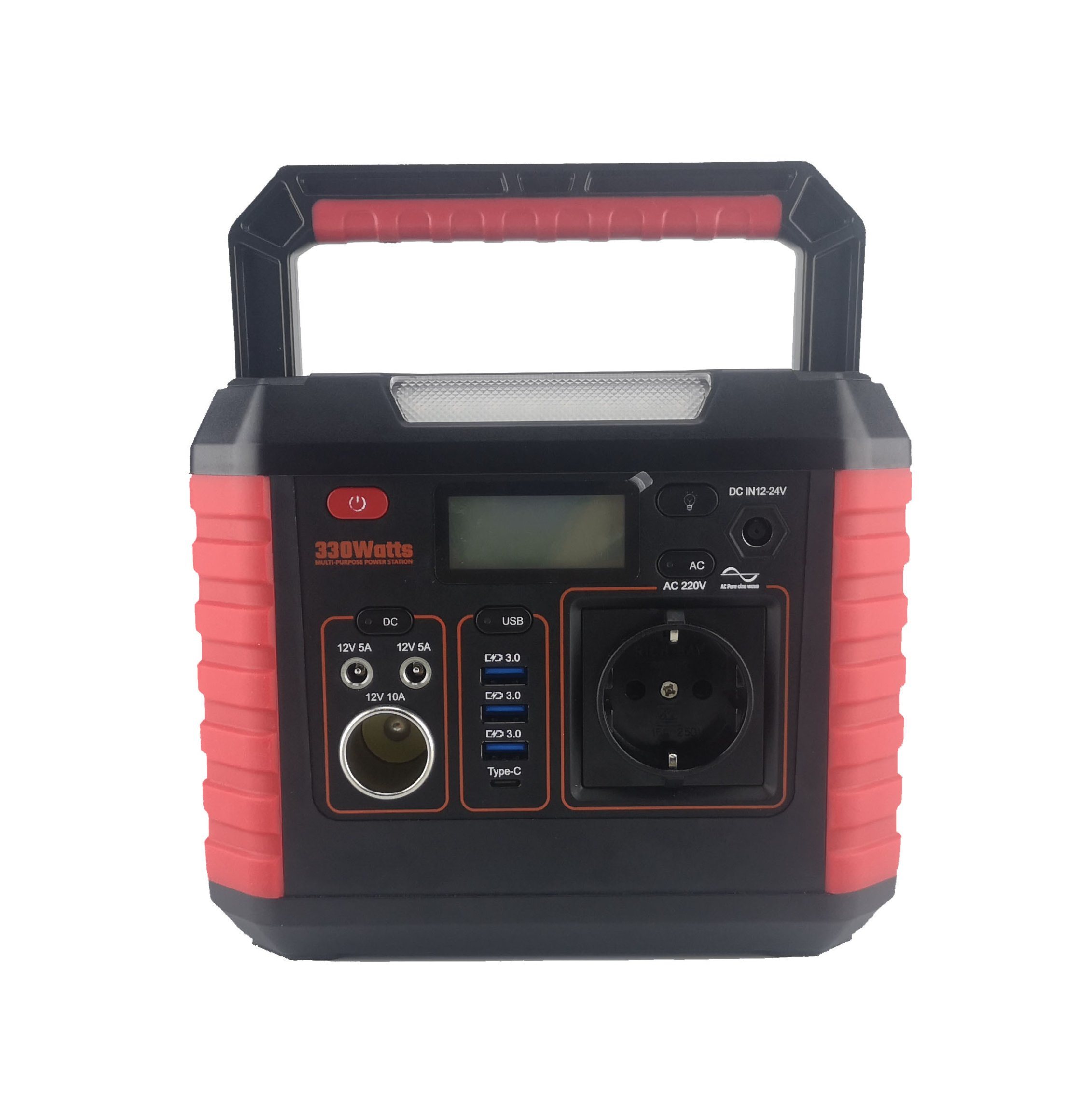

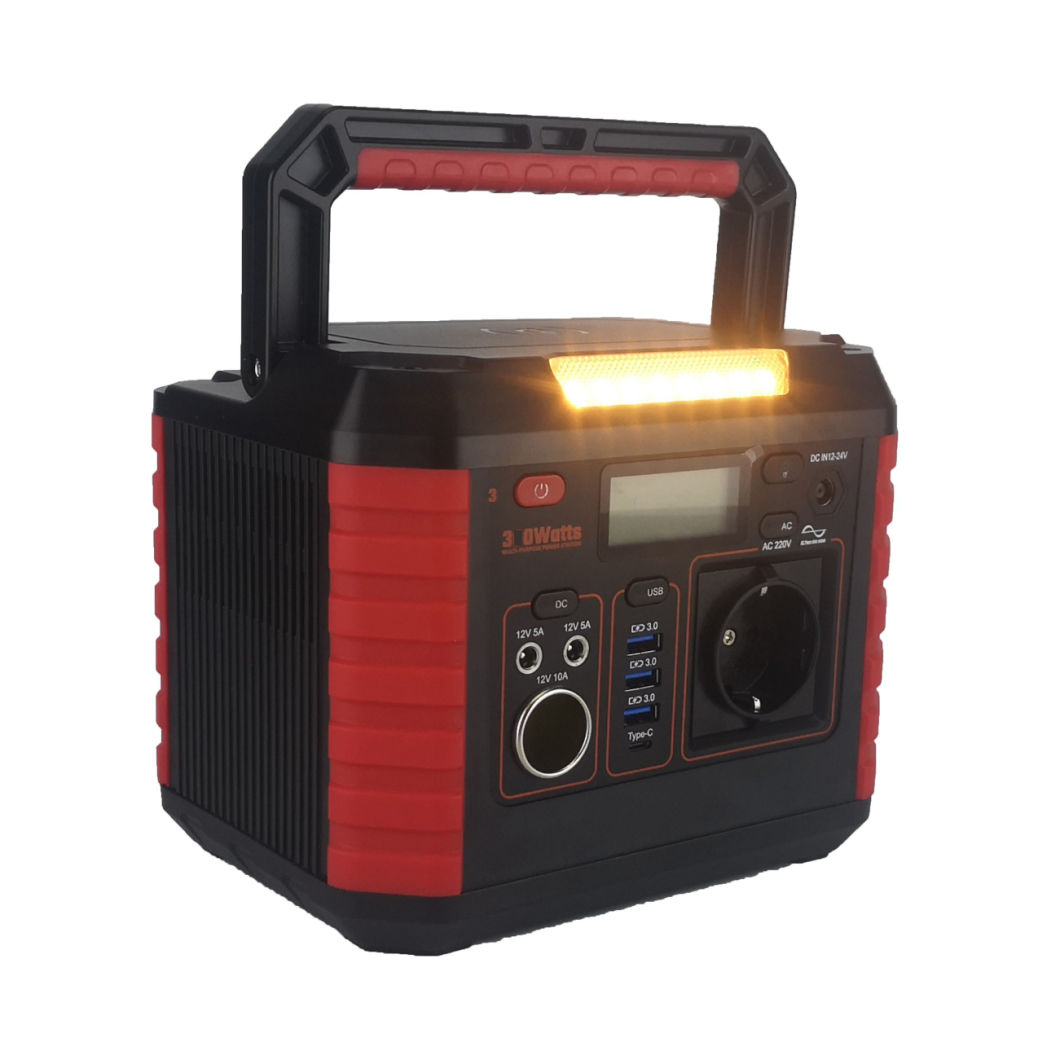

portable power station
Specification
| No | Items | Parameter | Standard |
| 1 | Model | AS330 | |
| 2 | Battery type | Li-ion 18650 cell | 3.7V/2600mAh |
| 3 | Rated Energy | 78000mAh&290Wh | |
| 4 | Min Energy | 290Wh | |
| 5 | Output | USB output port | 3*QC3.0 3*USB 5V3.1A 1* Type C 5V3A |
| USB output port working time | >25h | ||
| DC output port | 2*DC 9~ 12.6V±0.5V/5A | ||
| DC output port working time | >5h | ||
| AC output port | AC 220V 50Hz/AC110 60Hz 330W Pure Sine Wave(Universal socket) | ||
| Car output port | DC 12V/10A(120W max) | ||
| Car output port working time | >2.5h | ||

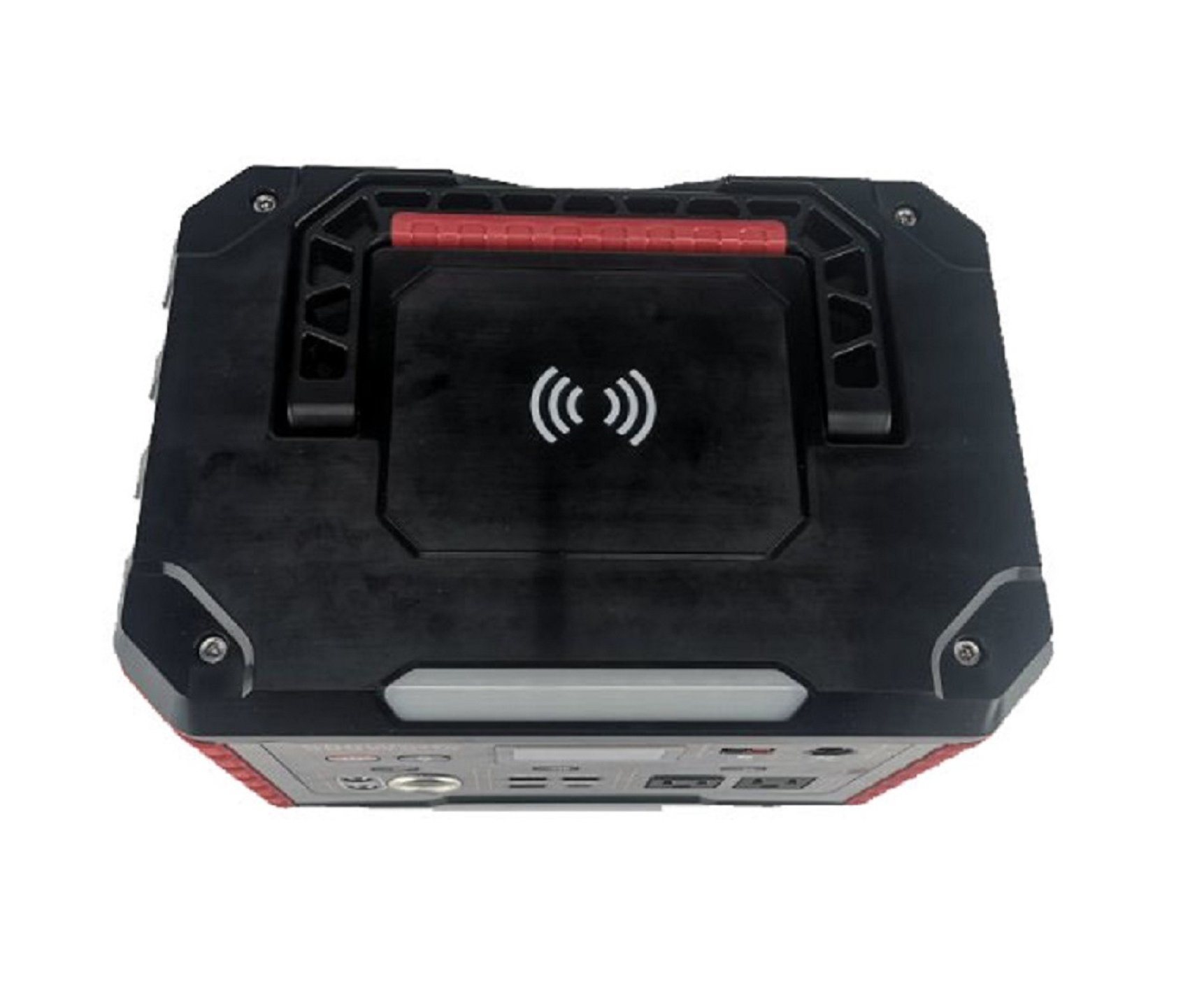

| Wireless Charging | 5V1A | ||
| Wireless ChargingReverse charging protection | Yes | ||
| 6 | Charging | Charging voltage | 12V/18V |
| Charging Current | 10A | ||
| Charging Time | About 8h | ||
| 7 | Self-consumption | On working | 200mA |
| On standby | 5mA | ||
| 8 | Dimension | L*W*H | 205x155x165mm |
| 9 | Weight | net weight | 3.22KG |
| 10 | Range of Working Temperature | Charging: | 10ºC~40ºC |
| Discharging: | 0ºC~75ºC | ||
| 11 | Range of Storage Temperature | Less than 1 year | -20ºC~+25ºC |
| Less than 3 months | -20ºC~+45ºC | ||
| Less than 1 month | -20ºC~+60ºC |
| Circuit Protection | |||
| No | Items | Parameter | Standard |
| 1 | Over-charging Protection | Protection Voltage | 4.25V |
| Recovery voltage | 4.15V | ||
| Protection delay time | 2s | ||
| 2 | Over-discharging Protection | Protection Voltage | 2.8V |
| Recovery voltage | 3.0V | ||
| Protection delay time | 2s | ||
| 3 | Over-current Protection | discharge over-current protection | 20A |
| discharge over-current protection delay time | 1s | ||
| 4 | Short-circuit Protection | Recovery conditions | Recharge after short circuit release |
| 5 | Balanced loop | Balanced start voltage | 4.19V |
| Balanced current | 127mA | ||
Customized logo
Functional Description:
AC output:
1.Press theAC outputbutton;
2.TheACoutput indicatorshowsblueandcan be loaded.If theindicatorisoffand the buzzer sounds,theAC outputis faulty.
DCoutput:Connect theload to DCportsdirectly.When thereis no load, theDCport isin the sleepstate.
Droneoutput:Connect the droneport to the dronechargerdirectlybypressing the positive and negativepoles.
DCinput:Connectthe chargingadapterandACsocketto the chargingportoftheportable 8 Lithium Battery Expert 15 Years power station for charging, the battery indicator shows the power when charging; disconnect all loads when charging;
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
