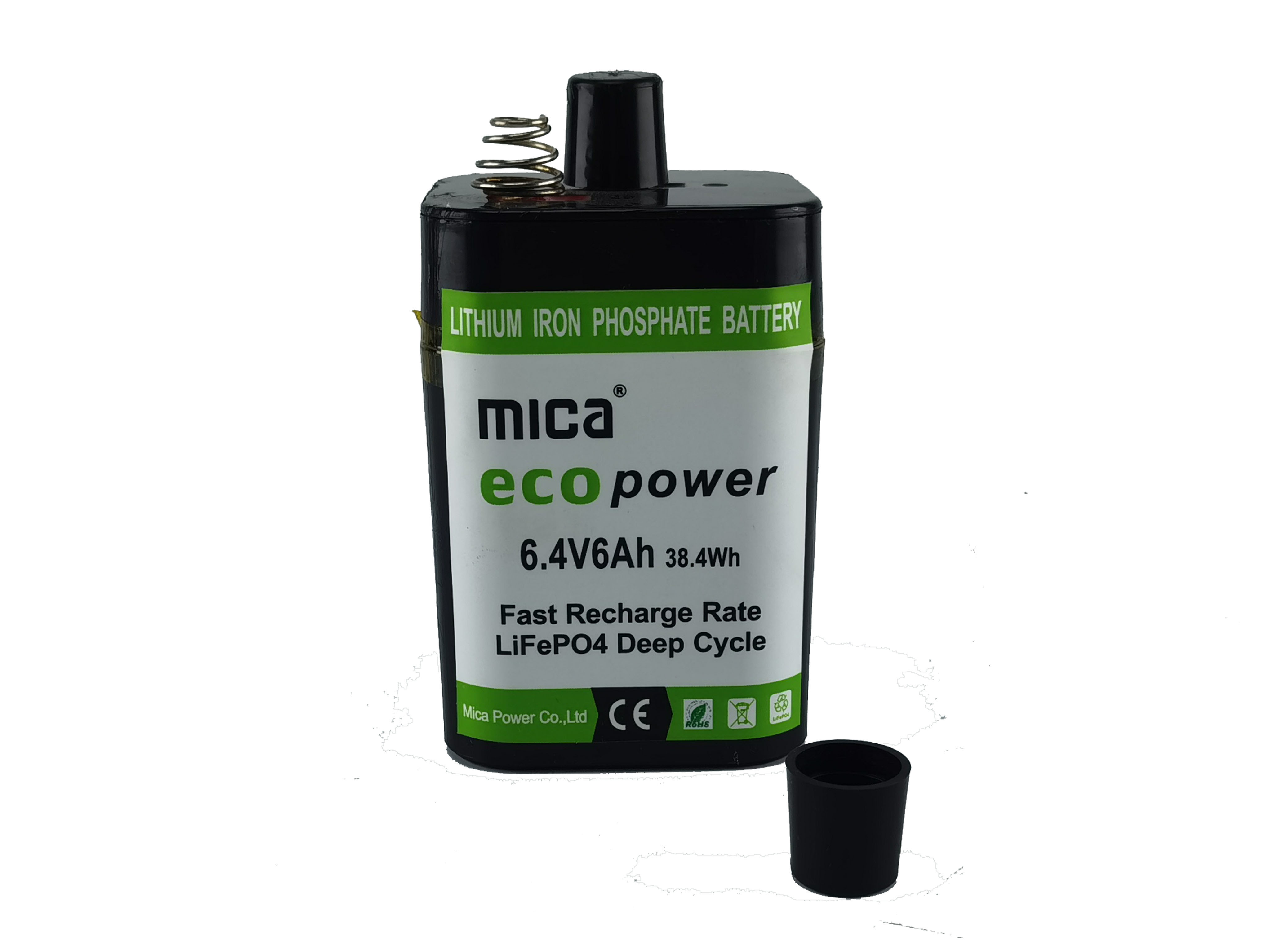

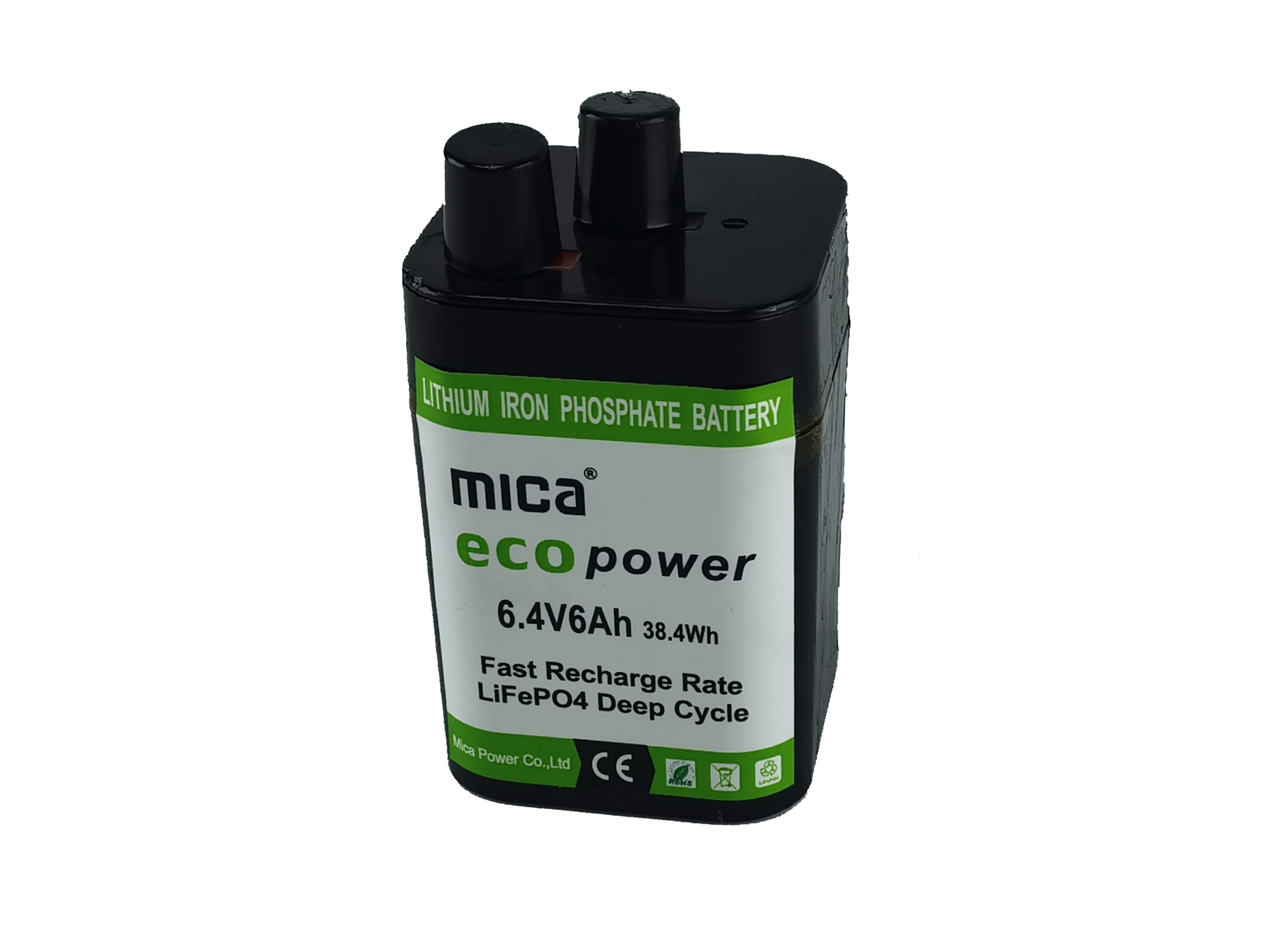

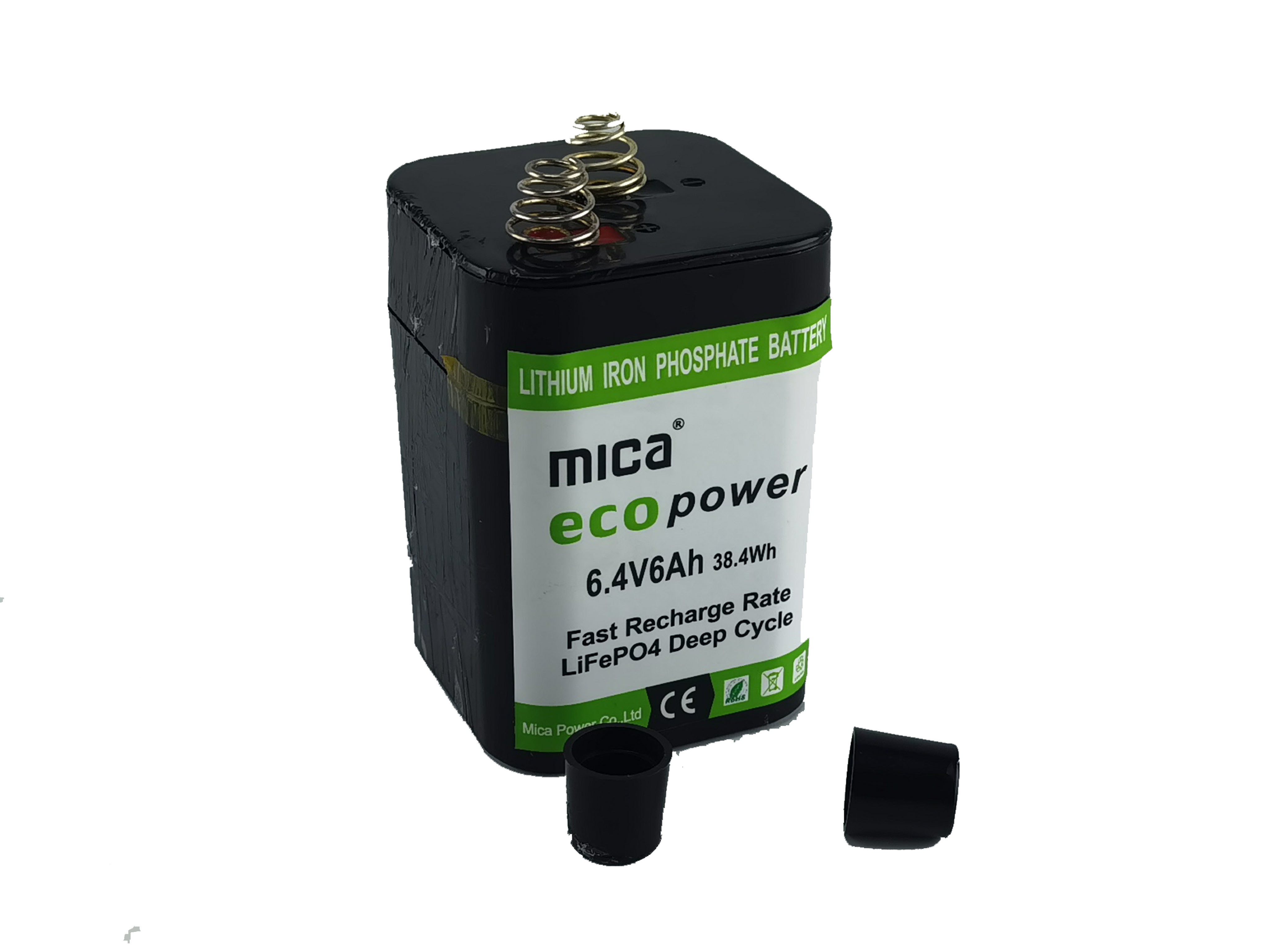

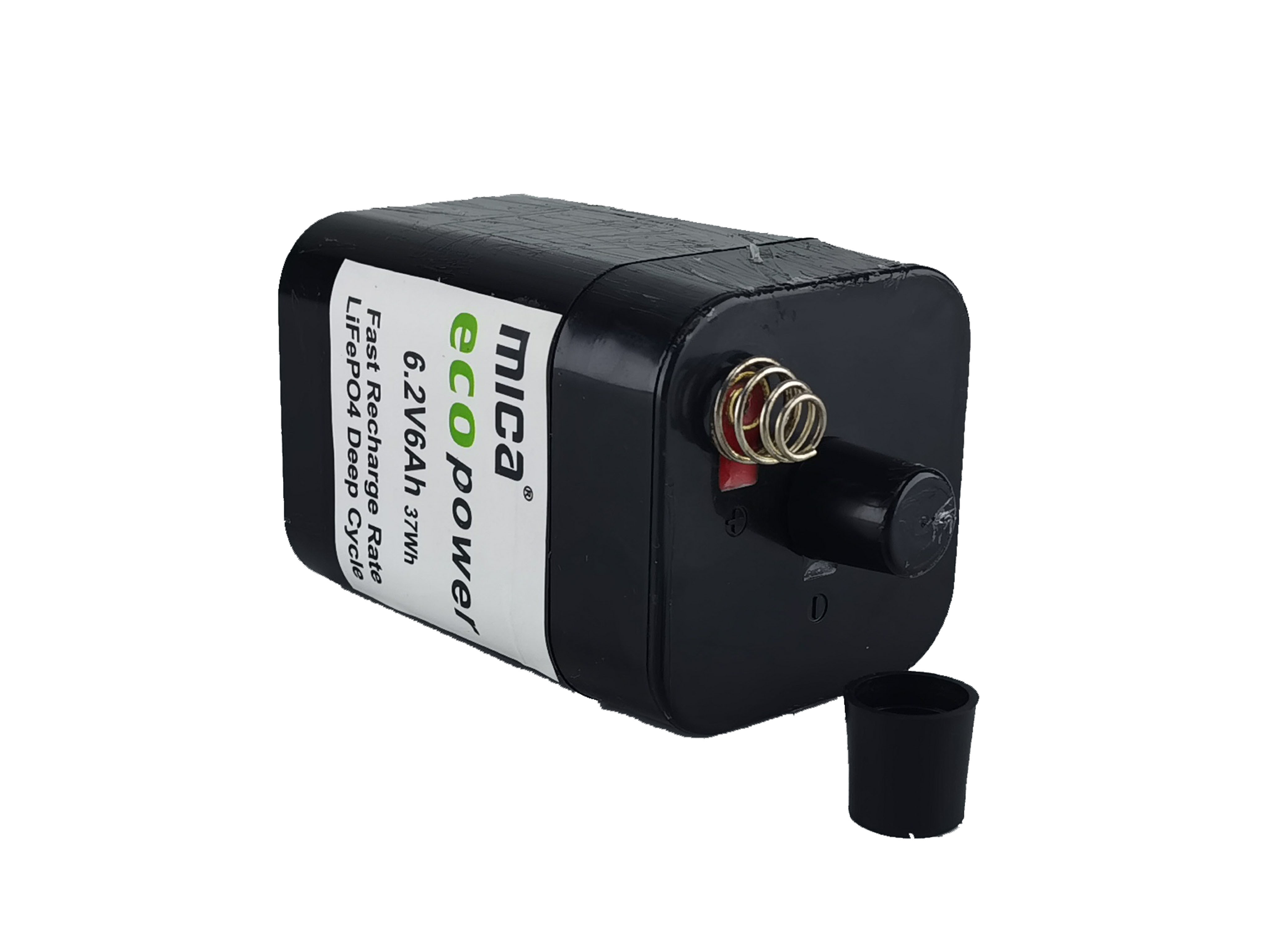

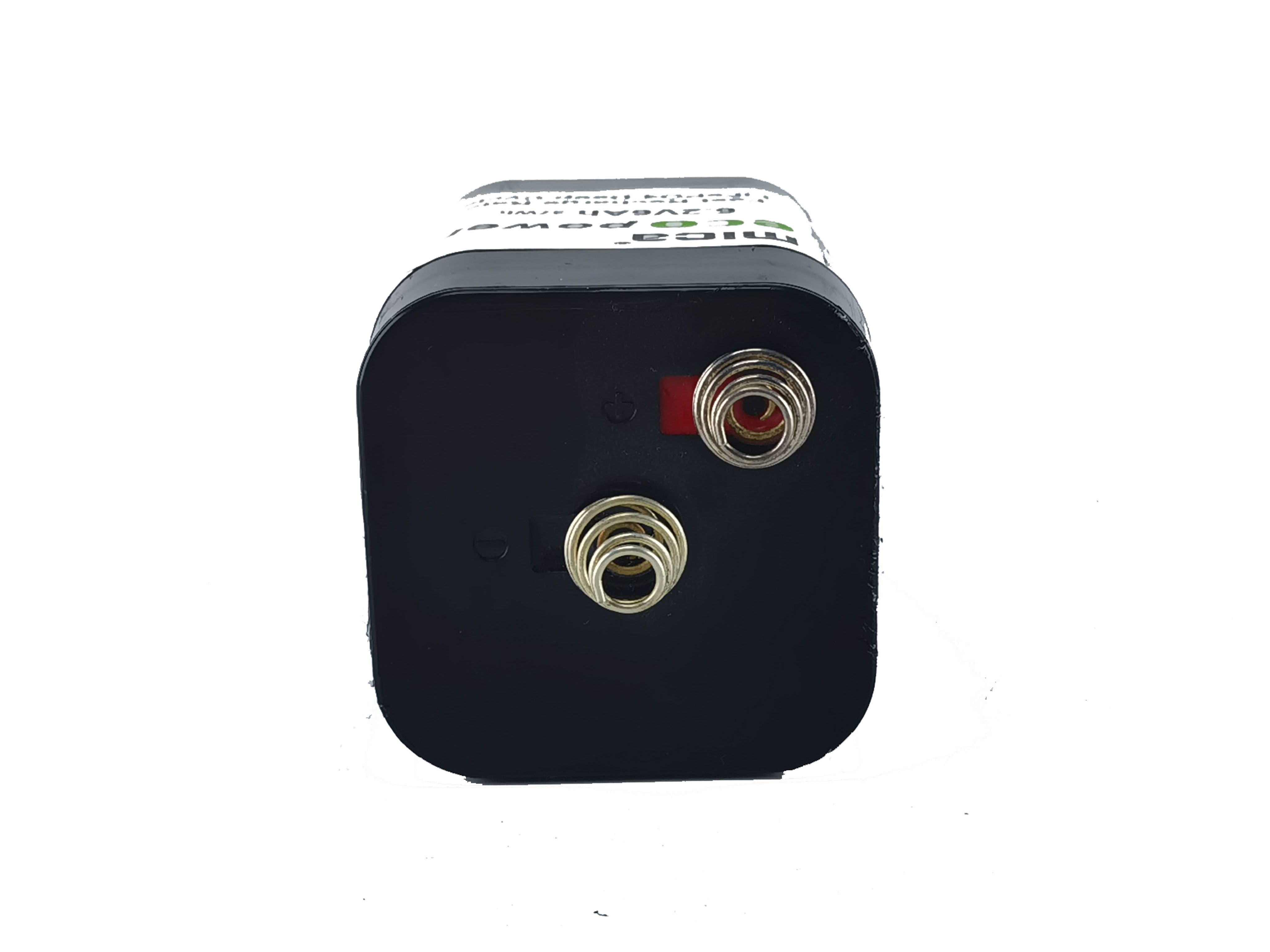

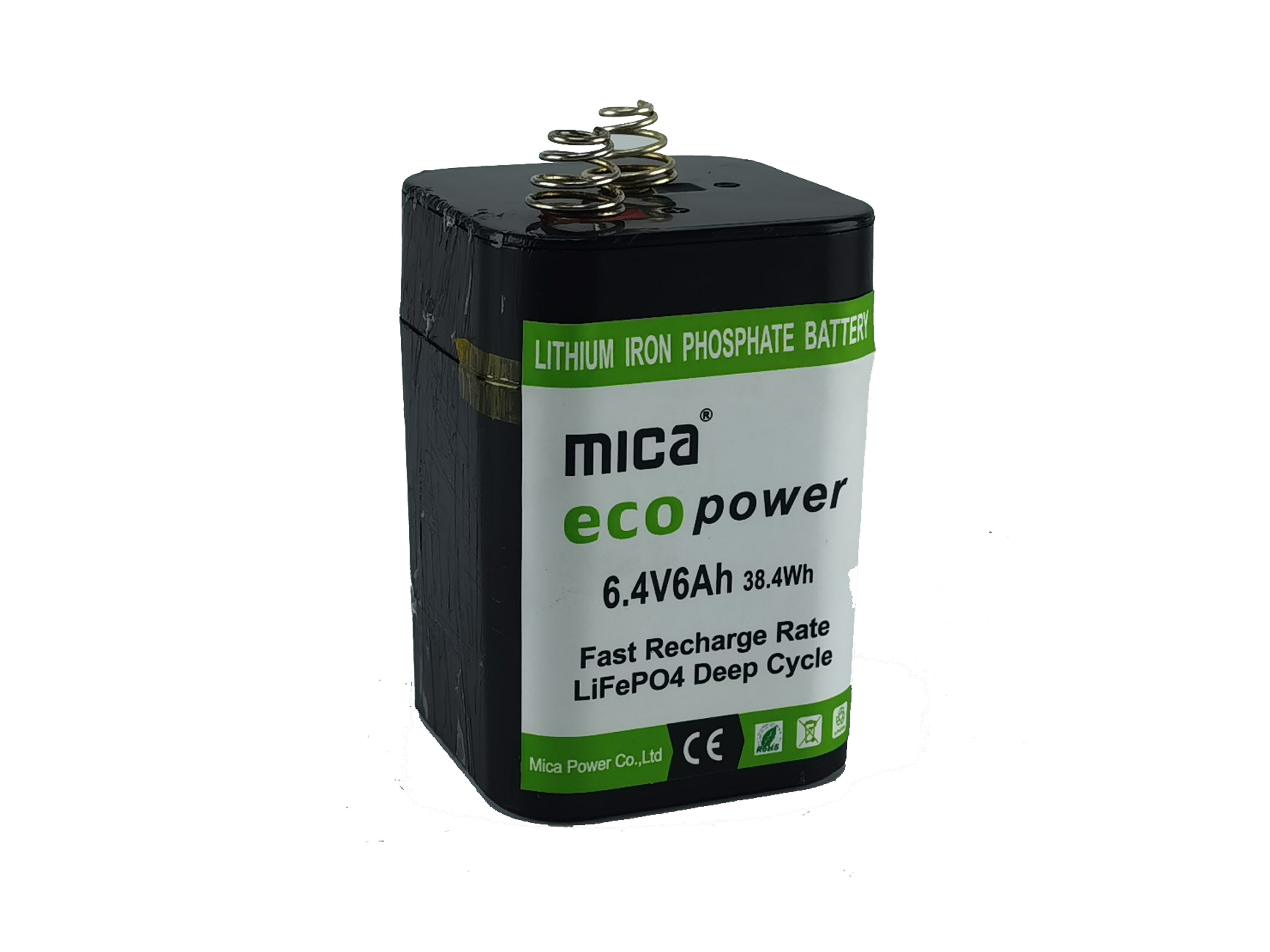

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Small
Battery
| Items | Parameter | |
| Battery model | MC-IFR6.4-6 | |
| Nominal voltage | 6.4V | |
| Minimum capacity | 6000mAh@25ºC | |
| Charging voltage | 7.3V | |
| Discharging cut-off voltage | 5.0V | |
| Standard charging | 0.2C /7.3V | |
| Max charging | 1.0C /7.3V | |
| Standard discharging | 1C/5.0V | |
| Max discharging | continuous discharge | 6A/5.0V |
| non-continuous discharge | 10A/5.0V | |
| Operation voltage | 5.0~7.3V | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Warranty | 1 year | |
