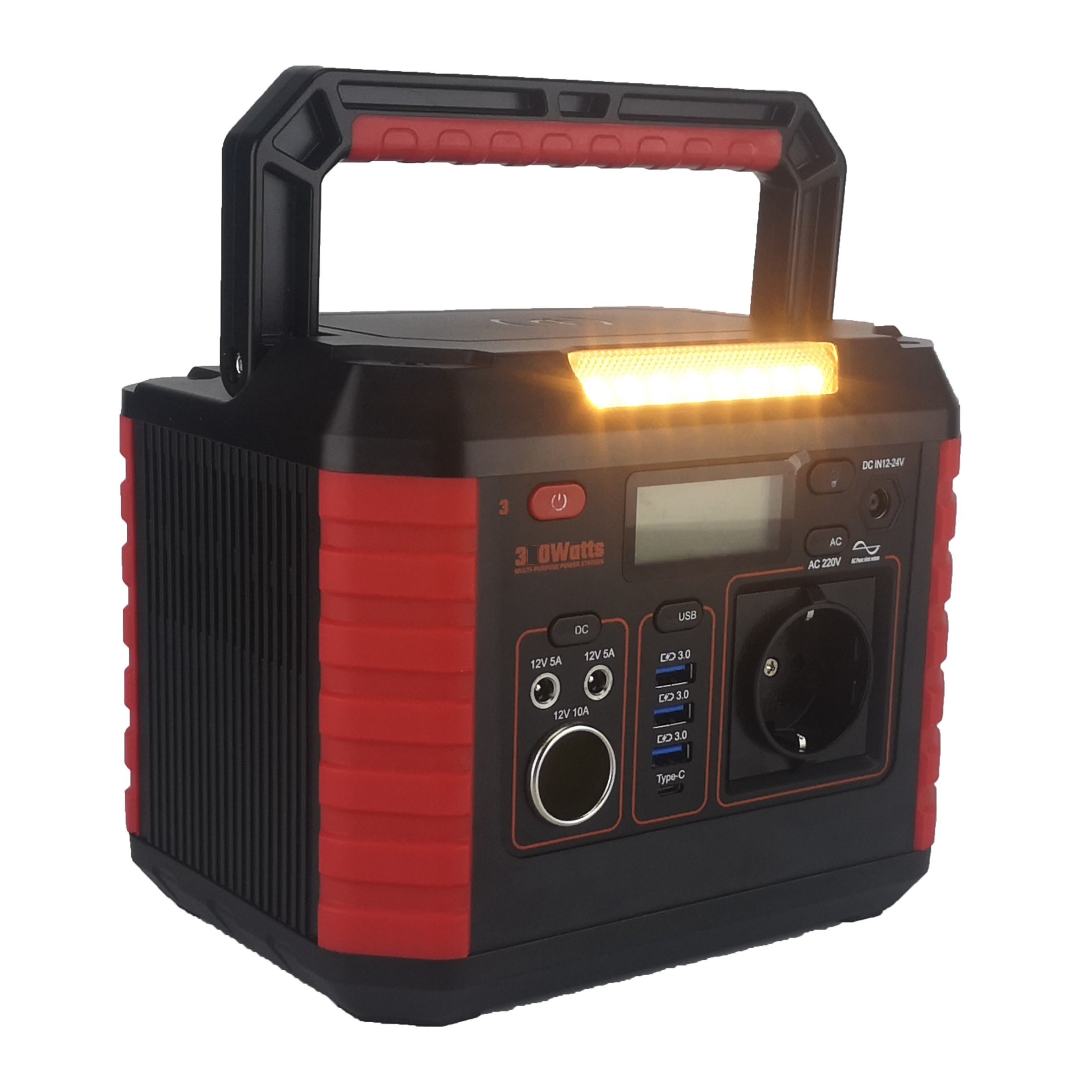

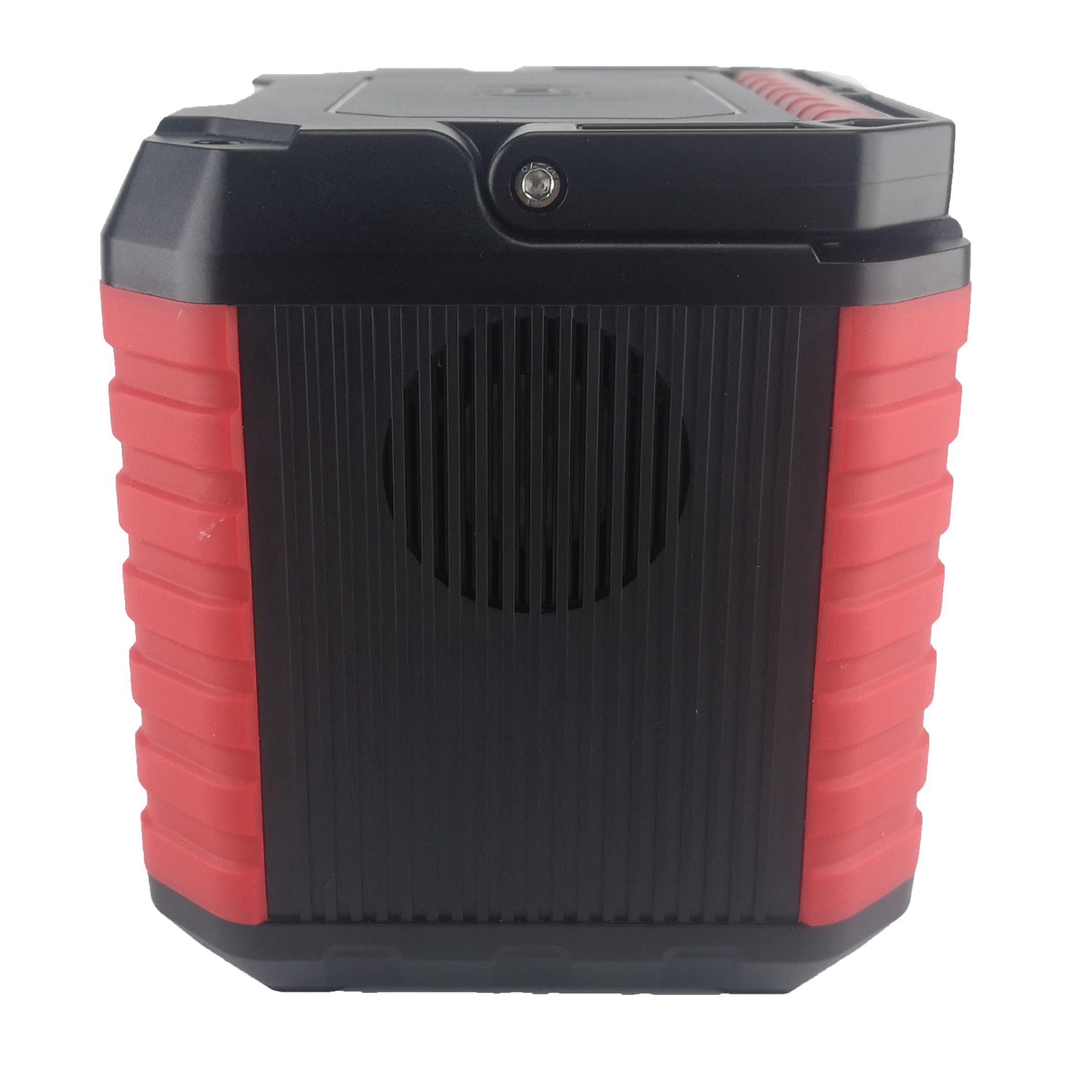

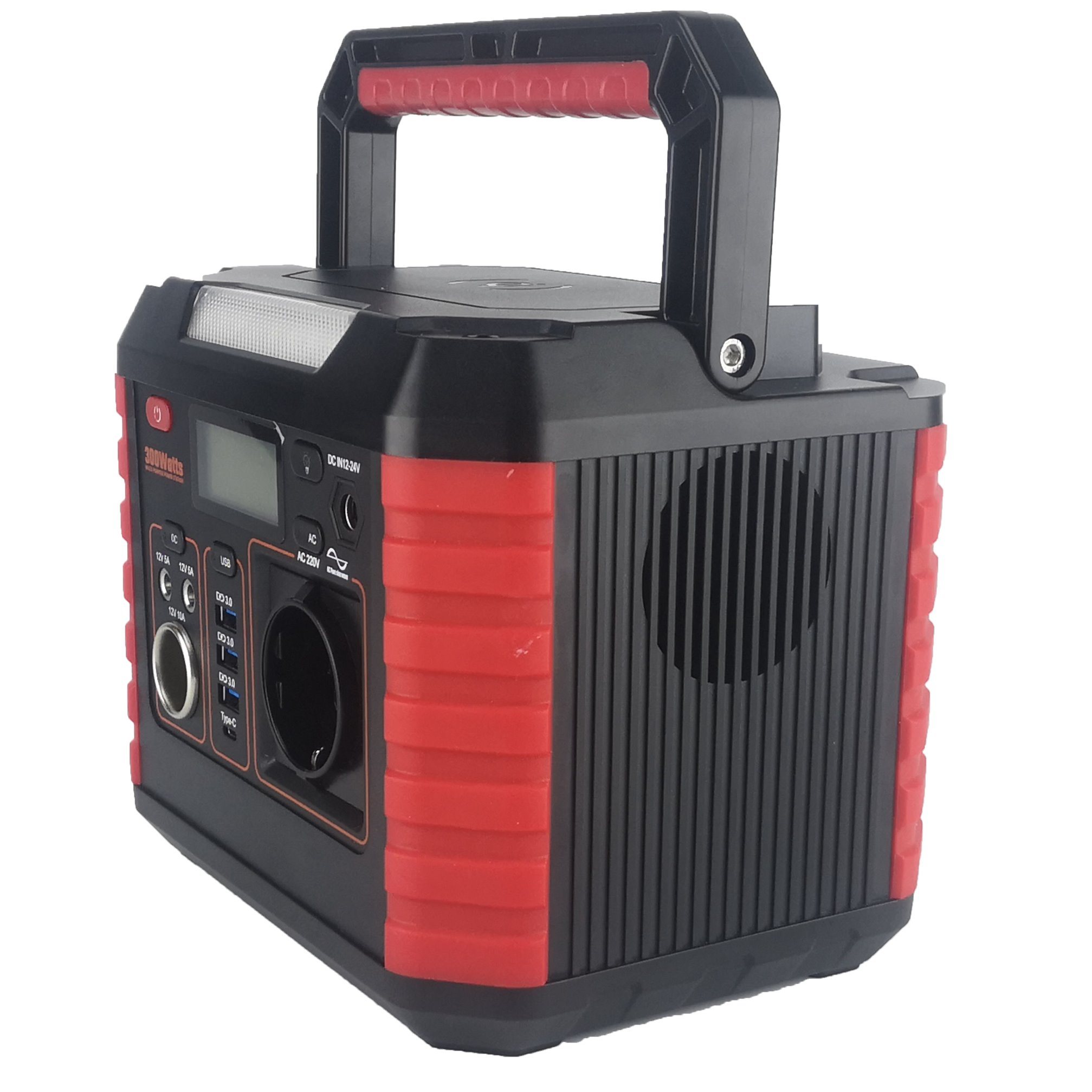

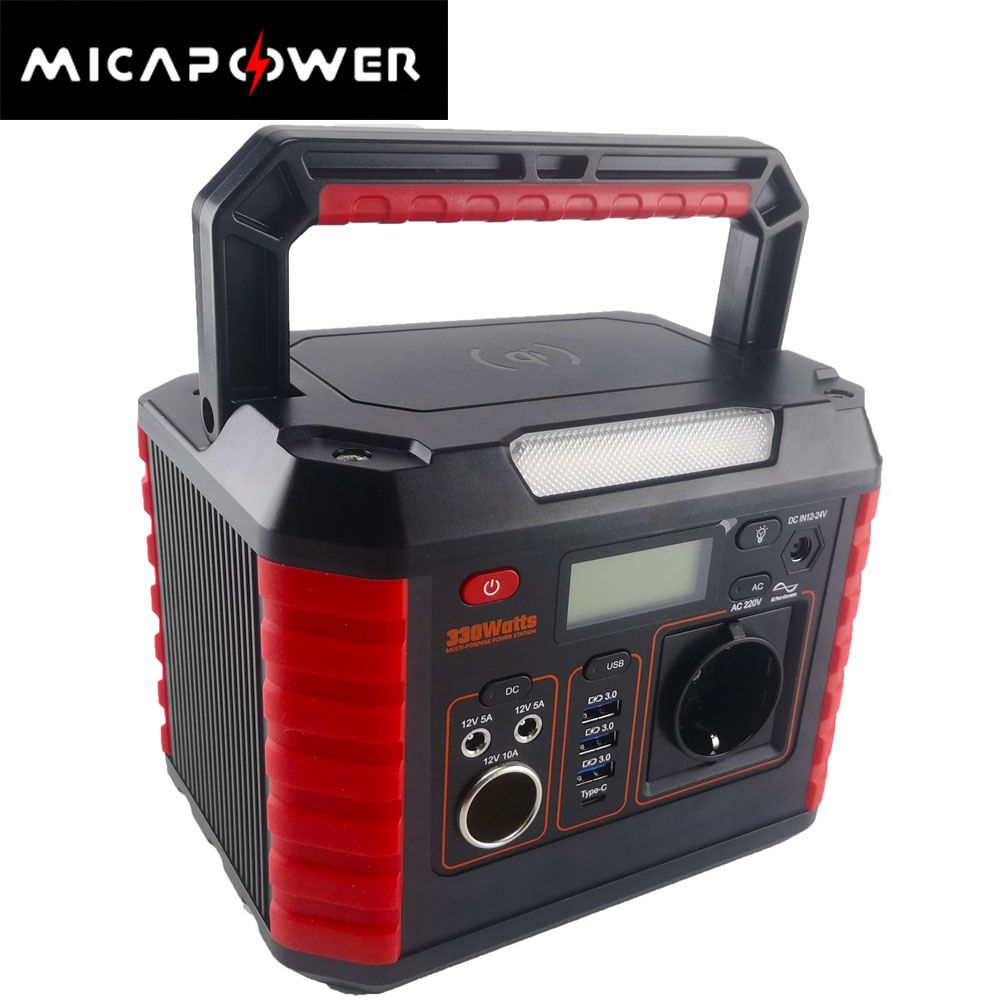

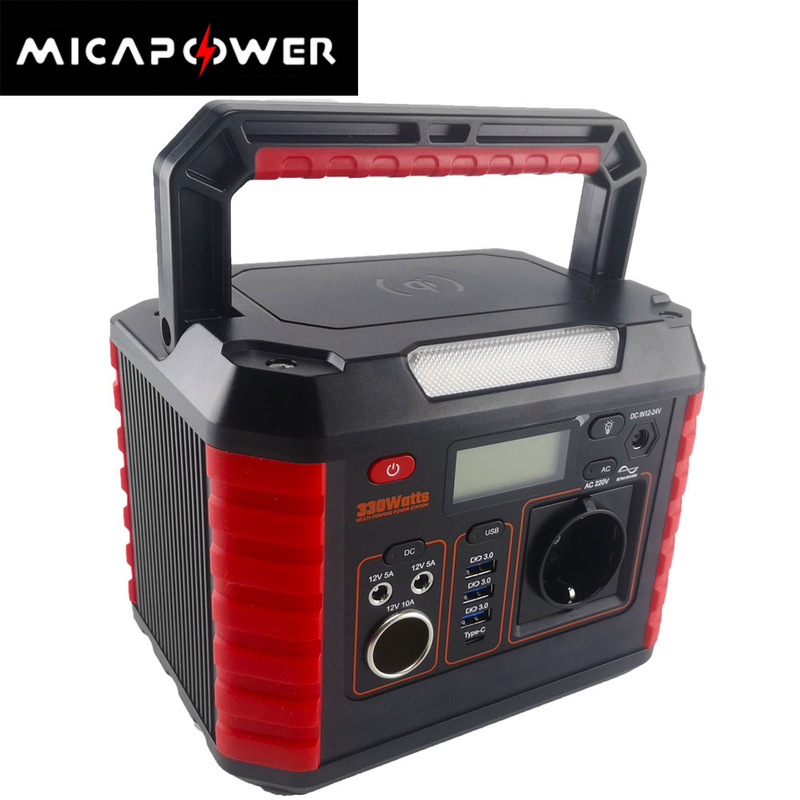

Factory Directly Supply 330W 78000mAh Portable Power Station with LCD Display AC DC USB for Camping Outdoor Emergency Travel

Share to:

Factory Directly Supply 330W 78000mAh Portable Power Station with LCD Display AC DC USB for Camping Outdoor Emergency Travel

Weight:
~3.22kg
Nomical Power:
330W
Battery Type:
Li-ion 18650 Cell

Availability:



Inquire Add to Basket

Product Description

No	Items	Parameter	Standard
1	Model	AS330
2	Battery type	Li-ion 18650 cell	3.7V/2600mAh
3	Rated Energy	78000mAh&290Wh
4	Min Energy	290Wh
5	Output	USB output port	3QC3.0 3USB 5V3.1A 1* Type C 5V3A
		USB output port working time	>25h
		DC output port	2*DC 9~ 12.6V±0.5V/5A
		DC output port working time	>5h
		AC output port	AC 220V 50Hz/AC110 60Hz 330W Pure Sine Wave(Universal socket)
		Car output port	DC 12V/10A(120W max)
		Car output port working time	>2.5h
		Wireless Charging	5V1A
		Wireless ChargingReverse charging protection	Yes
6	Charging	Charging voltage	12V/18V
		Charging Current	10A
		Charging Time	About 8h
7	Self-consumption	On working	200mA
7	Self-consumption	On standby	5mA
8	Dimension	LWH	205x155x165mm
9	Weight	net weight	3.22KG
10	Range of Working Temperature	Charging:	10ºC~40ºC
10	Range of Working Temperature	Discharging:	0ºC~75ºC
11	Range of Storage Temperature	Less than 1 year	-20ºC~+25ºC
		Less than 3 months	-20ºC~+45ºC
		Less than 1 month	-20ºC~+60ºC

Circuit Protection
No	Items	Parameter	Standard
1	Over-charging Protection	Protection Voltage	4.25V
		Recovery voltage	4.15V
		Protection delay time	2s
2	Over-discharging Protection	Protection Voltage	2.8V
		Recovery voltage	3.0V
		Protection delay time	2s
3	Over-current Protection	discharge over-current protection	20A
3	Over-current Protection	discharge over-current protection delay time	1s
4	Short-circuit Protection	Recovery conditions	Recharge after short circuit release
5	Balanced loop	Balanced start voltage	4.19V
5	Balanced loop	Balanced current	127mA

Factory Directly Supply 330W 78000mAh Portable Power Station with LCD Display AC DC USB for Camping Outdoor Emergency Travel

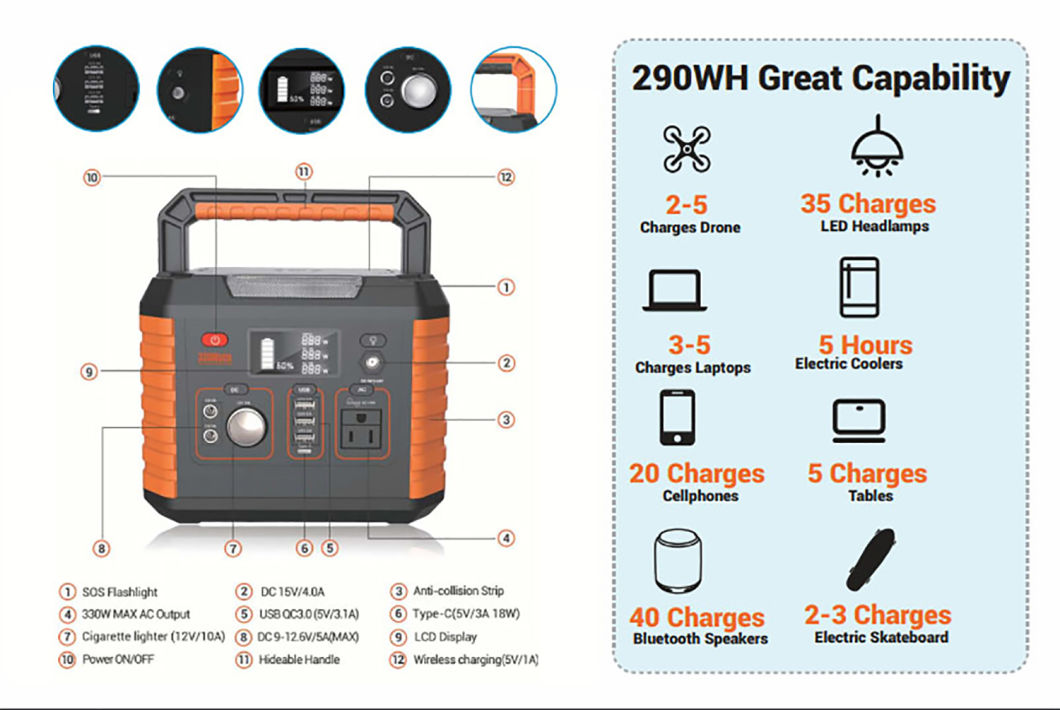

Functional Description:
AC output:

(1)Press the AC output button;

(2)The AC output indicator shows blue and can be loaded. If the indicator is off and the buzzer sounds, the AC output is

faulty.

DC output: connect the load to DC ports directly. When there is no load, the DC port is in the sleep state.
Drone output: connect the drone port to the drone charger directly by pressing the positive and negative poles.
DC input: connect the charging adapter and AC socket to the charging port of the portable 8 Lithium Battery Expert 15 Years power station for charging, the battery indicator shows the power when charging; disconnect all loads when charging;

Performance Test:

1.Standard test conditions

The test product must be a new product that has not been shipped for more than one month and the battery has not been cycle charge and discharge more than 5 times. Unless otherwise specified, the tests in this specification shall be under the following

conditions:Temperature:23ºC±2ºC;

Relative humidity:45%~85%RH;

Atmospheric pressure:86kPa~106kPa;

2.Measurement Apparatus

(1)Dimension Measuring Instrument
The dimension measuring shall be implemented by instruments with equal or more precision scale of 0.01mm;
(2)Voltmeter Standard class specified in the national standard or more sensitive class having inner 7 Lithium Battery Expert 15 Years impedance not less than 10kΩ /V

(3)Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω\
(4)The resistance test method is the AC impedance method (AC 1kHz LCR)

The resistance is not a constant value and varies with temperature and saturation of the state of charge, and related to length and capacity of the cable.

(5)All testing equipment and measuring instruments must be inspected by the certification institutes;

(6)Battery test system current accuracy should be within ±0.1%, constant pressure accuracy within ±0.5%, timing accuracy within ±0.1%;
(7)The temperature measuring instrument should not be lower than ±0.5°C;

Factory Directly Supply 330W 78000mAh Portable Power Station with LCD Display AC DC USB for Camping Outdoor Emergency Travel
