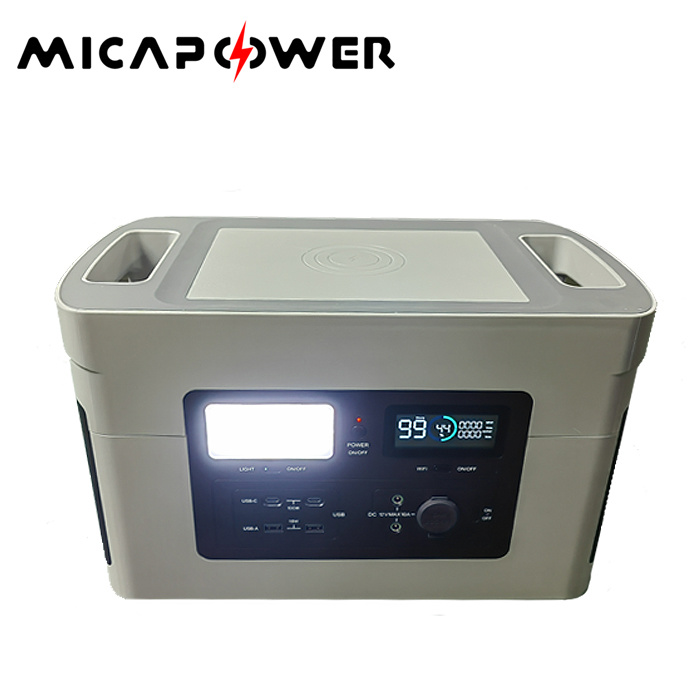

933wh
421*241*265mm
18.5kg
3 Years
150W Max, AC 100-240V (50Hz/60Hz), DC 24V, 6.25A
12~100V 400W Max Charger
Availability: | |
---|---|
Battery | Capacity | Lifepo4 25.6V 40Ah1024Wh |
AC Input | AC230V Charging | 230ah |
PV Input | 12~100V 400W max Charger | |
USB / Output | USB1 Output USB2 Output TYPE C1 Output TYPE C2 Output | QC3.018W 5V3A/9V2A/12V1.5A QC3.0 18W 5V3A/9V2A/12V1.5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A |
DC Output | DC1 OUTPUT DC2 Output Cigarette lighter Output | 12V8A 12V8A 12V8A |
AC Output | AC Output1 AC Output2 AC Output3 | AC 230V Sine Wave 1000W Peak 1800W AC 230V Sine Wave 1000W Peak 1800W AC 230V Sine Wave 1000W Peak 1800W Sine Wave 1000W Peak 1800W |
Wireless Charger | DC | 15W 5V 3A |
LED Lighting | Power | Mode High light/Low Light/SOS/ Flash |
Weight | Net Weight 15.8Kg / Gross Weight 18.5Kg | |
Size | Length * Width * Height 421*241*265mm |
Circuit Protection | |||
No | Items | Parameter | Standard |
| Over-charging Protection | Protection Voltage | 4.25V |
Recovery voltage | 4.15V | ||
Protection delay time | 2s | ||
2 | Over-discharging Protection | Protection Voltage | 2.8V |
Recovery voltage | 3.0V | ||
Protection delay time | 2s | ||
3 | Over-current Protection | discharge over-current protection | 20A |
discharge over-current protection delay time | 1s | ||
4 | Short-circuit Protection | Recovery conditions | Recharge after short circuit release |
5 | Balanced loop | Balanced start voltage | 4.19V |
Balanced current | 127mA |

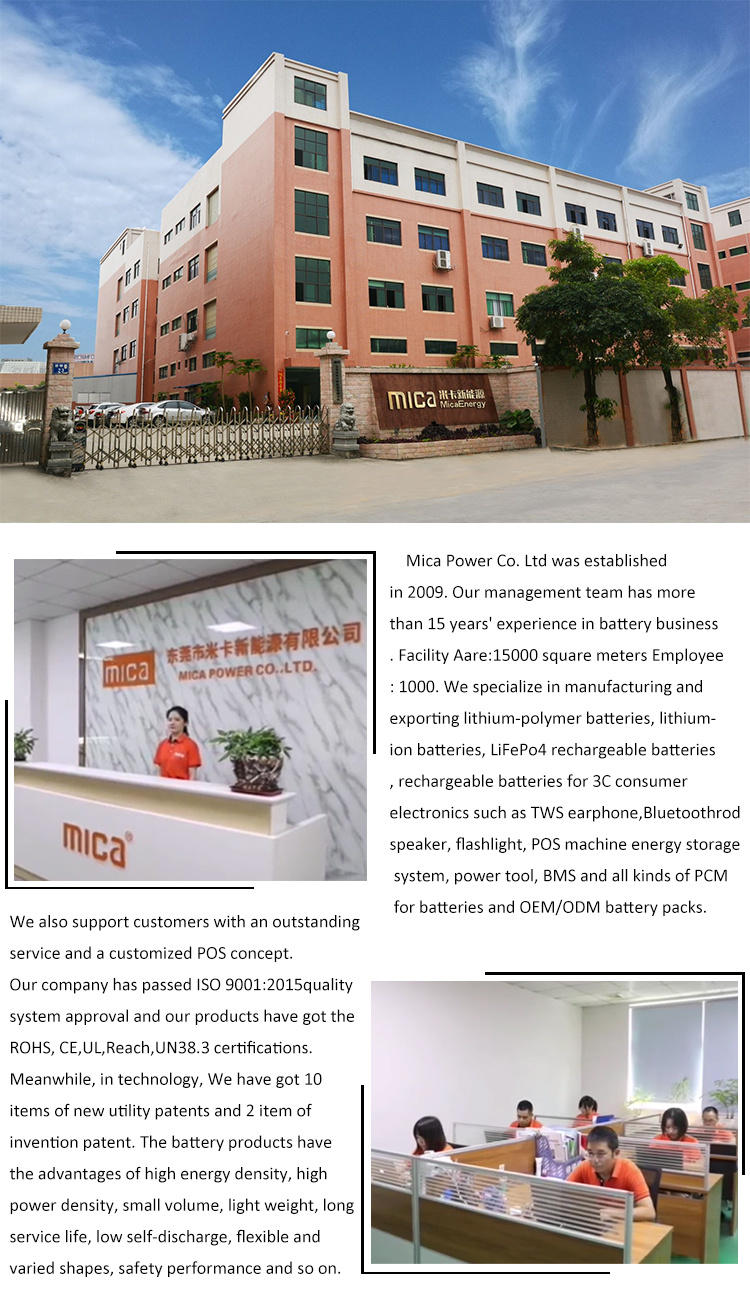

Why choose us
We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and so on.
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
