Single Phase
Standby
Overvoltage
Outdoors
Lighting/Power
Long-acting Machine
| No | Items | Parameter | Standard |

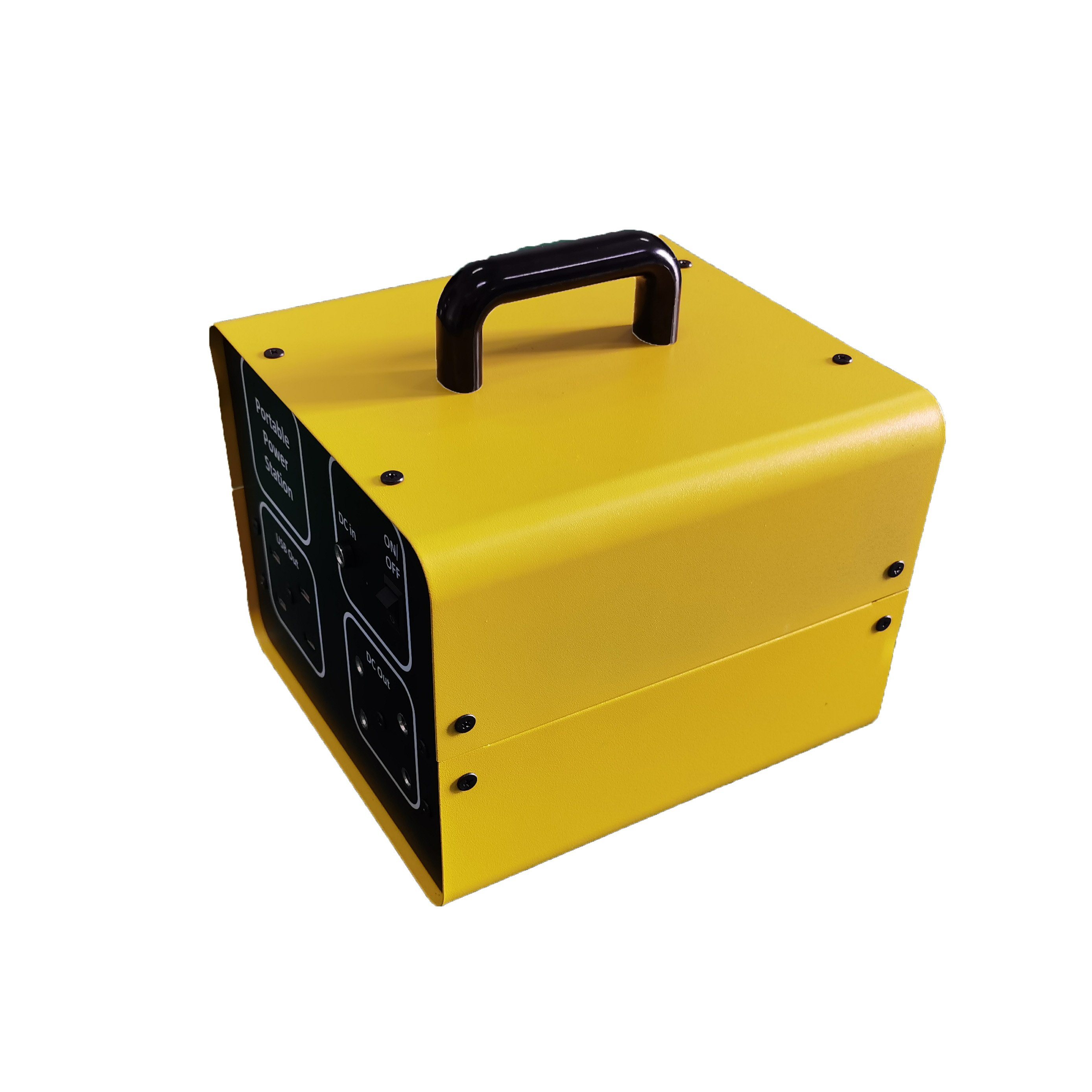

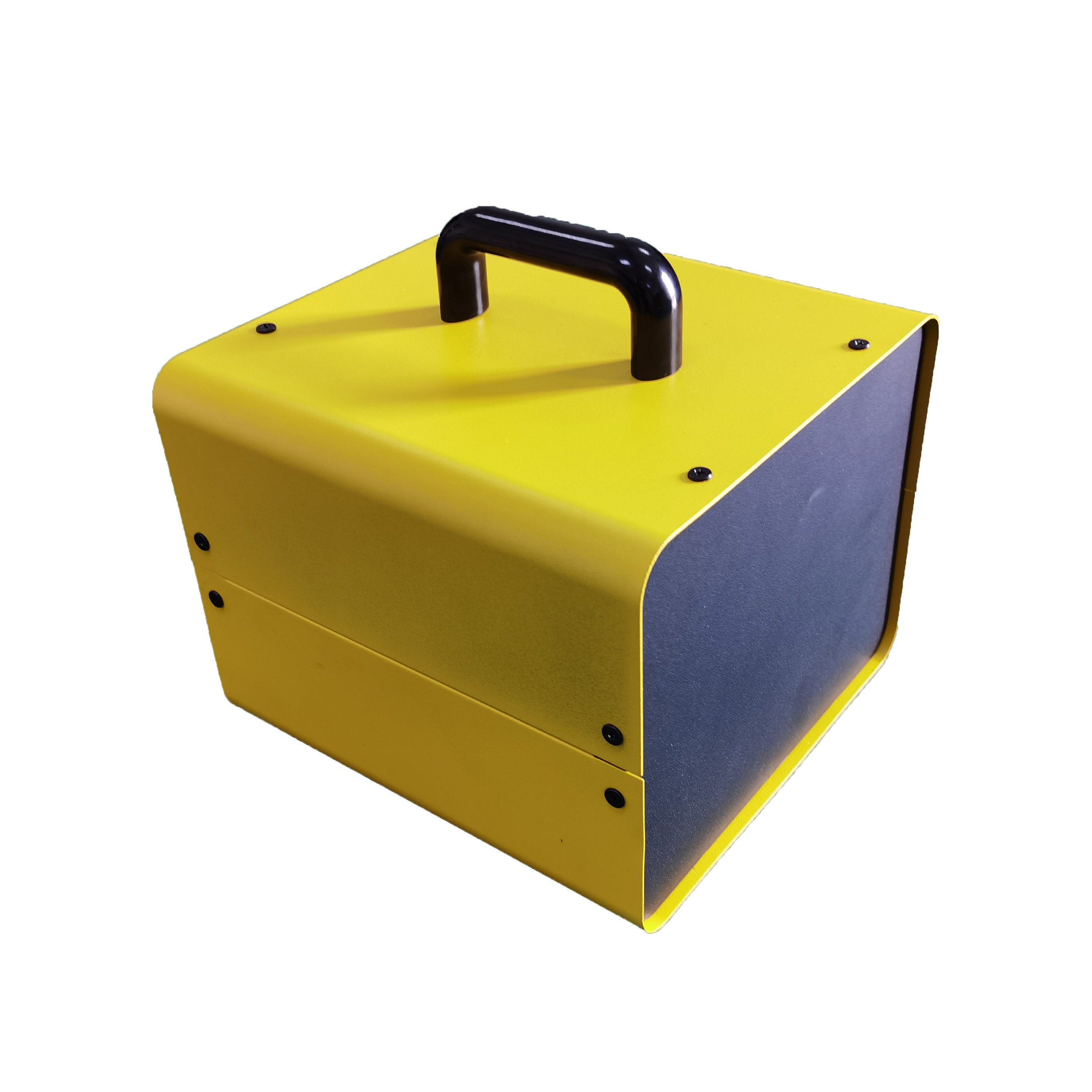

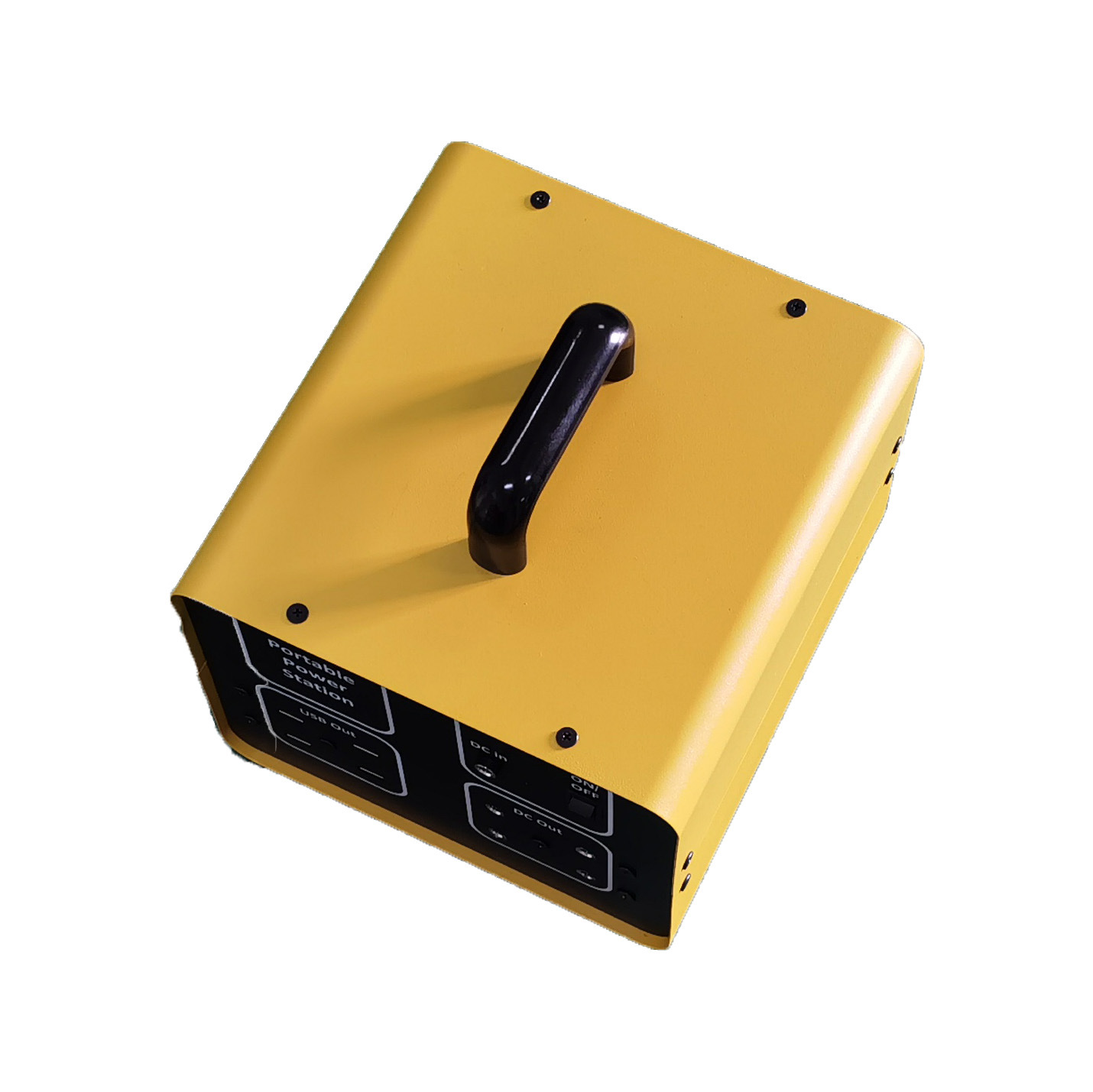

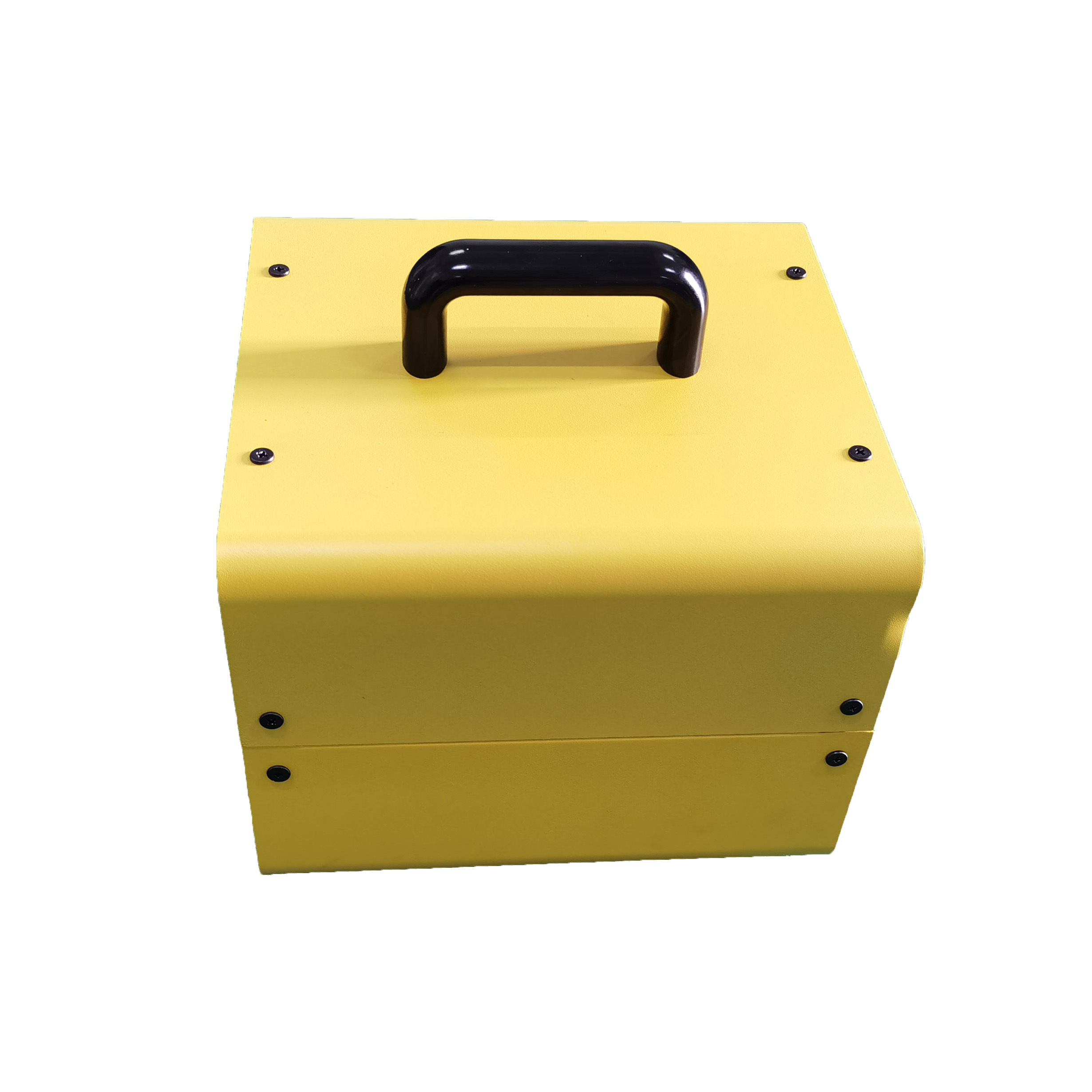

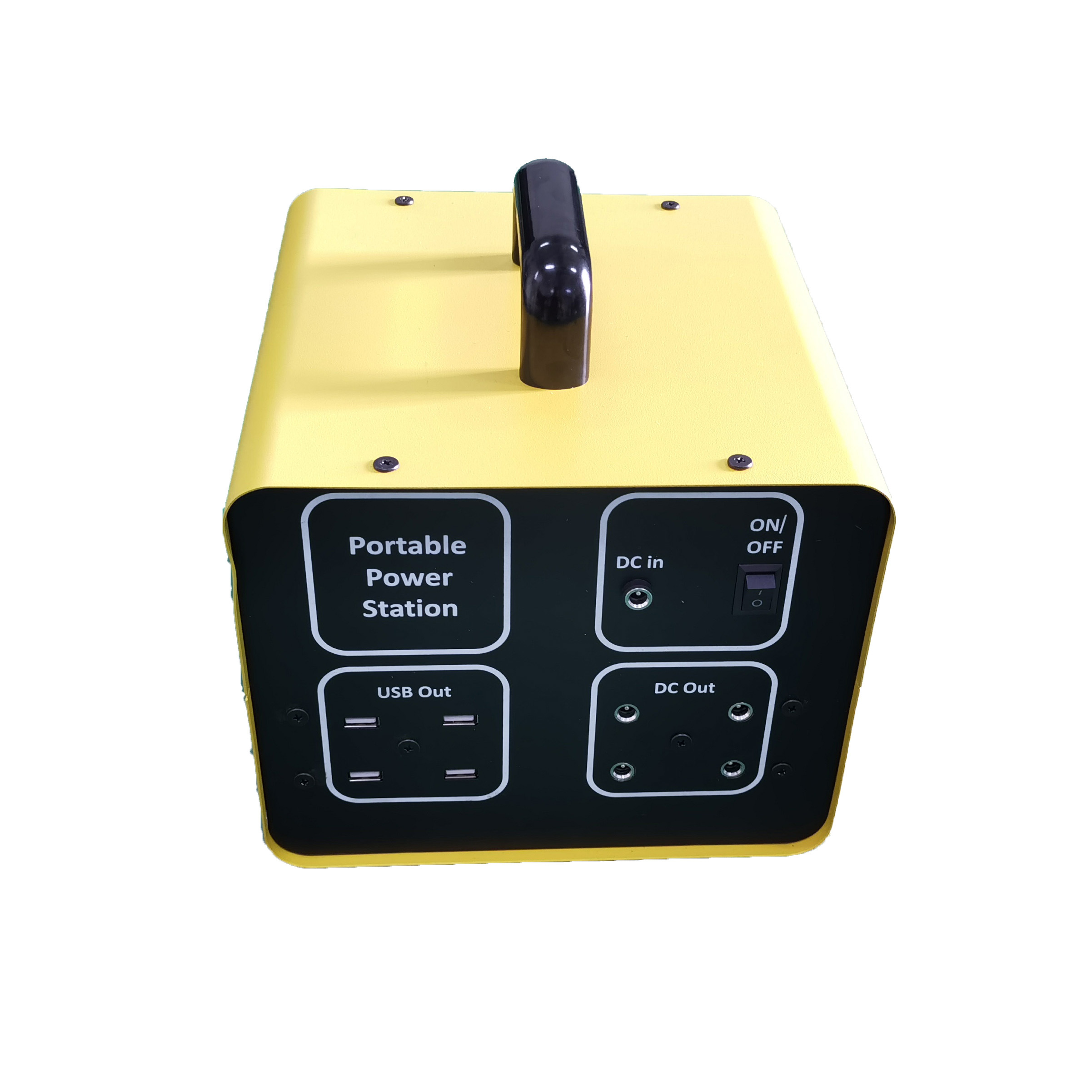

| 1 | Model | EX300 | |
| 2 | Battery type | Li-ion 18650 cell | 12v 24Ah |
| 3 | Rated Capacity | 307.2Wh | |
| 4 | Min Capacity | 300Wh | |

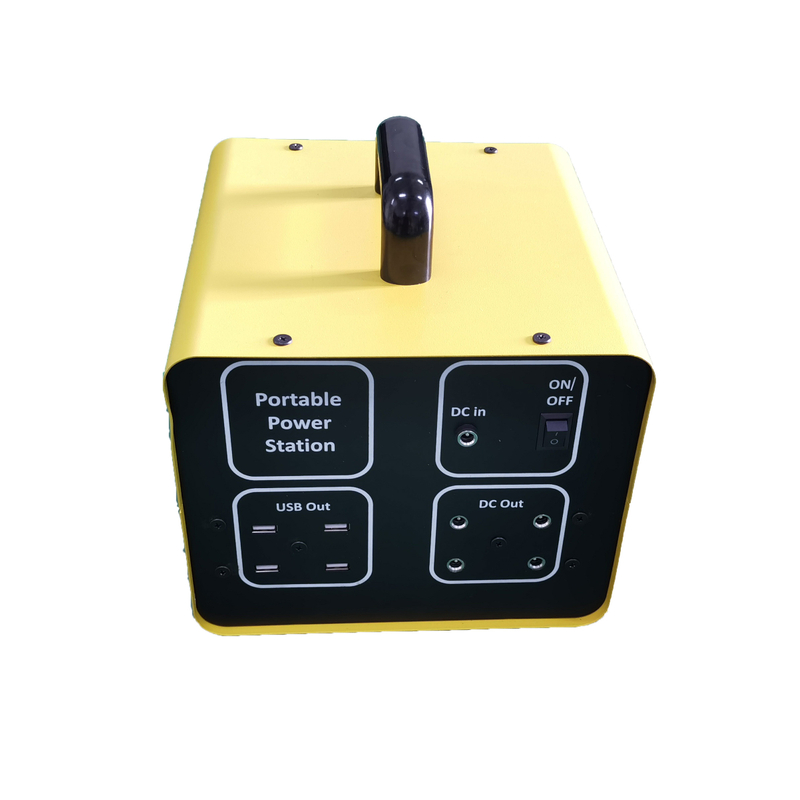

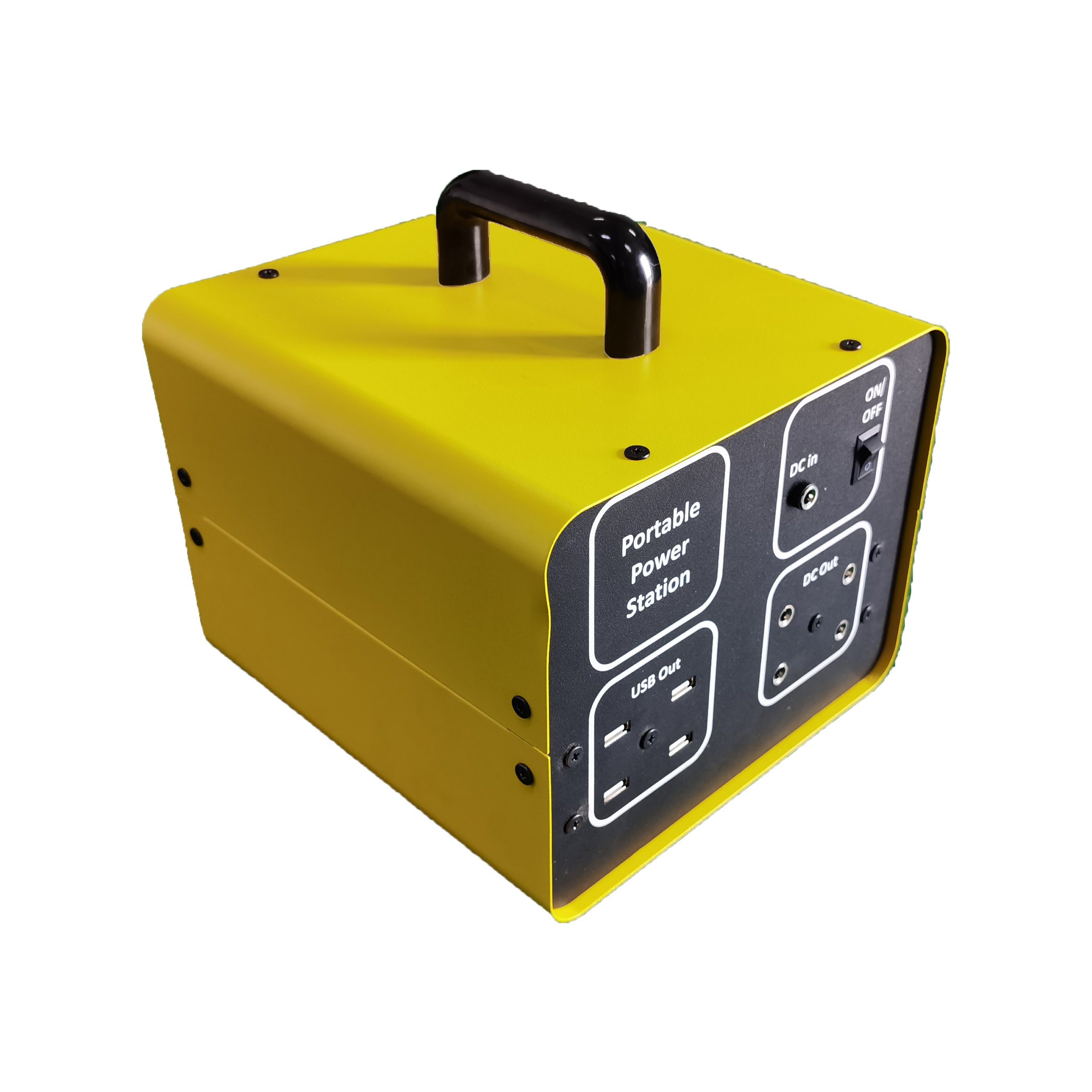

| 5 | Output | USB output port | 5V 3A *4 |
| USB output port working time | >25h | ||
| DC output port | 12V 1A *4 | ||
| DC output port working time | >5h | ||
| AC output port | AC 220V 50Hz/AC110 60HzPure Sine Wave (Universal socket) | ||
| AC output power | 100W | ||
| Expandable Energy | 1KWH | ||
| solar panel PV | 30W~80W | ||
| Reverse charging protection | Yes | ||
6 | Charging | Charging voltage | 16.8V |
| Charging Current | 2A | ||
| Charging Time | About 10h | ||
| 7 | Self-consumption | On working | 200mA |
| On standby | 5mA | ||
| 8 | Dimensions | L*W*H | 220*210*170mm |
| 9 | Weight | net weight | 4KG |
| 10 | Range of Working Temperature | Charging: | 10ºC~40ºC |
| Discharging: | 0ºC~75ºC | ||
| 11 | Range of Storage Temperature | Less than 1 year | -20ºC~+25ºC |
| Less than 3 months | -20ºC~+45ºC | ||
| Less than 1 month | -20ºC~+60ºC |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2,Q: Do you have any protection for battery pack?
A: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
