1000W
10W
14V/8A
Availability: | |
---|---|
Customized logo
No | Items | Parameter | Standard |

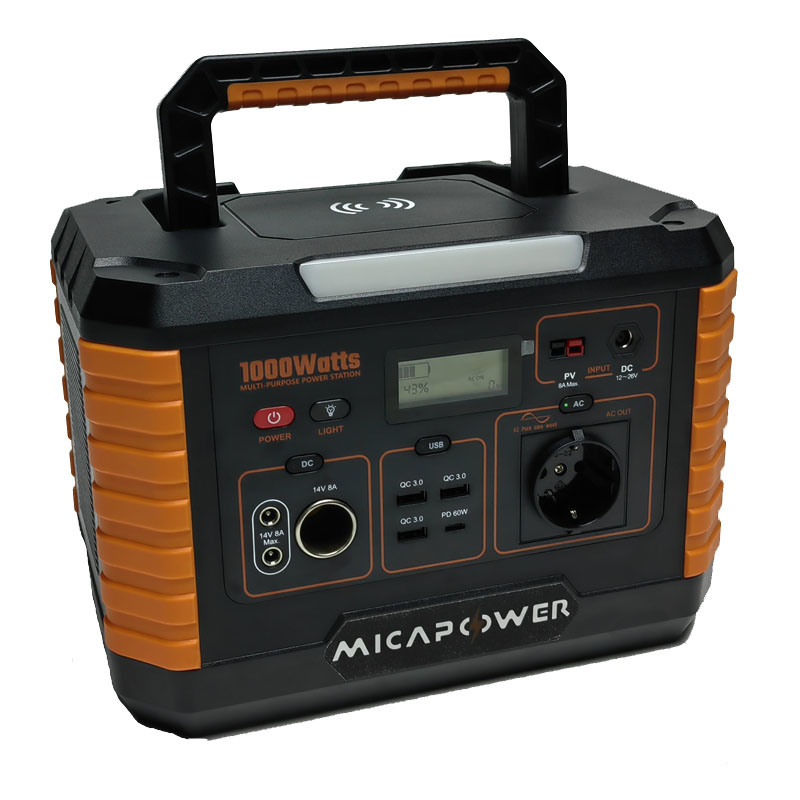

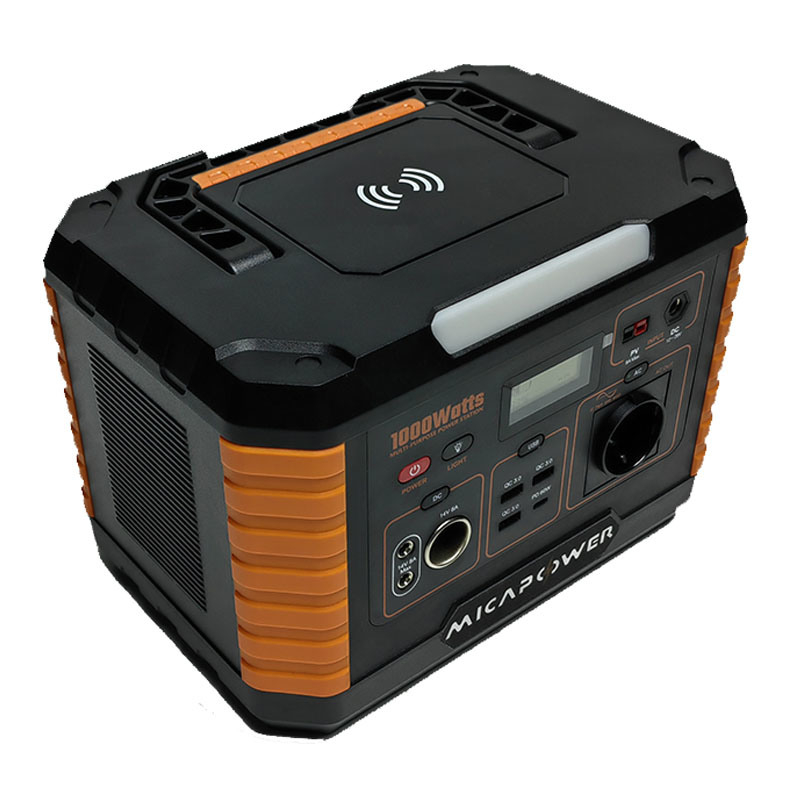

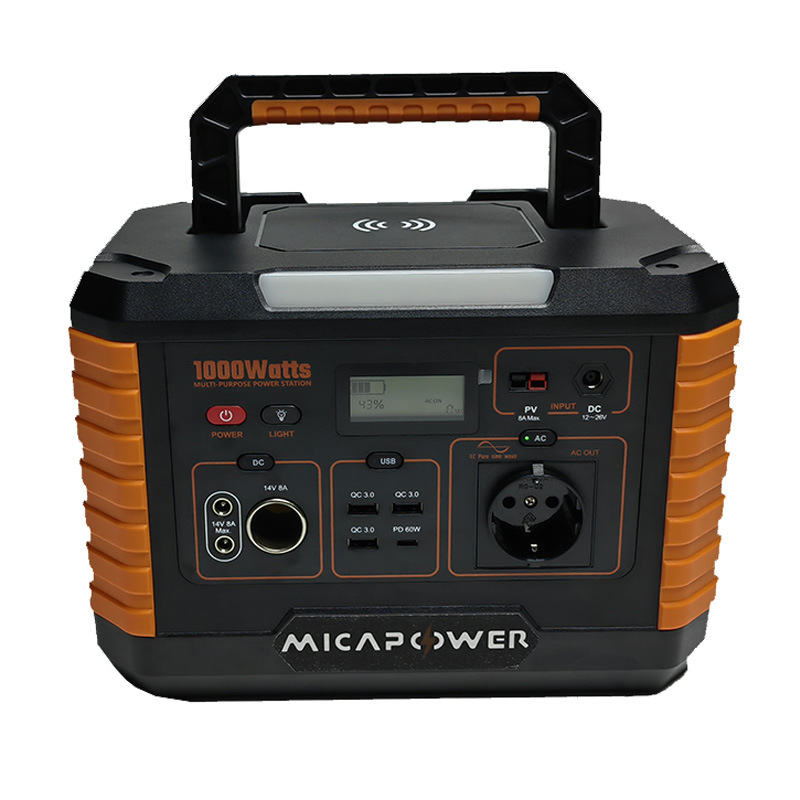

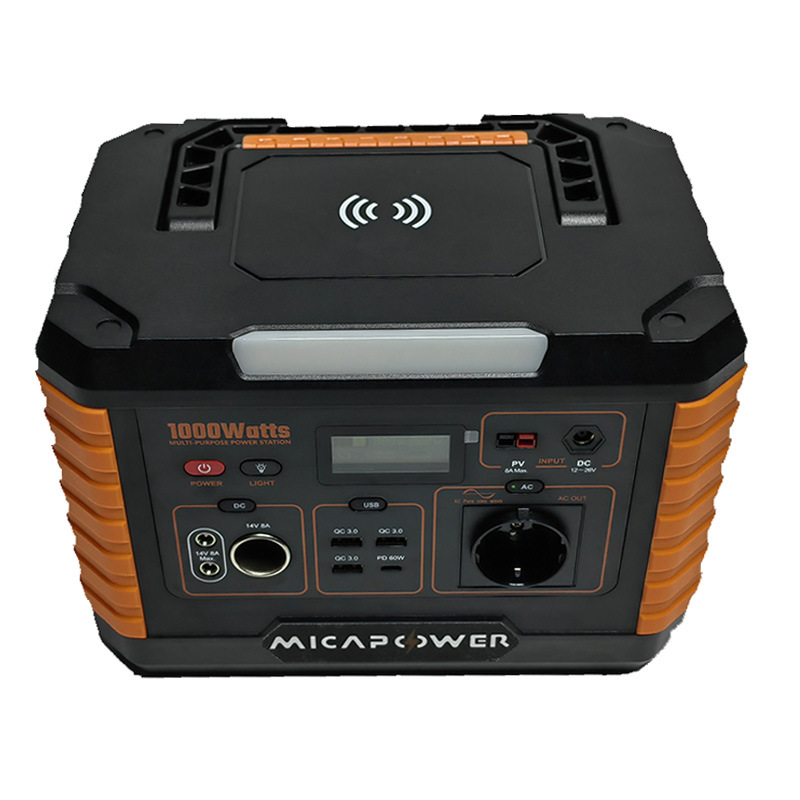

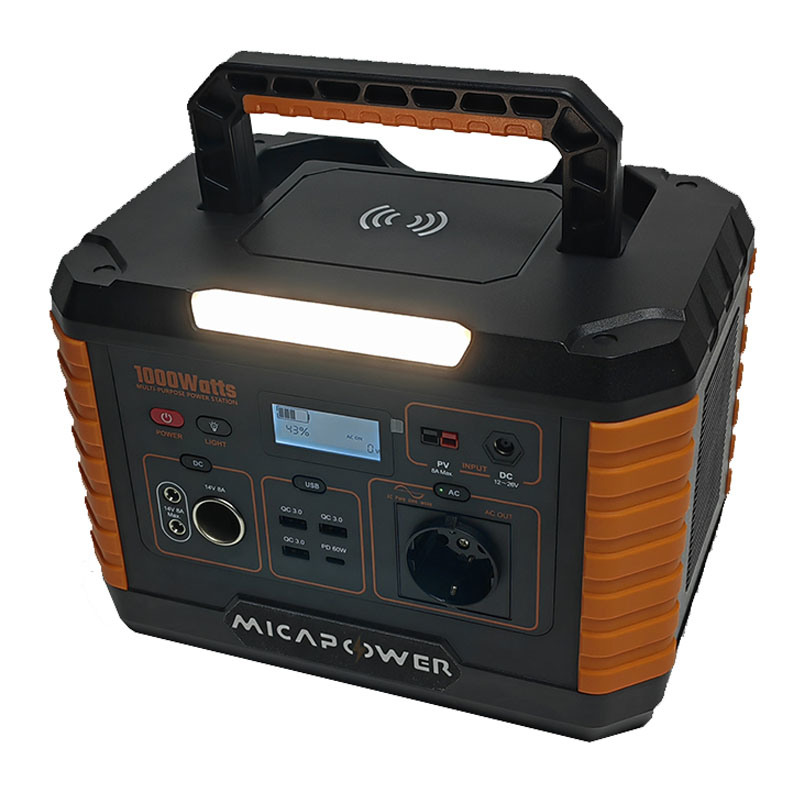

1 | Model | MP1000 | |
2 | Battery type | Li-ion 18650 cell | 3.7V/270000mAh |
3 | Rated Energy | 999Wh | |
4 | Min Energy | 999Wh | |
5 | Output | AC Output Voltage | 110V±10V/60HZ |
Rated Output Power | 1000W | ||
Output waveform | pure sine wave | ||
Overload protection Power | 1100±80W | ||
Cigarette Lighter Socket Output | 14V/8A | ||
DC 55*2.5 output | 14V/4A | ||
Wireless charger | 10W | ||
USB output | QC3.0/18W | ||
Output Type-C | PD60W | ||
6 | Input | Recharging input voltage | 12-26V |
Recharging input power | 150W | ||

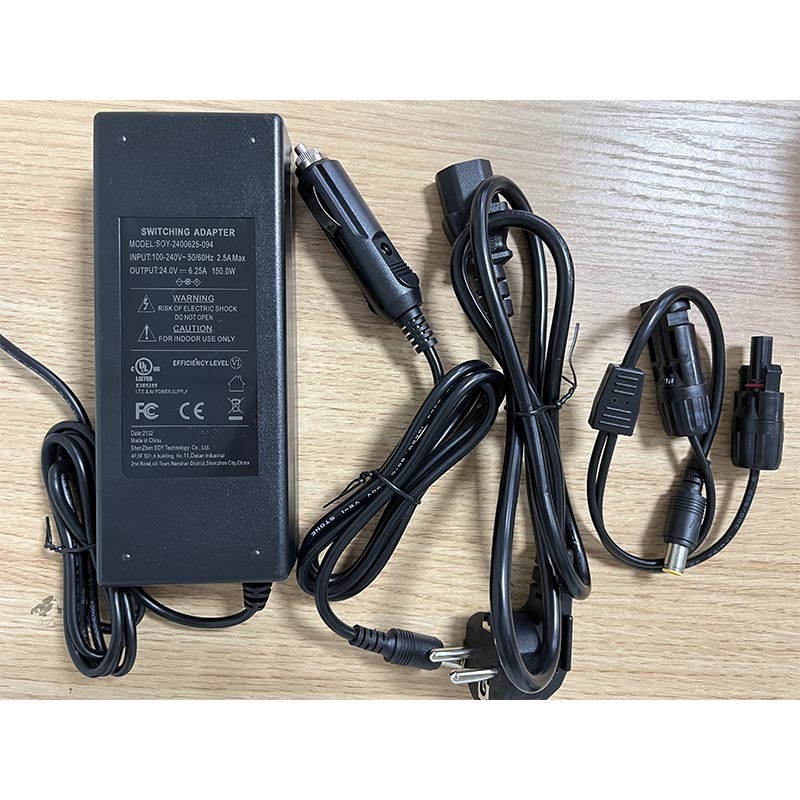

AC/DC Adapter | 150W MAX ,AC 100-240V (50Hz/60Hz) ,DC 24V ,6.25A | ||
Solar Charge Input | 12-26V ,DC 8A MAX | ||
Car Charger | DC 12V , 8A MAX | ||
7 | Dimension | L*W*H | 290mm*202mm*202mm |
8 | Weight | net weight | ≈8.5kg |
including accessories | ≈9.5kg | ||
9 | Range of Working Temperature | Charging: | 10ºC~40ºC |
Discharging: | 0ºC~75ºC | ||
10 | Range of Storage Temperature | Less than 1 year | -20ºC~+25ºC |
Less than 3 months | -20ºC~+45ºC | ||
Less than 1 month | -20ºC~+60ºC |
Circuit Protection | |||
No | Items | Parameter | Standard |
1 | Over-charging Protection | Protection Voltage | 4.25V |
Recovery voltage | 4.15V | ||
Protection delay time | 2s | ||
2 | Over-discharging Protection | Protection Voltage | 2.8V |
Recovery voltage | 3.0V | ||
Protection delay time | 2s | ||
3 | Over-current Protection | discharge over-current protection | 20A |
discharge over-current protection delay time | 1s | ||
4 | Short-circuit Protection | Recovery conditions | Recharge after short circuit release |
5 | Balanced loop | Balanced start voltage | 4.19V |
Balanced current | 127mA |
Functional Description:
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
