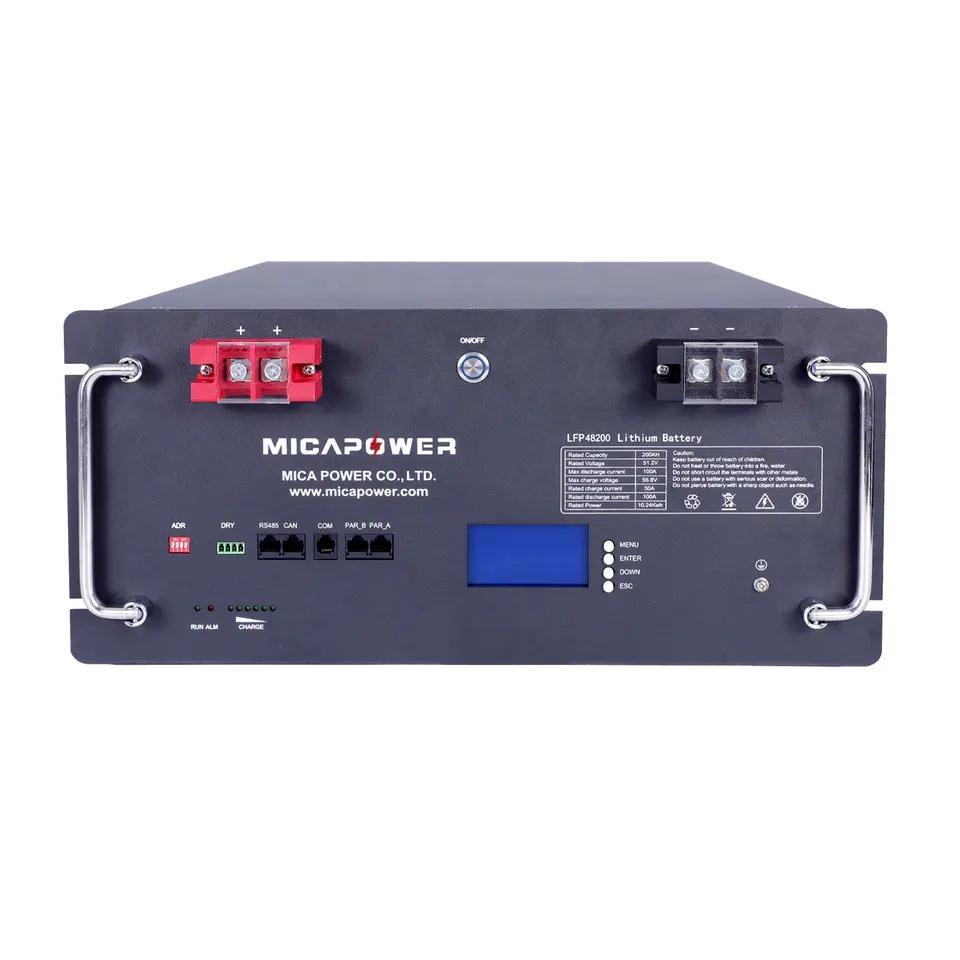

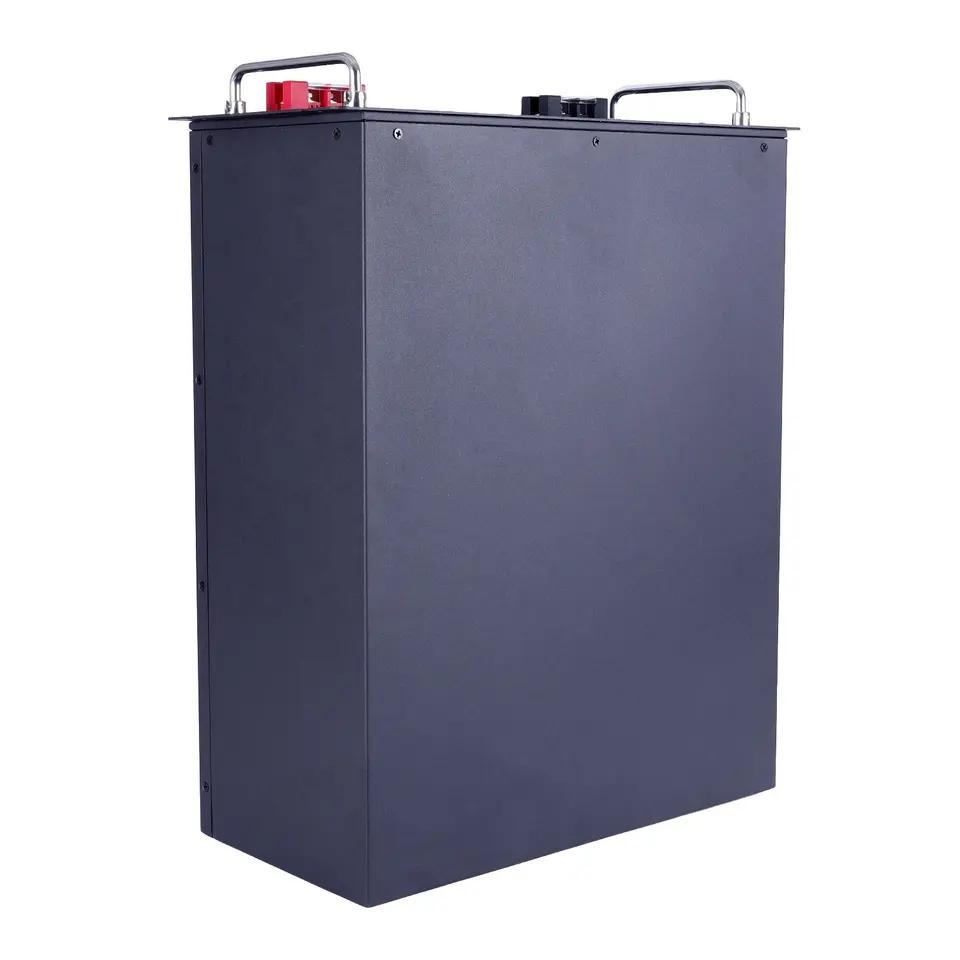

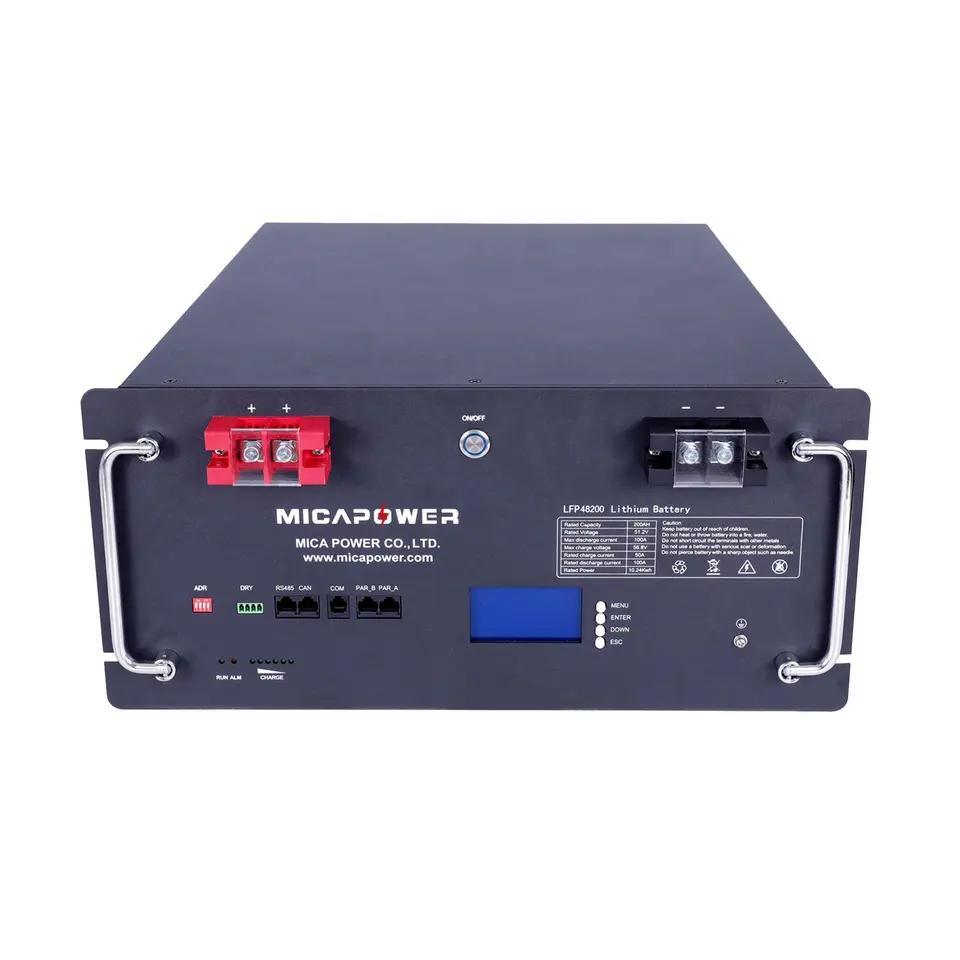

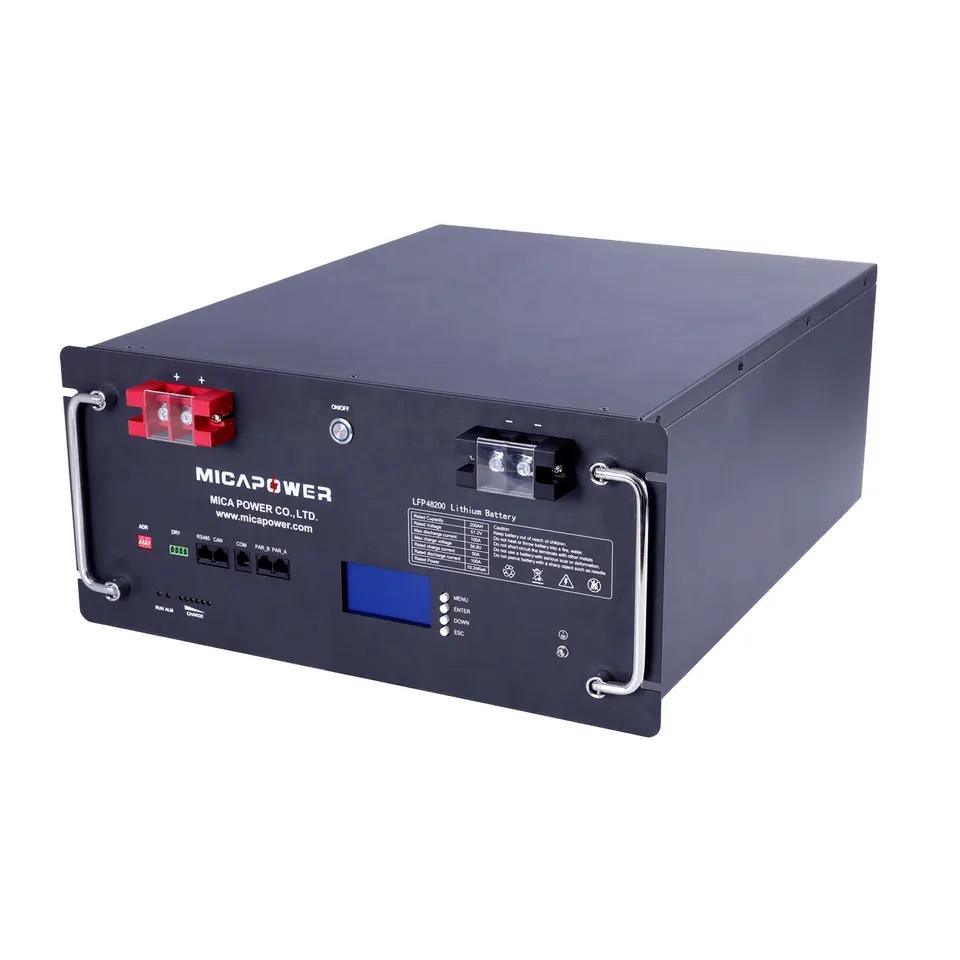

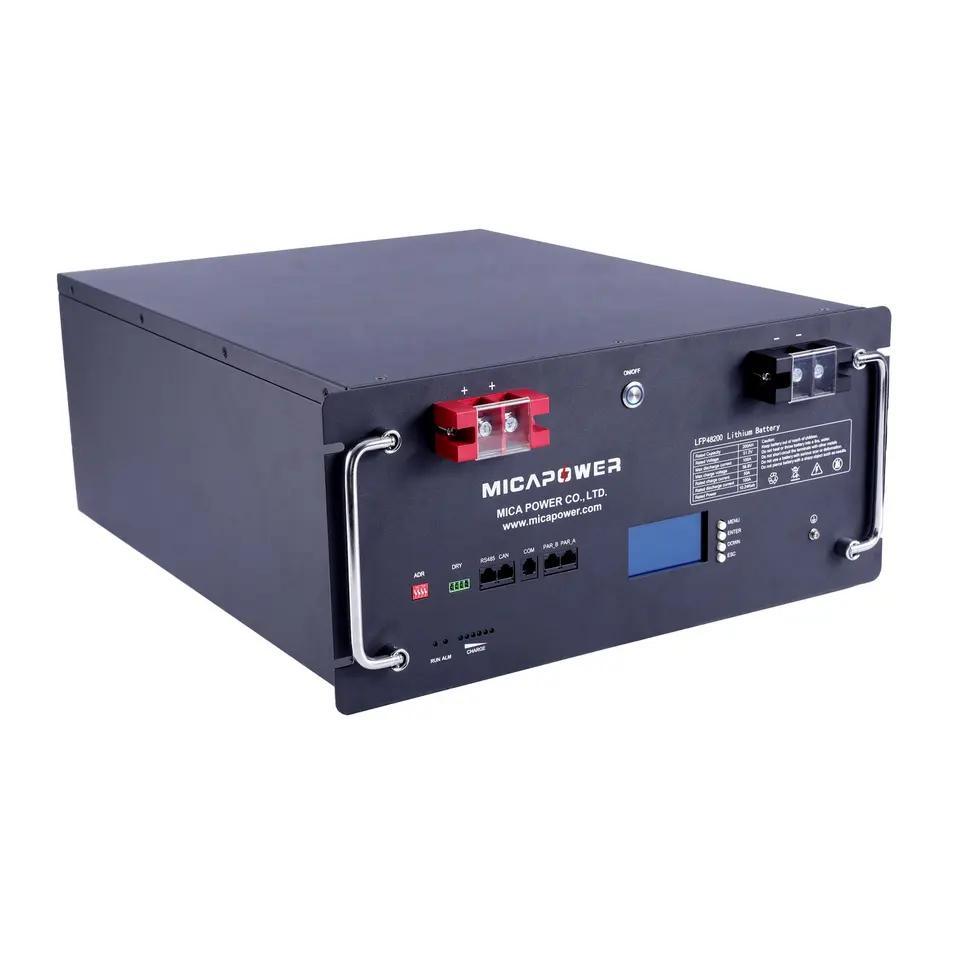

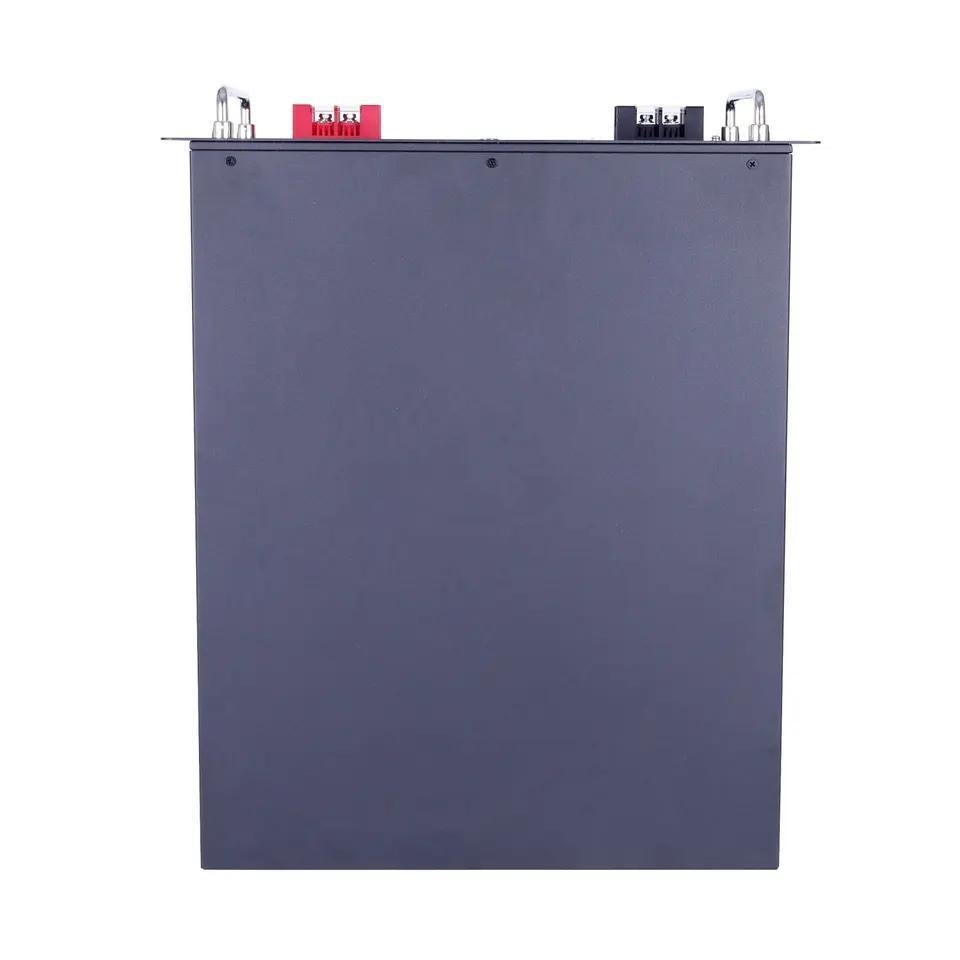

Lithium-Ion Battery Pack
Series Connection
Chargeable
Medium Discharge Rate
Medium
Battery
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
| Items | Parameter | |
| Battery model | MC-48200F | |
| Nominal voltage | 51.2V | |
| Minimum capacity | 200Ah@25ºC | |
| Charging voltage | 58.4V | |
| Discharging cut-off voltage | 40V | |
| Standard charging | 0.2C /58.4V | |
| Max charging | 100A /58.4V | |
| Standard discharging | 50A/40V | |
| Max discharging | continuous discharge | |
| peak discharge | ||
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | |
| -10ºC ~45ºC | ||
| -10ºC~55ºC | ||
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Charge Current Max | 50A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Why choose us
1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2,Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
