48V
5 Years
Over 4000 Times
| Items | Parameter | |

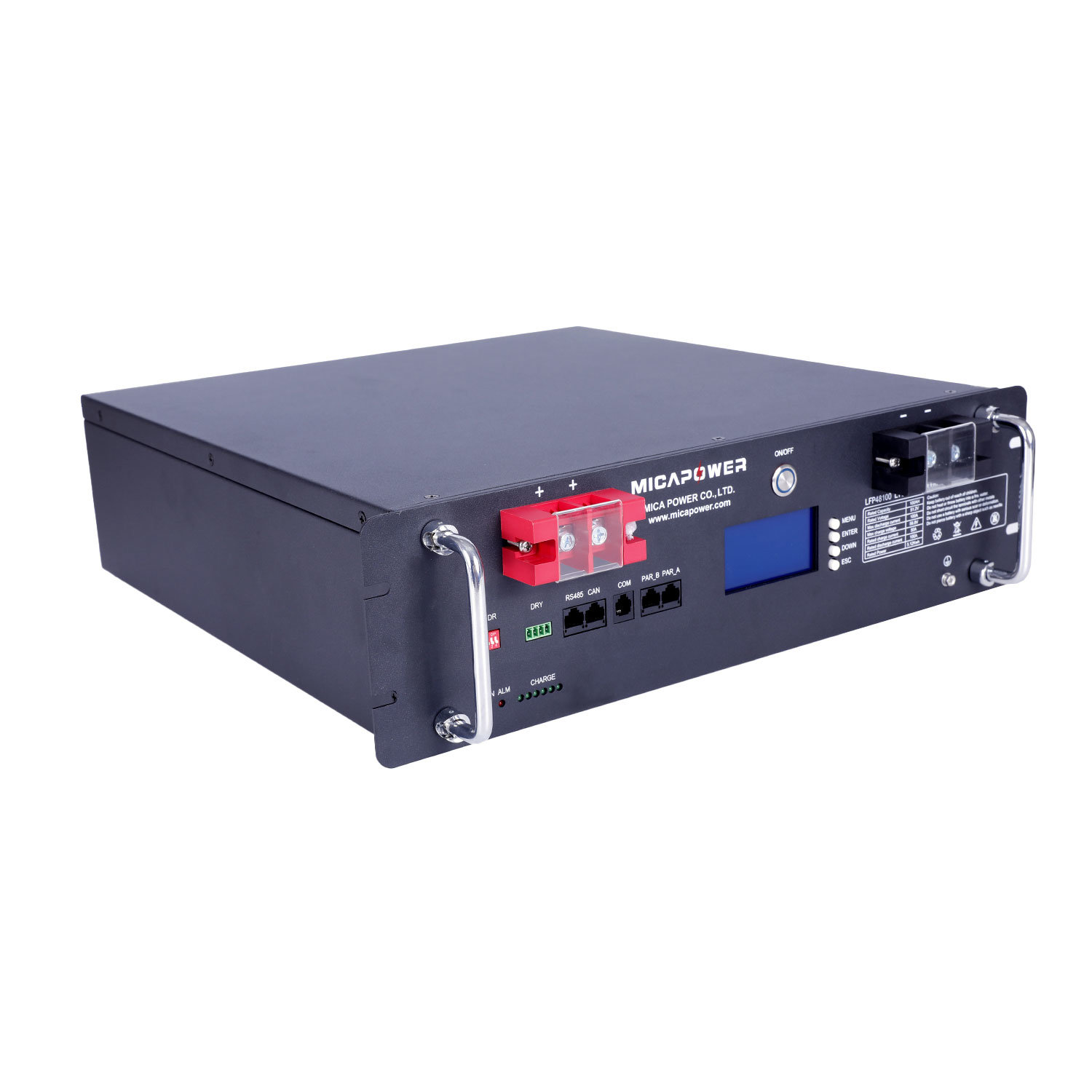

| Battery model | MC-48100 | |
| Nominal voltage | 51.2V | |
| Minimum capacity | 100Ah@25ºC | |
| Charging voltage | 58.4V | |
| Discharging cut-off voltage | 40V | |
| Standard charging | 0.2C /58.4V | |
| Max charging | 100A /58.4V | |
| Standard discharging | 50A/40V | |
| Max discharging | continuous discharge | 50A |
| peak discharge | 100A | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
| Items | Parameter | |
| Battery model | MC-48100 | |
| Nominal voltage | 51.2V | |
| Minimum capacity | 100Ah@25ºC | |
| Charging voltage | 58.4V | |
| Discharging cut-off voltage | 40V | |
| Standard charging | 0.2C /58.4V | |
| Max charging | 100A /58.4V | |
| Standard discharging | 50A/40V | |
| Max discharging | continuous discharge | 50A |
| peak discharge | 100A | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
