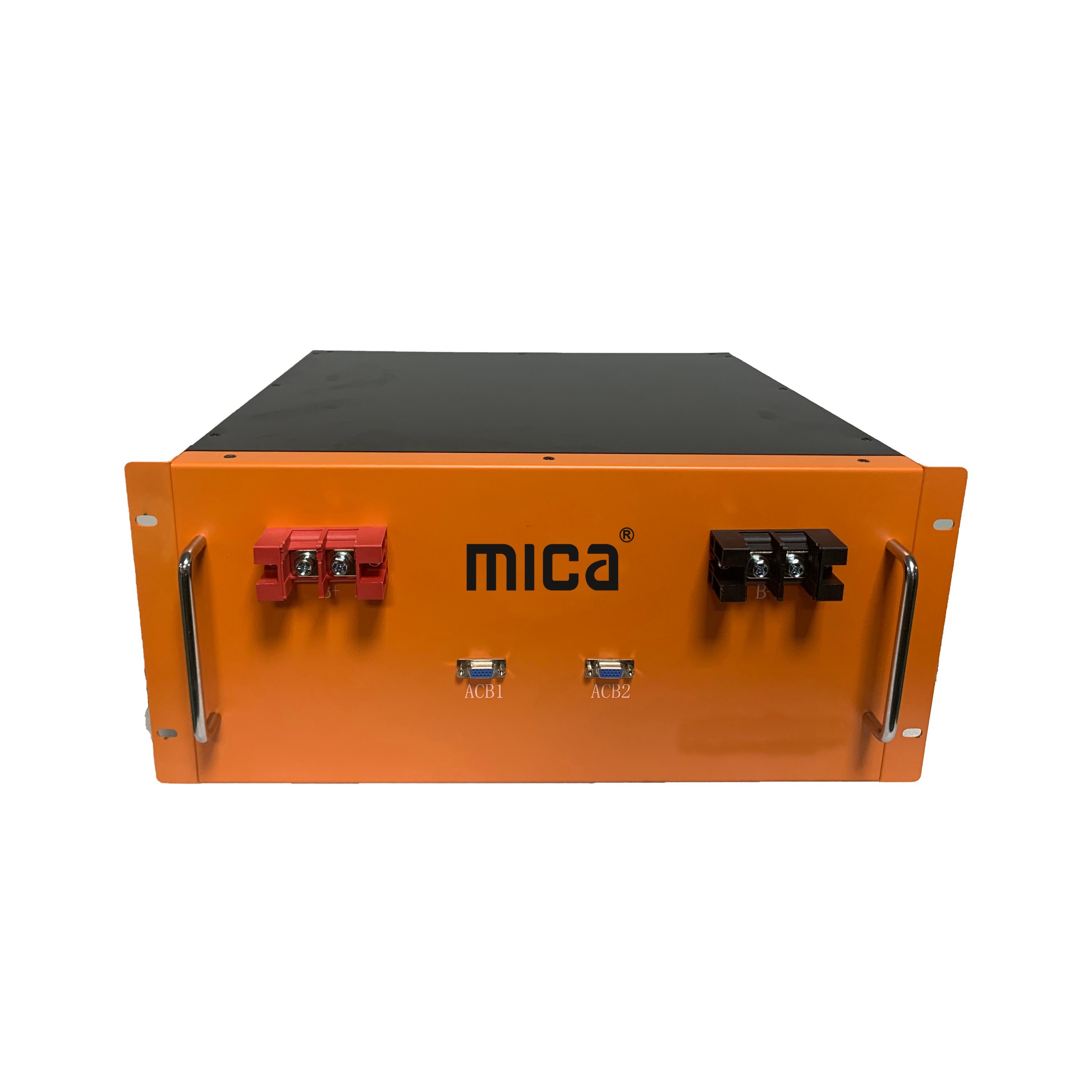

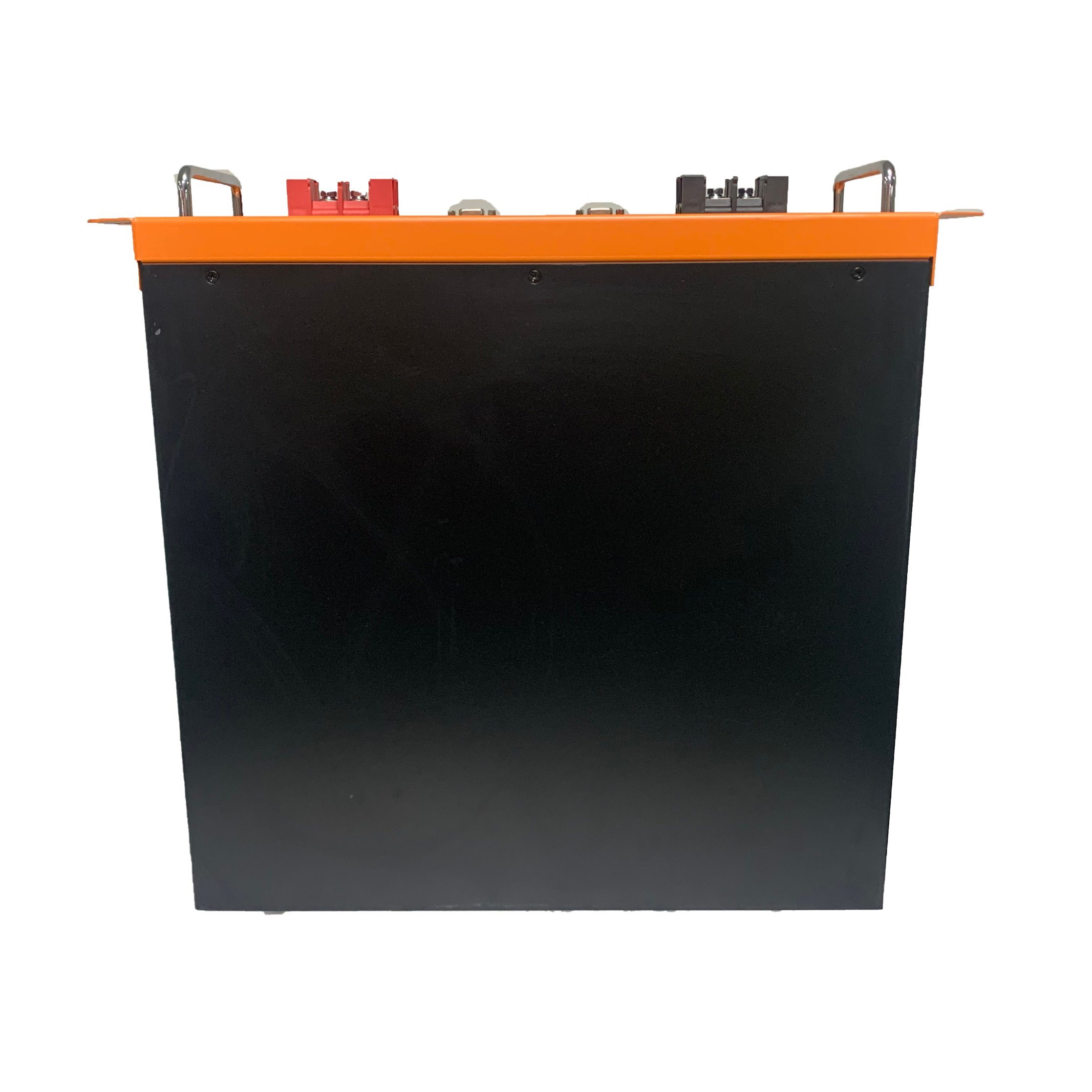

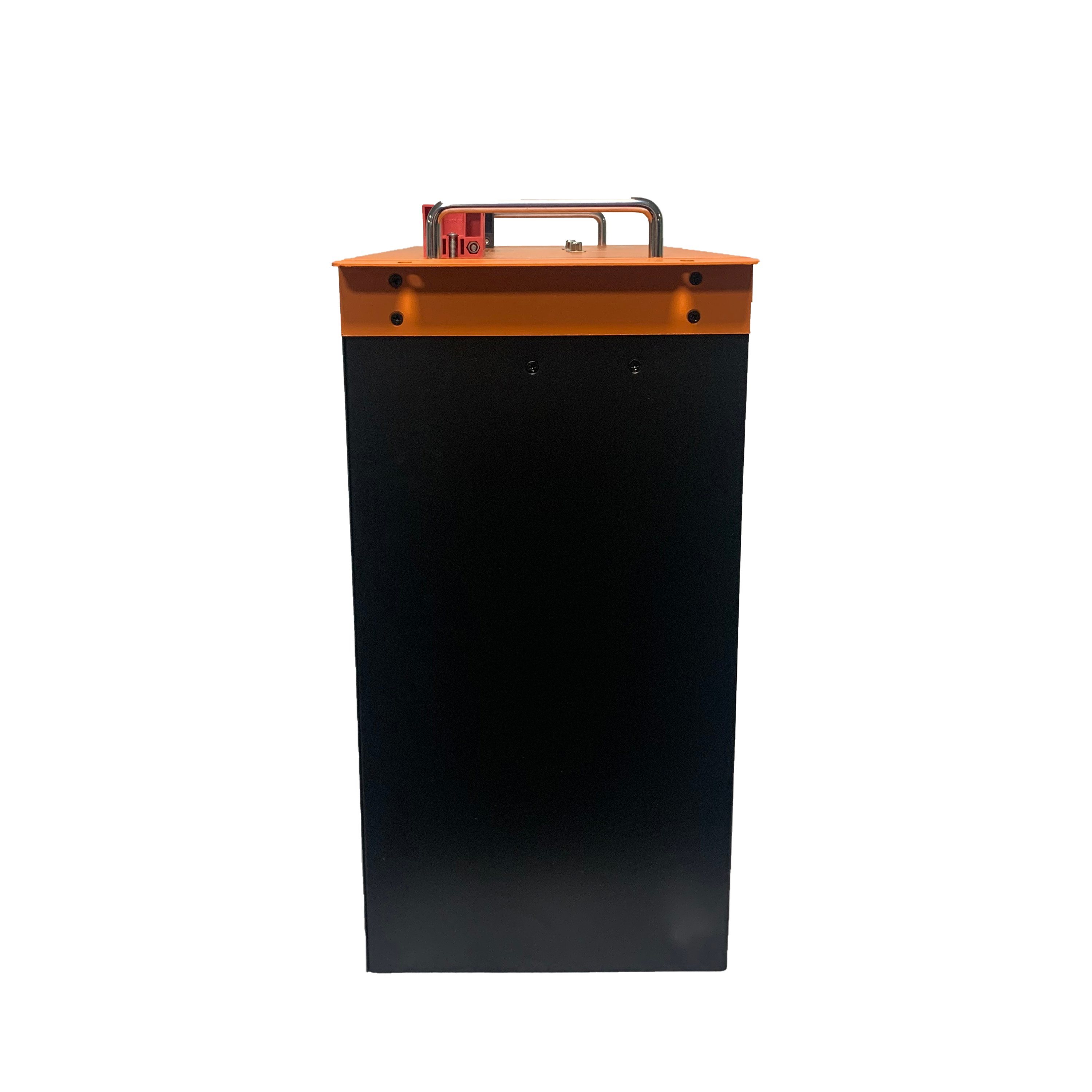

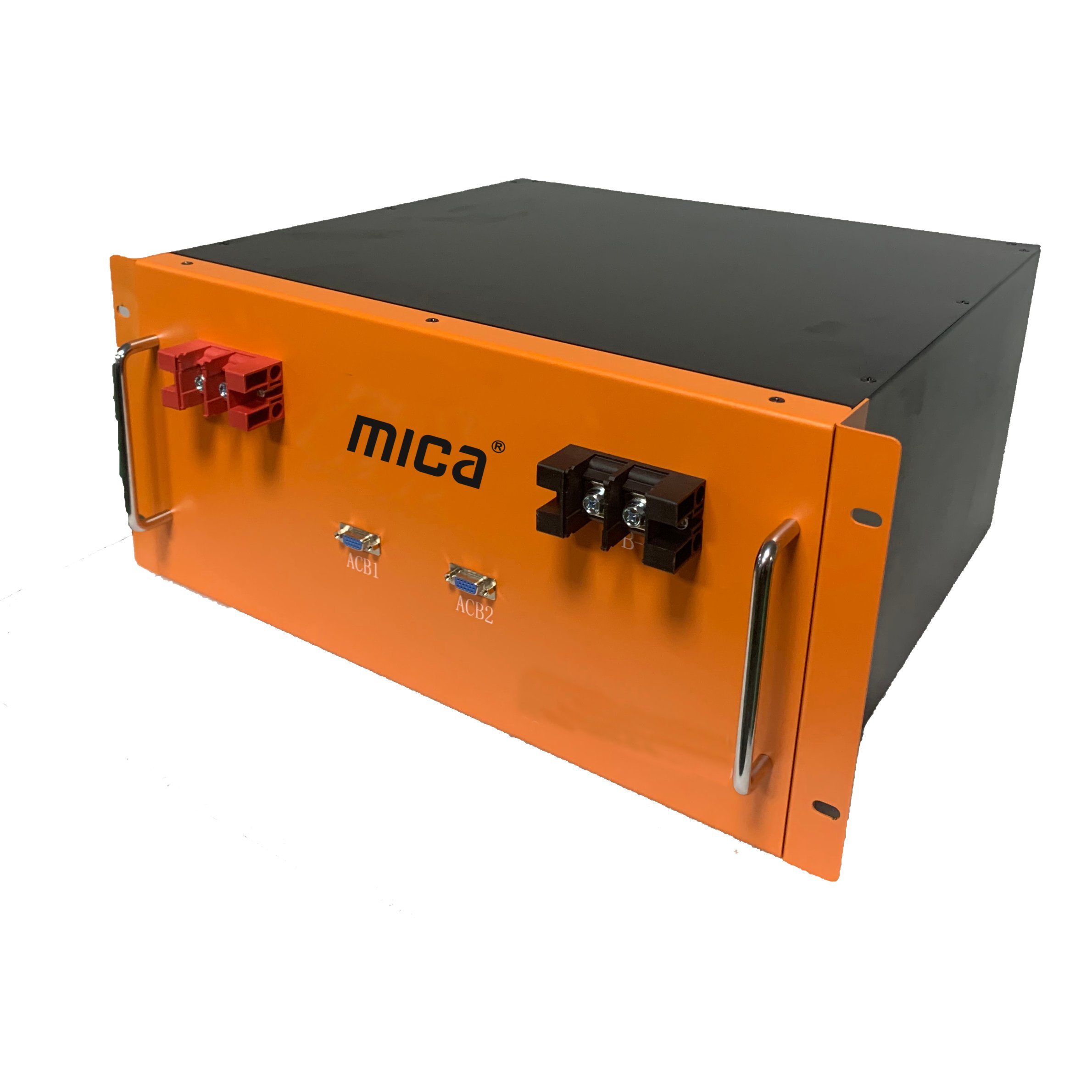

LiFePO4 Battery
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Storage Battery
51.2V
High Discharge Rate
Square Battery
Li-ion
Availability: | |
---|---|
General Information | |
Battery Type | LiFePO4(Lithium Iron Phosphate) |
Nominal Voltage | 51.2V |
Nominal Capacity | 150Ah@25ºC,C10 |
Nominal Energy | 7680Wh@25ºC,C10 |
Operation Voltage | 40-58.4V |
Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
Cycle Life @ 100%DOD | >3000 cycles (7680Wh@25ºC,C10) |
Cycle Life @ 80%DOD | >4000 cycles (6144Wh@25ºC,C10) |
Cycle Life @ 50%DOD | >6000 cycles (3840Wh@25ºC,C10) |
Dimension | 229 x 138 x 215mm (W x D x H) |
Communication | RS485/RS232/CAN optional |
Weight | ~65 kg |
Warranty Period | 5 years |
Environment Protection | IP54 |
BMS/Charge/Discharge | |
Charge Voltage Max | 58.4V |
Discharge Cut-off Voltage | 40V |
Charge Current Max | 50A |
Discharge Current Max | 100A continues |
200A burst (10 seconds) | |
Self-discharge Rate | <2% per month |
Protection | Over-charge protection |
Over-discharge protection | |
Over current protection | |
Cell balancing function | |
Over temperature protection |
General Information | |
Battery Type | LiFePO4(Lithium Iron Phosphate) |
Nominal Voltage | 51.2V |
Nominal Capacity | 150Ah@25ºC,C10 |
Nominal Energy | 7680Wh@25ºC,C10 |
Operation Voltage | 40-58.4V |
Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
Cycle Life @ 100%DOD | >3000 cycles (7680Wh@25ºC,C10) |
Cycle Life @ 80%DOD | >4000 cycles (6144Wh@25ºC,C10) |
Cycle Life @ 50%DOD | >6000 cycles (3840Wh@25ºC,C10) |
Dimension | 229 x 138 x 215mm (W x D x H) |
Communication | RS485/RS232/CAN optional |
Weight | ~65 kg |
Warranty Period | 5 years |
Environment Protection | IP54 |
BMS/Charge/Discharge | |
Charge Voltage Max | 58.4V |
Discharge Cut-off Voltage | 40V |
Charge Current Max | 50A |
Discharge Current Max | 100A continues |
200A burst (10 seconds) | |
Self-discharge Rate | <2% per month |
Protection | Over-charge protection |
Over-discharge protection | |
Over current protection | |
Cell balancing function | |
Over temperature protection |
