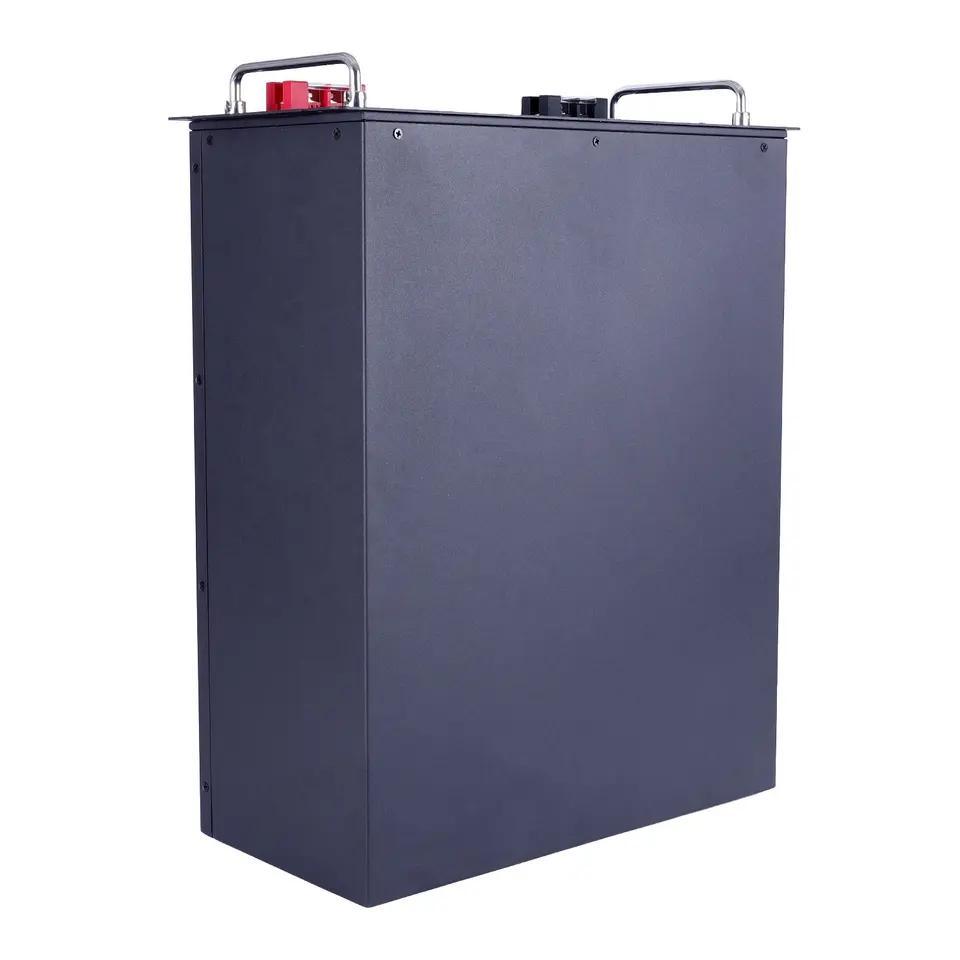

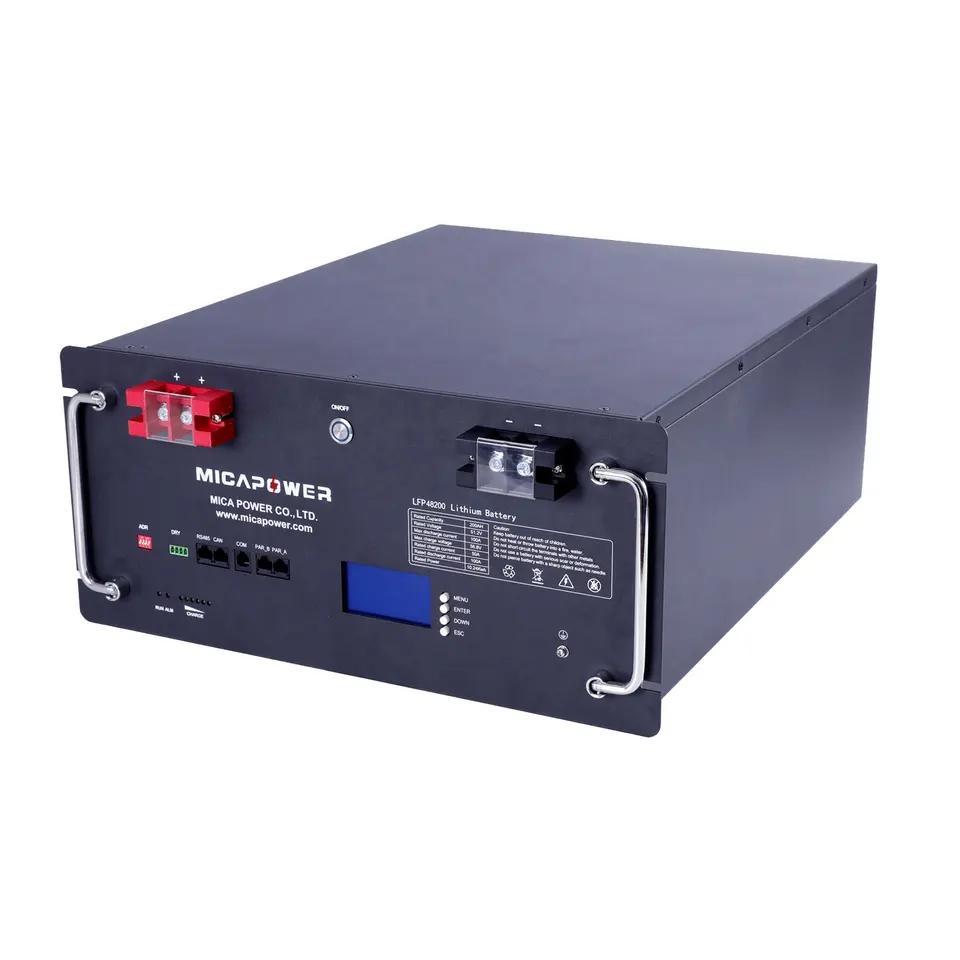

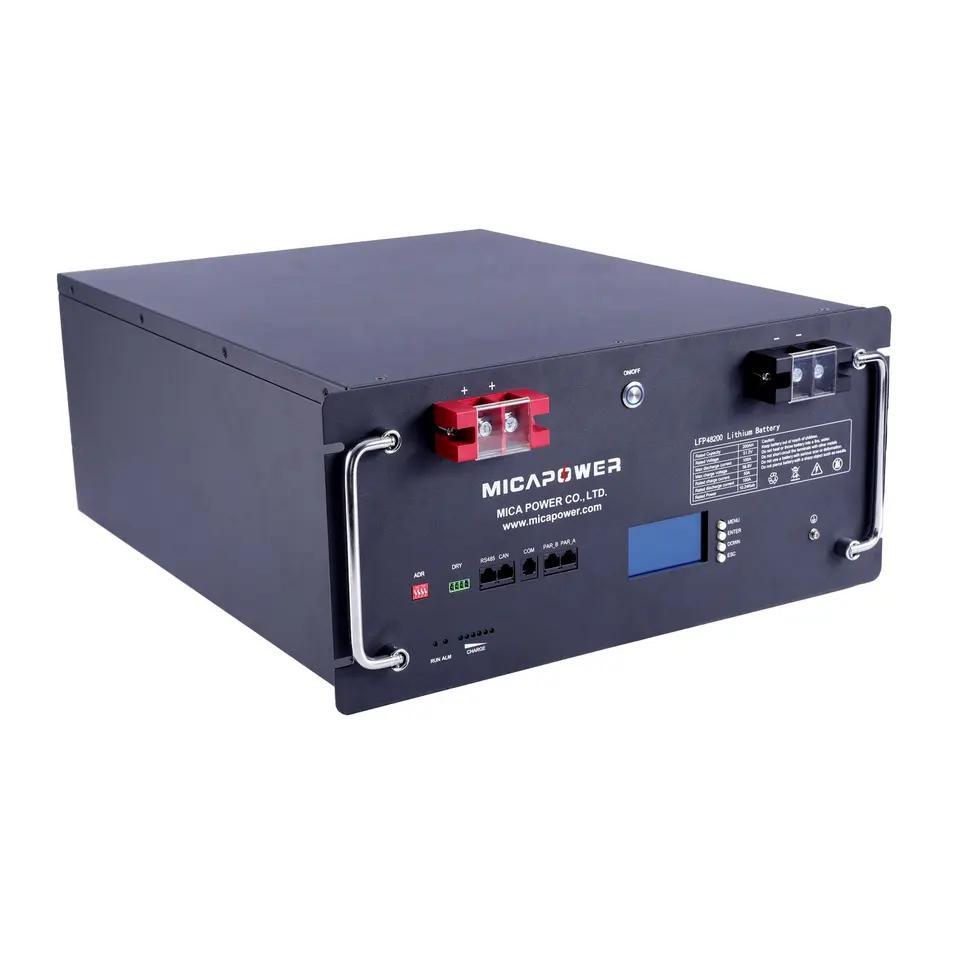

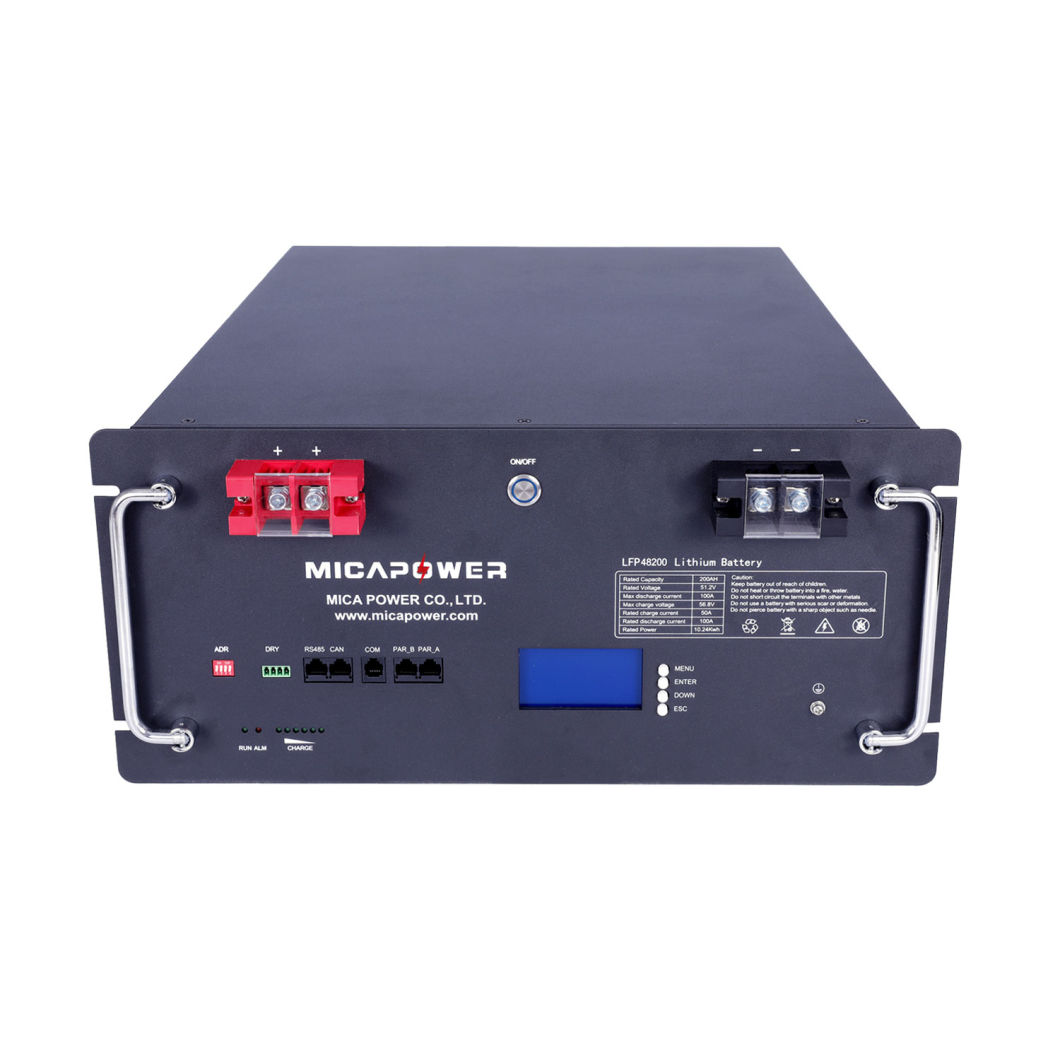

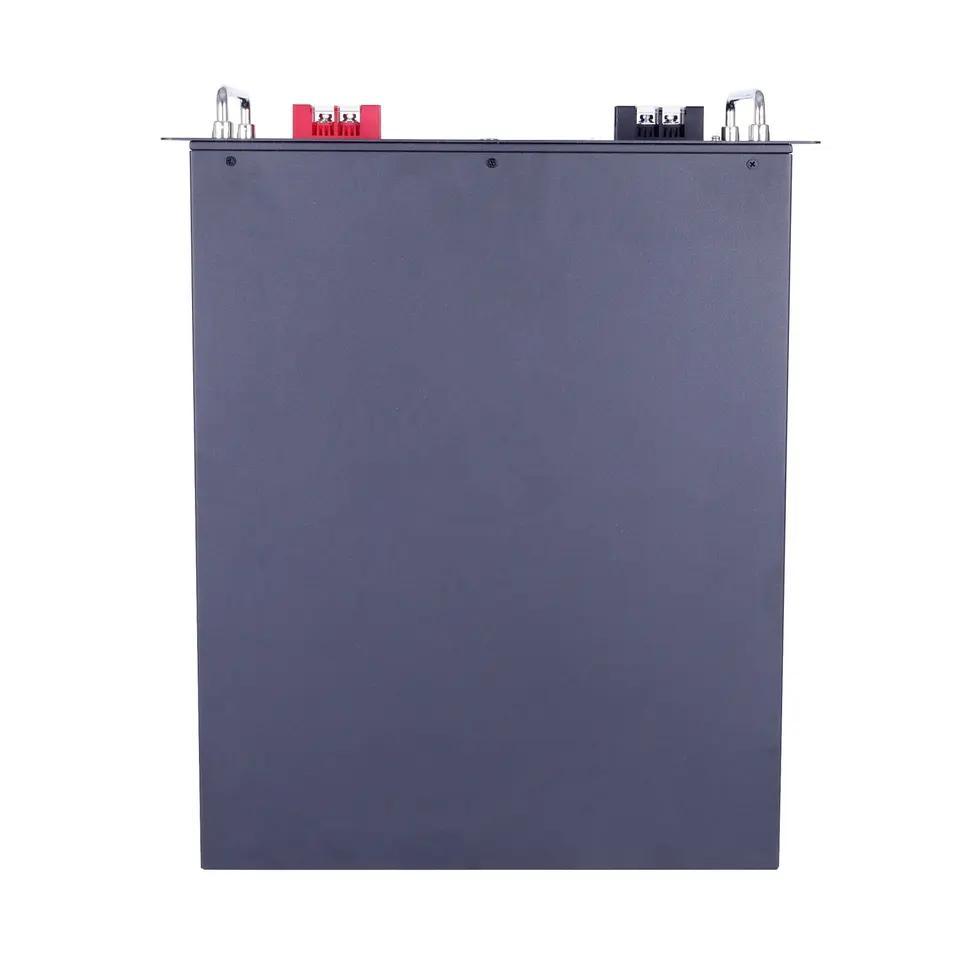

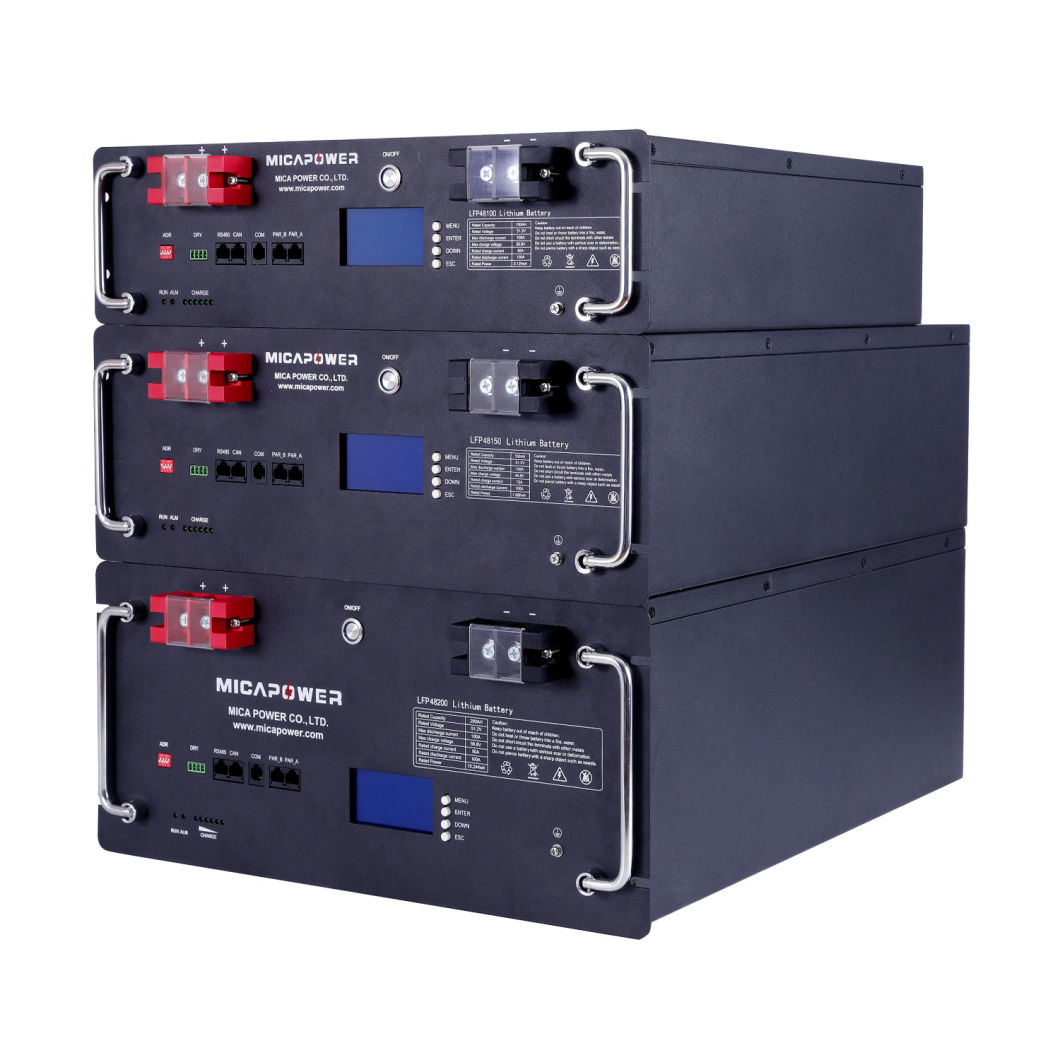

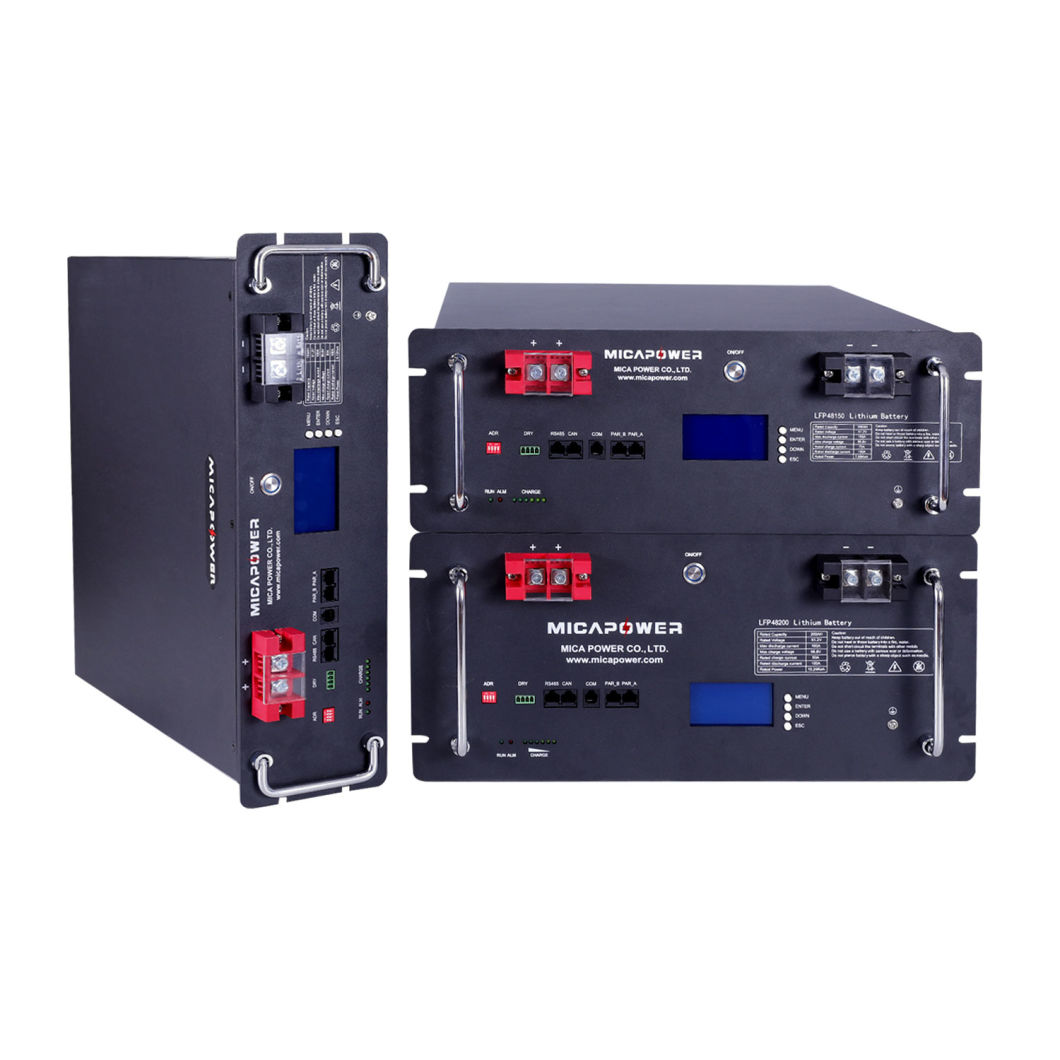

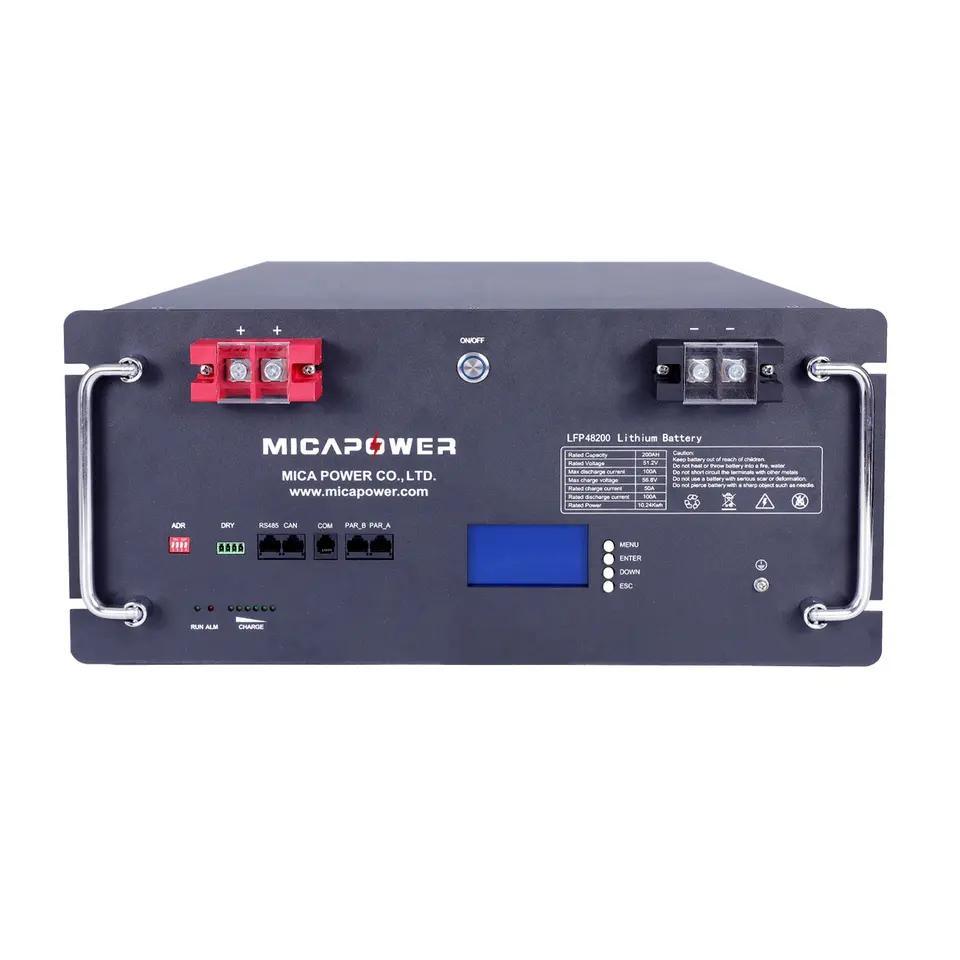

Lithium-Ion Battery Pack
Series Connection
Chargeable
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
| General Information | |
| Battery model | MC-48100F |
| Nominal voltage | 51.2V |
| Minimum capacity | 100Ah@25ºC |
| Charging voltage | 54.6V |
| Discharging cut-off voltage | 39V |
| Standard charging | 0.2C /54.6V |
| Max charging | 1.0C /54.6V |
| Standard discharging | 1C/39V |
| Max discharging | continuous discharge 100A/39V non-continuous discharge 200A/39V |
| Operation voltage | 39V~54.6V |
| Operating temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~60°C |
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC (12 months ≥85% ) -10ºC ~45ºC (6 months ≥85% ) -10ºC~55ºC (1 month ≥90% ) 20±5ºC is the recommended storage temperature |
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Charge Current Max | 50A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Why choose us
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology | General Information | |
| Battery model | MC-48100F |
| Nominal voltage | 51.2V |
| Minimum capacity | 100Ah@25ºC |
| Charging voltage | 54.6V |
| Discharging cut-off voltage | 39V |
| Standard charging | 0.2C /54.6V |
| Max charging | 1.0C /54.6V |
| Standard discharging | 1C/39V |
| Max discharging | continuous discharge 100A/39V non-continuous discharge 200A/39V |
| Operation voltage | 39V~54.6V |
| Operating temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~60°C |
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC (12 months ≥85% ) -10ºC ~45ºC (6 months ≥85% ) -10ºC~55ºC (1 month ≥90% ) 20±5ºC is the recommended storage temperature |
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Charge Current Max | 50A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
