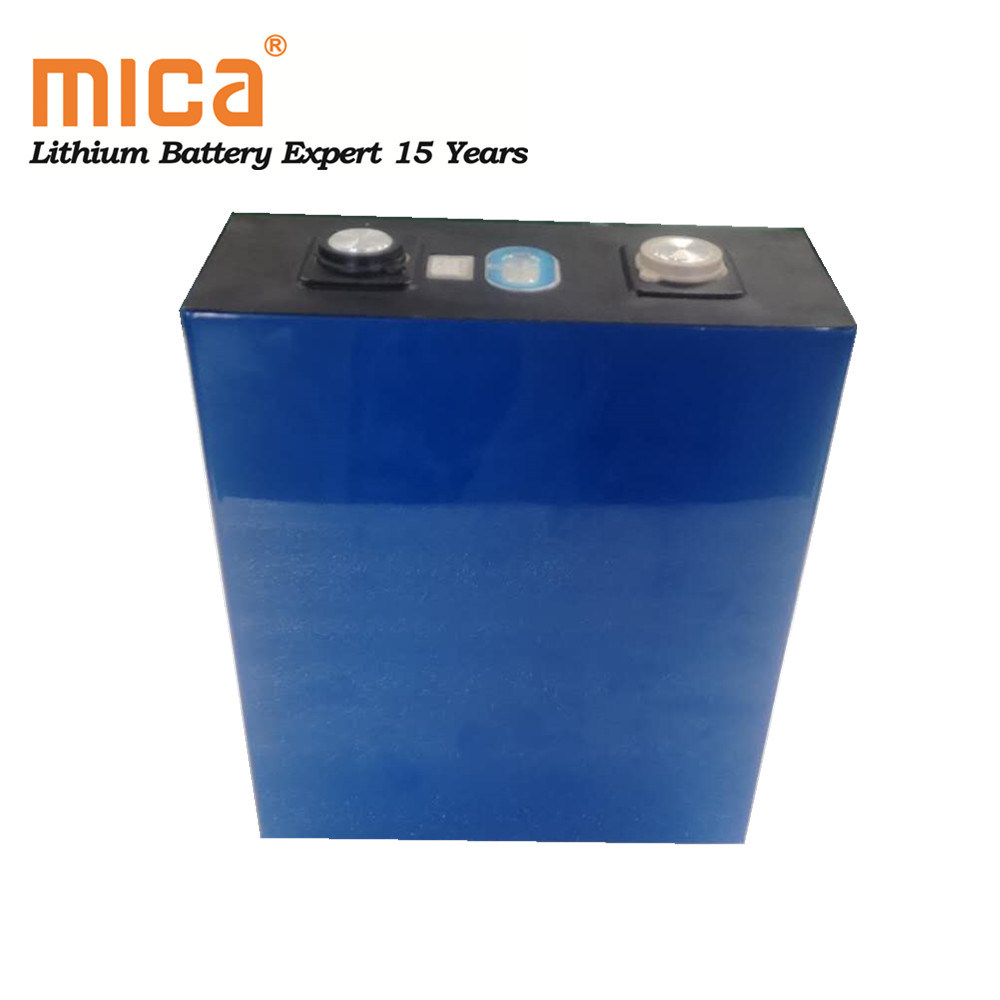

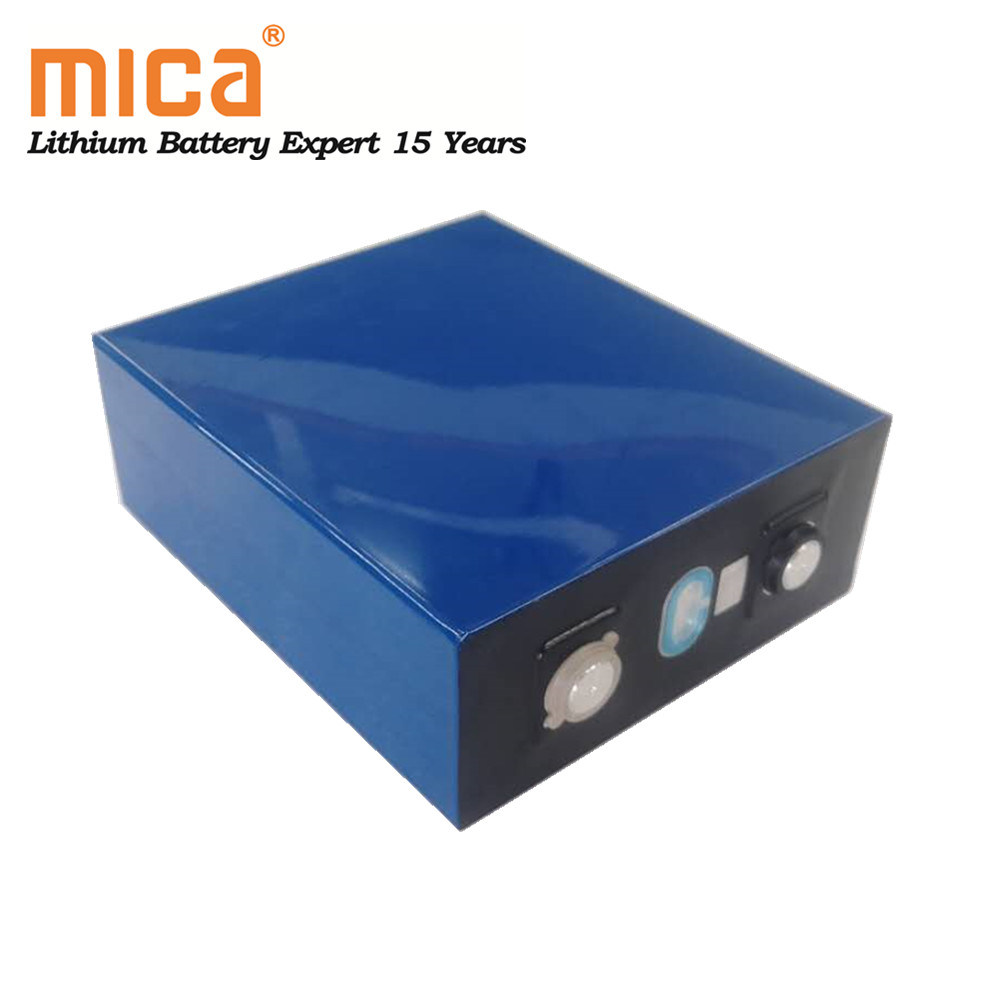

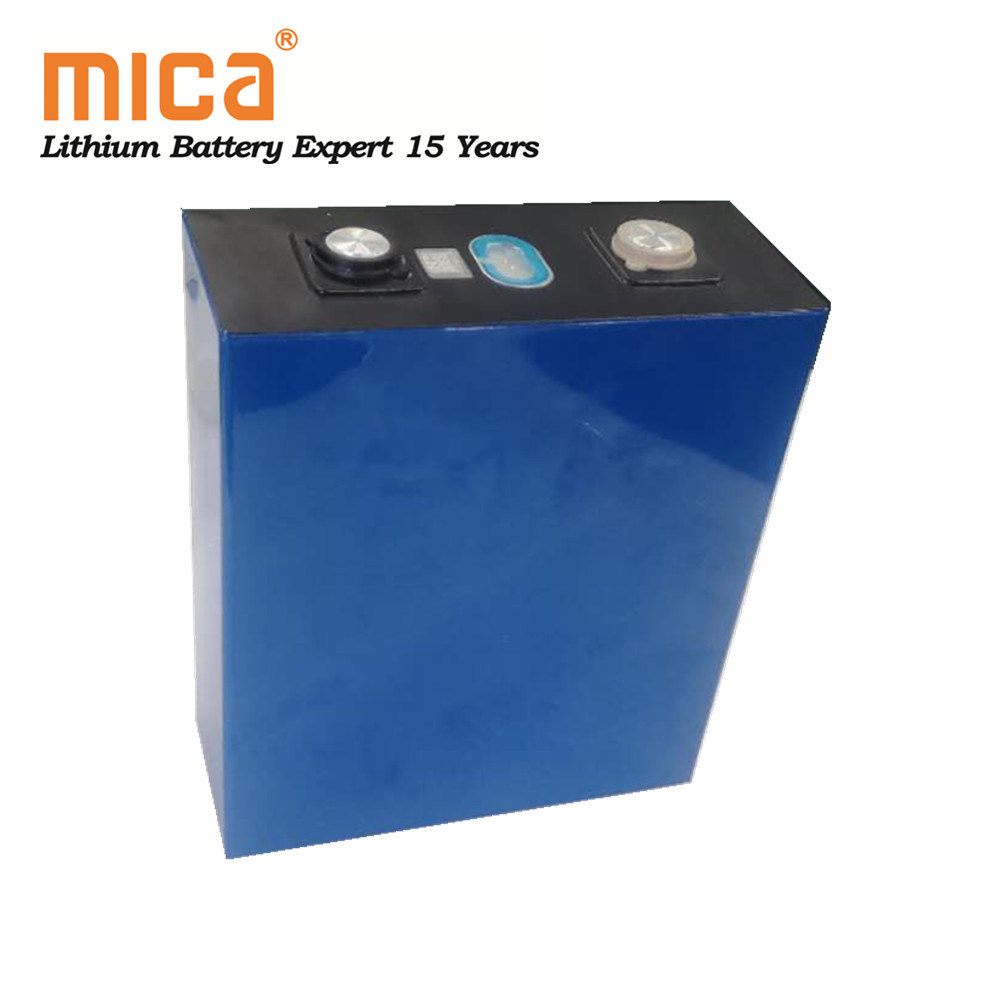

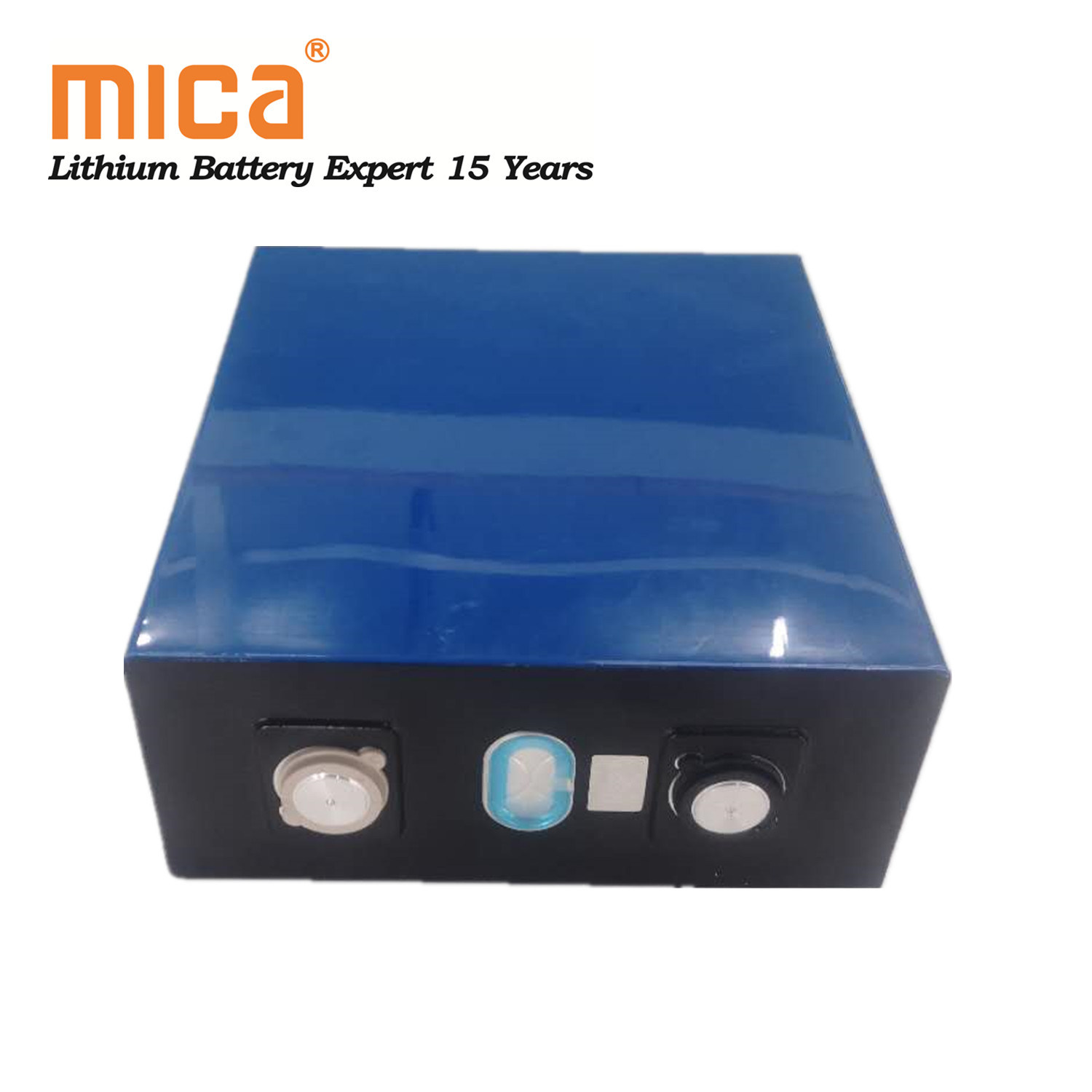

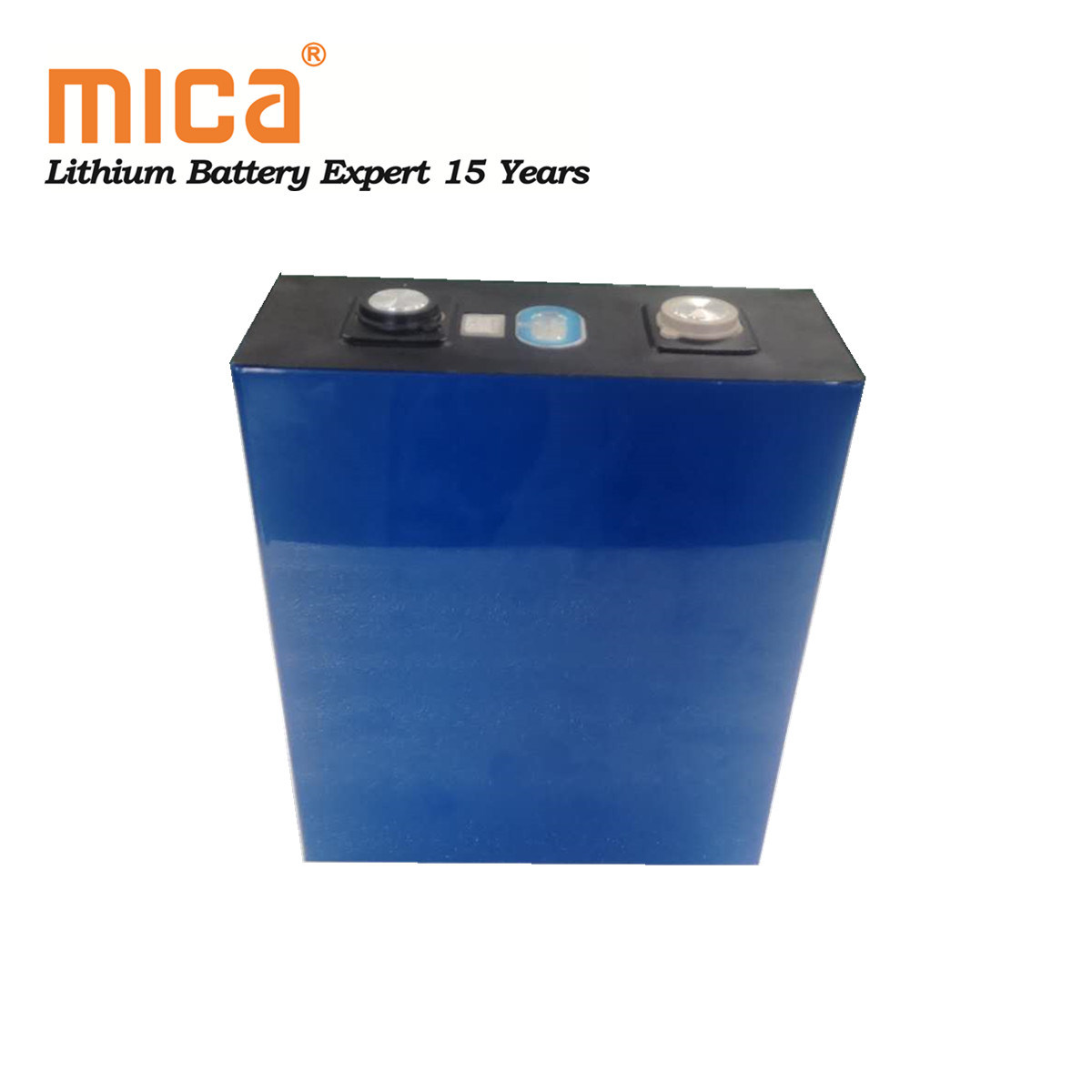

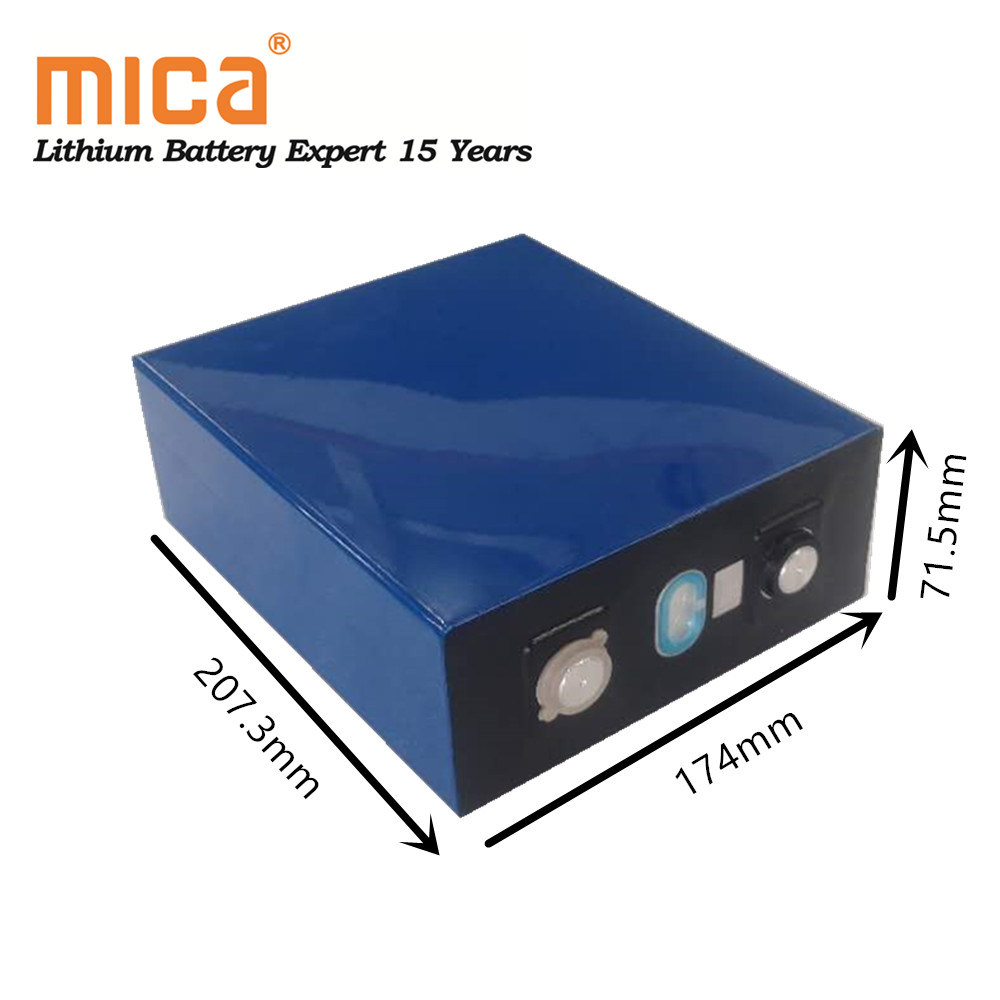

Lithium Iron Phosphate Battery
LFP
Yes
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Ultra-long cycle life • Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
| Items | Parameter | |
| Battery model | MC-IFR72174206F | |
| Nominal voltage | 3.2V | |
| Minimum capacity | 240Ah@25ºC | |
| Charging voltage | 3.65V | |
| Discharging cut-off voltage | 2.5V | |
| Standard charging | 0.2C /3.65V | |
| Max charging | 1.0C /3.65V | |
| Standard discharging | 1C/2.5V | |
| Max discharging | continuous discharge | 1.5C/2.5V |
| Burst discharge | 5.0C/2.5V | |
| Application | 5G/UPS/communication stations etc | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Warranty | 2 Years | |
