Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery

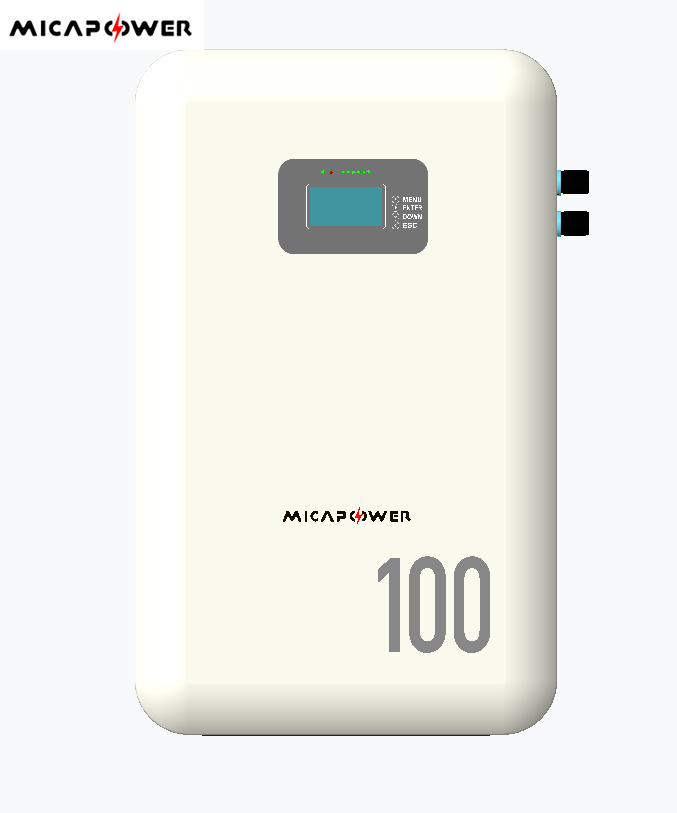

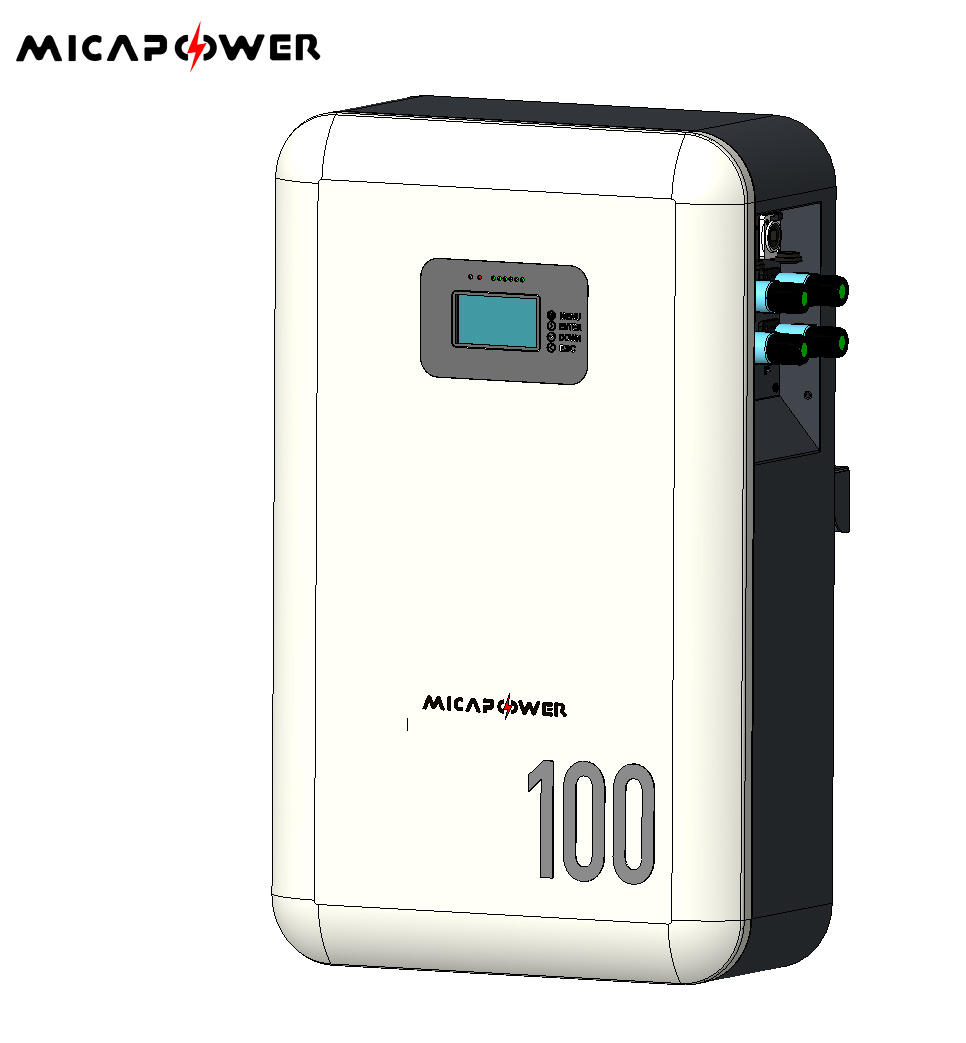

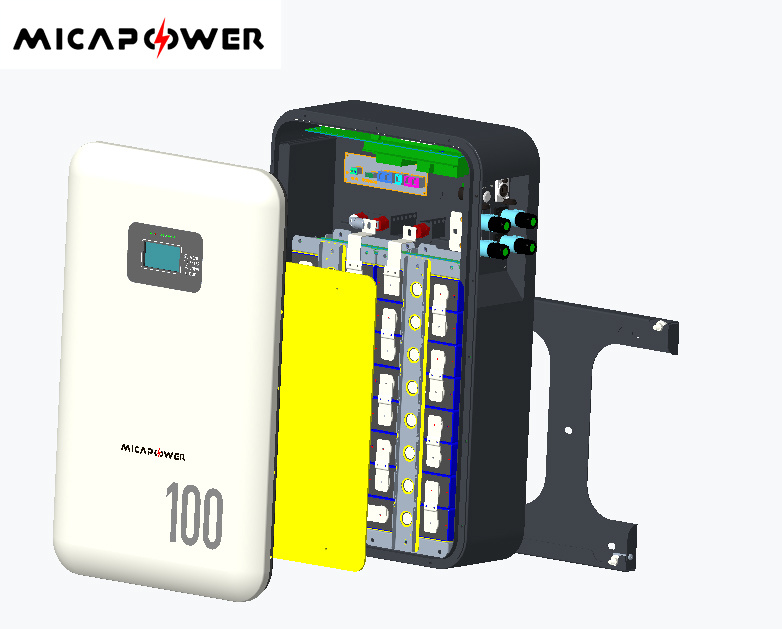

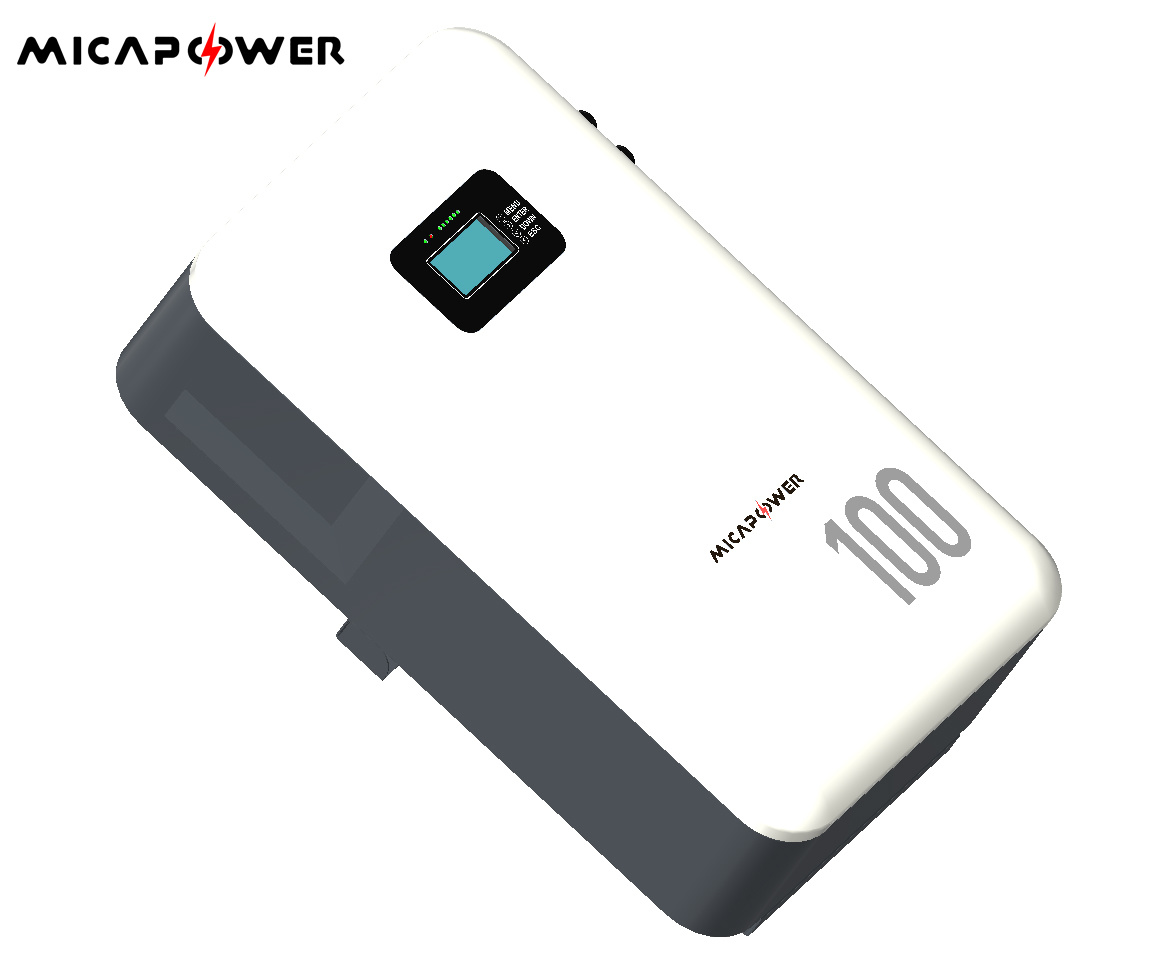

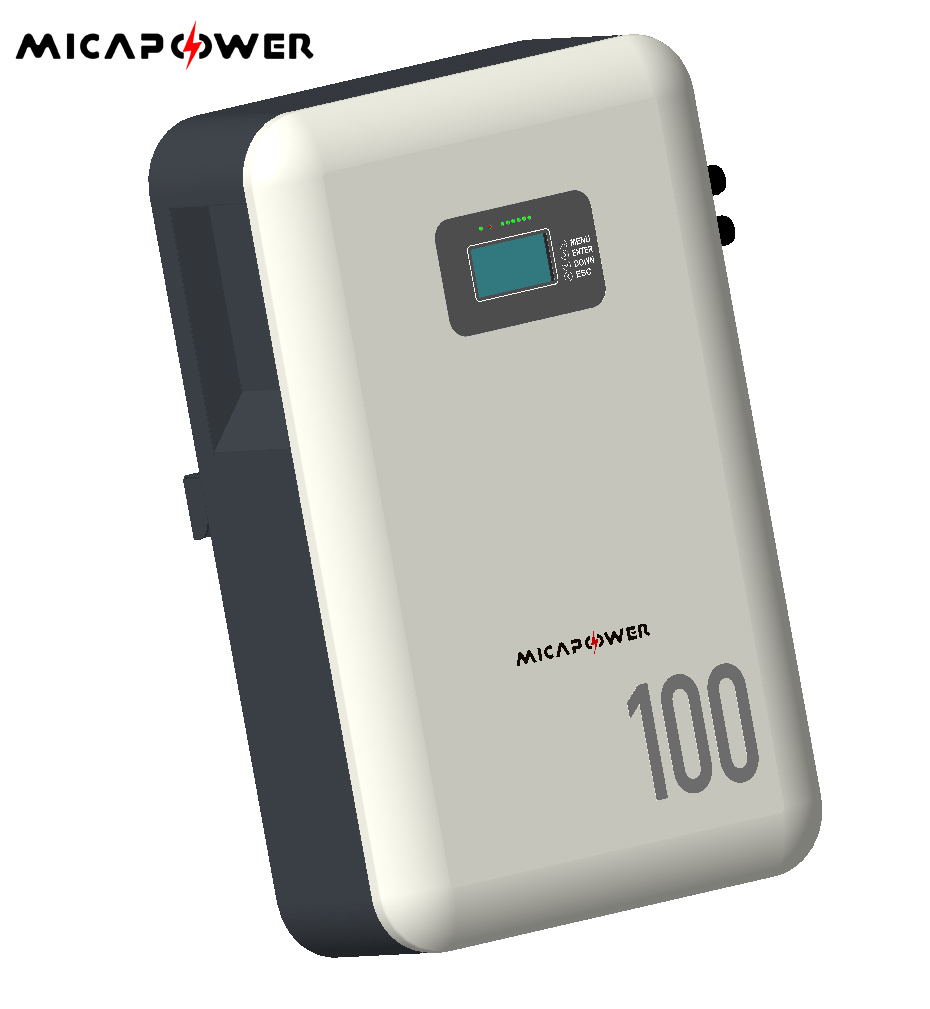

solar energy system battery
| Battery Type: | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage: | 51.2V |
| Nominal Capacity: | 100Ah |
| Nominal Energy: | 5.12KWh |
| Voltage window: | 44.0~58.0V |

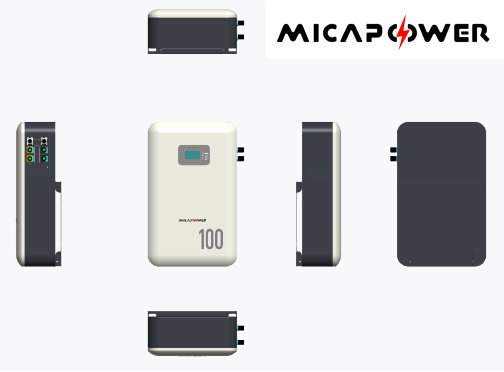

| Dimension: | H665×W410×T179mm |
| Weight: | About 50.5KG |
| Rated. Charge Current: | 100Ah |
| Max. Continuous Discharge: | 200Ah |
| Max. Discharge DC Power: | 5000W |
| Maximum Discharge Current: | 100A |
| Rated Discharge Current: | 100A |
| Operation Temperature: | 0ºC ~ 45ºC (Charge) |
| -20ºC ~ 50ºC(Discharge) | |
| DOD: | 90% |
| Communication: | CAN2.0 / RS485 |
| Cycle Life: | >4000(100Ah@25ºC,0.5C,90%DOD)IP Grade |
| IP Grade: | IP65 |
| Installation: | Standing up mounting |
| Warranty: | 3Years |

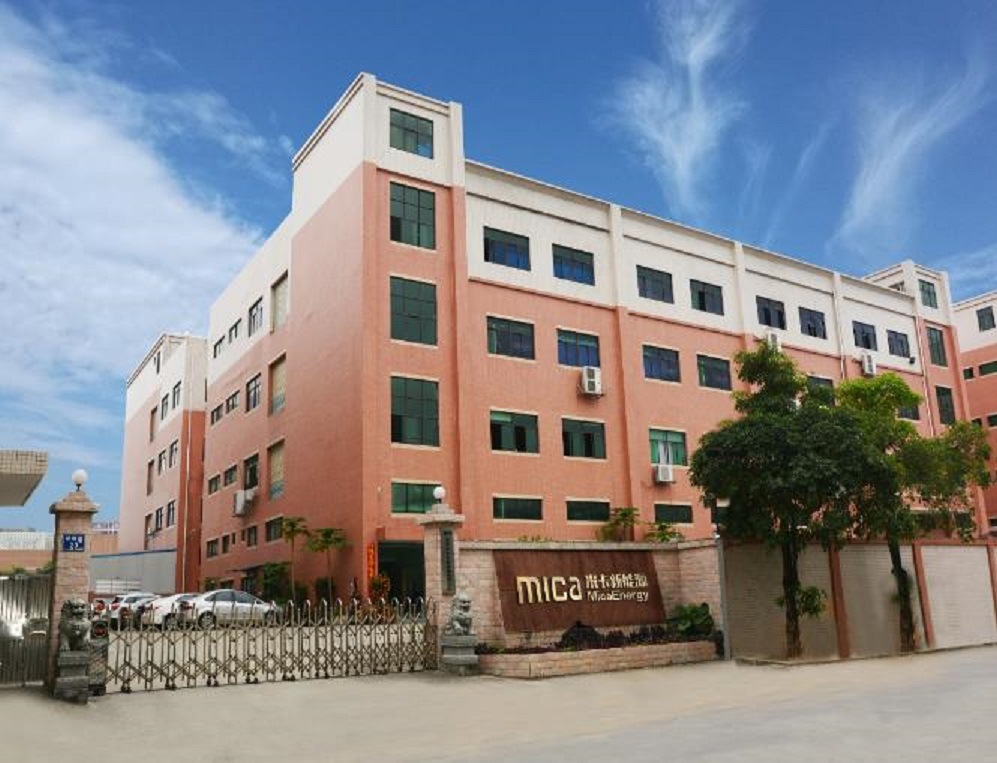

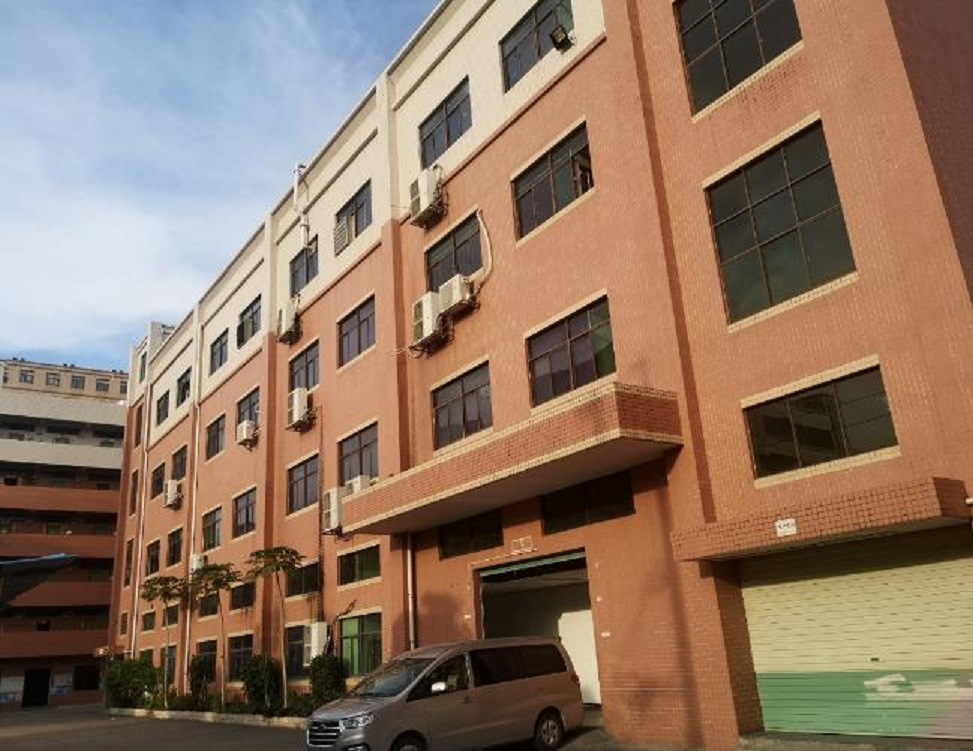

Lithium Battery Division: MICA New Power
Mica battery was set up on May 2009 is a private hi-tech company integrating Lithium battery R&D, manufacturing and sales. With registered capital of 10 million RMB and an area over 20 thousand square meters, the company. Up to 2012,the total investment capital has accumulated to over 100 million RMB.

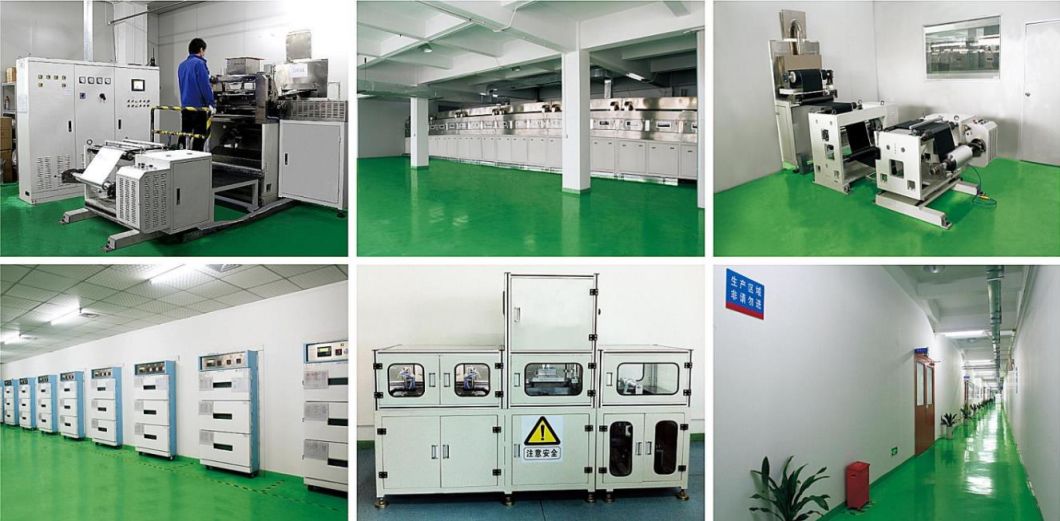

At present, the company has totally approx 1500 stuffs and obtains the most domestically-advanced automation equipment and leading producing technology. The daily production capacity of all kinds of Li-polymer and Al-Li-ion batteries amount to 200,000 units. All of these products are widely used in the communication fields and power battery field. We will increase investment and upgrade the daily production capacity of Li-polymer battery to 120,000 pieces, Al-Li-ion battery to 300,000 pieces to meet the ever-increasing needs of high-end market.
solar energy system battery
| Battery Type: | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage: | 51.2V |
| Nominal Capacity: | 100Ah |
| Nominal Energy: | 5.12KWh |
| Voltage window: | 44.0~58.0V |
| Dimension: | H665×W410×T179mm |
| Weight: | About 50.5KG |
| Rated. Charge Current: | 100Ah |
| Max. Continuous Discharge: | 200Ah |
| Max. Discharge DC Power: | 5000W |
| Maximum Discharge Current: | 100A |
| Rated Discharge Current: | 100A |
| Operation Temperature: | 0ºC ~ 45ºC (Charge) |
| -20ºC ~ 50ºC(Discharge) | |
| DOD: | 90% |
| Communication: | CAN2.0 / RS485 |
| Cycle Life: | >4000(100Ah@25ºC,0.5C,90%DOD)IP Grade |
| IP Grade: | IP65 |
| Installation: | Standing up mounting |
| Warranty: | 3Years |
Lithium Battery Division: MICA New Power
Mica battery was set up on May 2009 is a private hi-tech company integrating Lithium battery R&D, manufacturing and sales. With registered capital of 10 million RMB and an area over 20 thousand square meters, the company. Up to 2012,the total investment capital has accumulated to over 100 million RMB.
At present, the company has totally approx 1500 stuffs and obtains the most domestically-advanced automation equipment and leading producing technology. The daily production capacity of all kinds of Li-polymer and Al-Li-ion batteries amount to 200,000 units. All of these products are widely used in the communication fields and power battery field. We will increase investment and upgrade the daily production capacity of Li-polymer battery to 120,000 pieces, Al-Li-ion battery to 300,000 pieces to meet the ever-increasing needs of high-end market.
