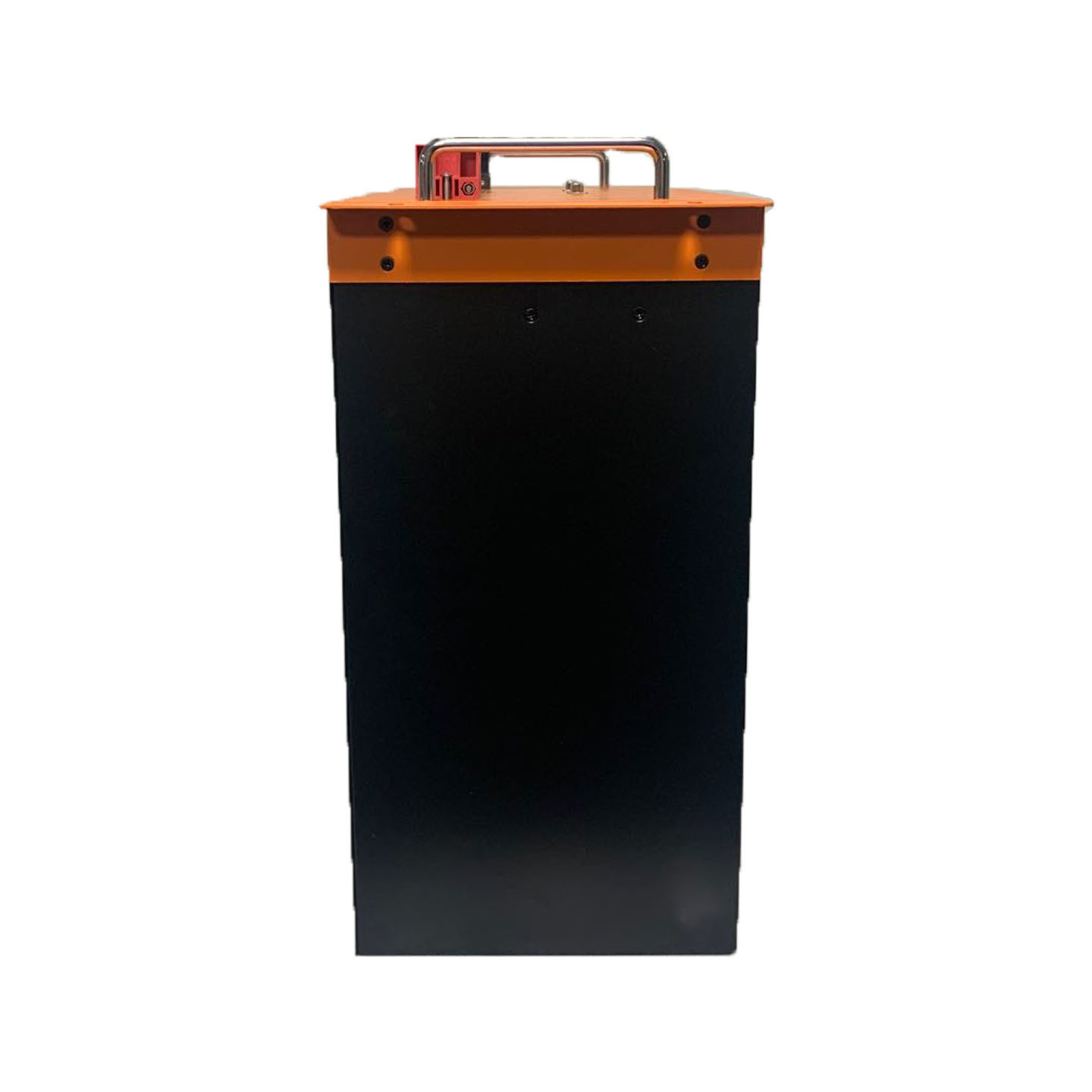

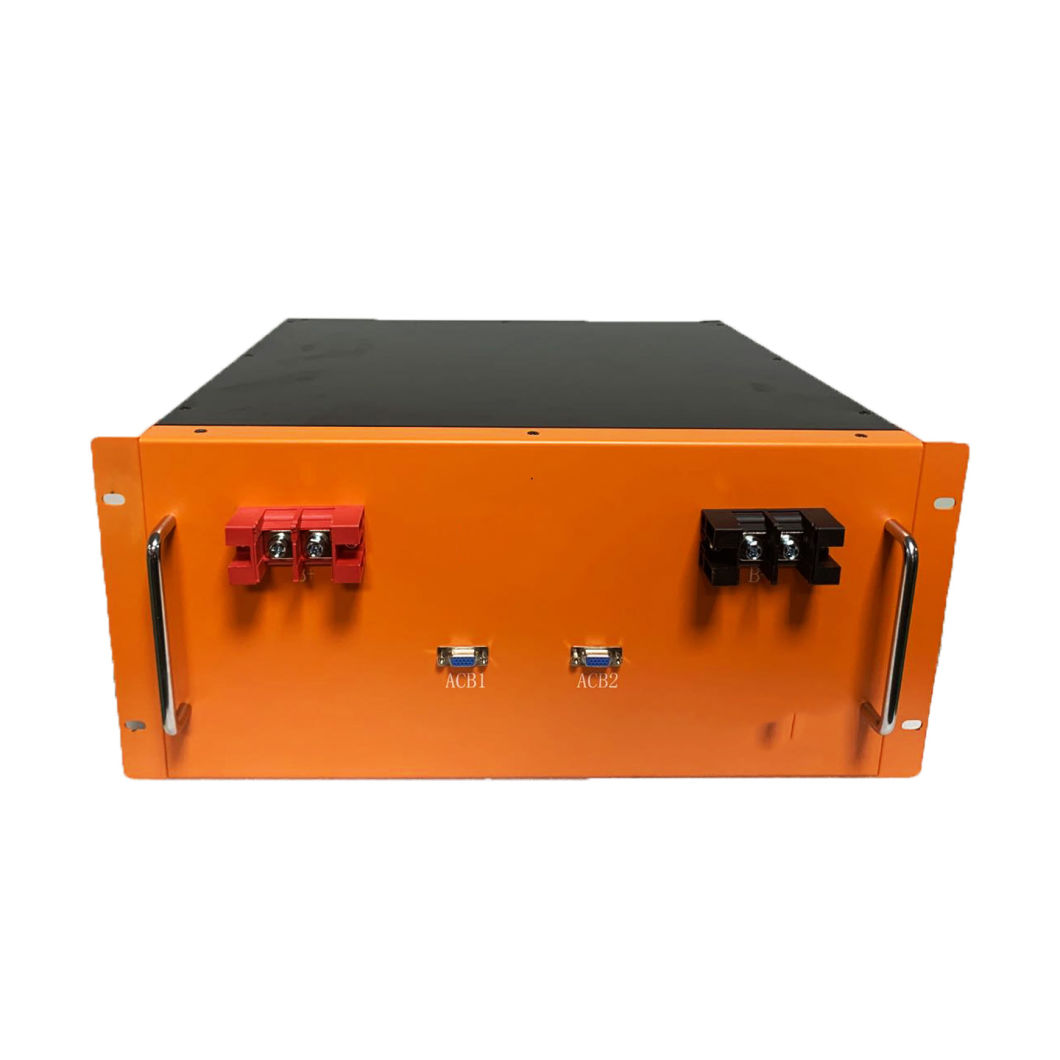

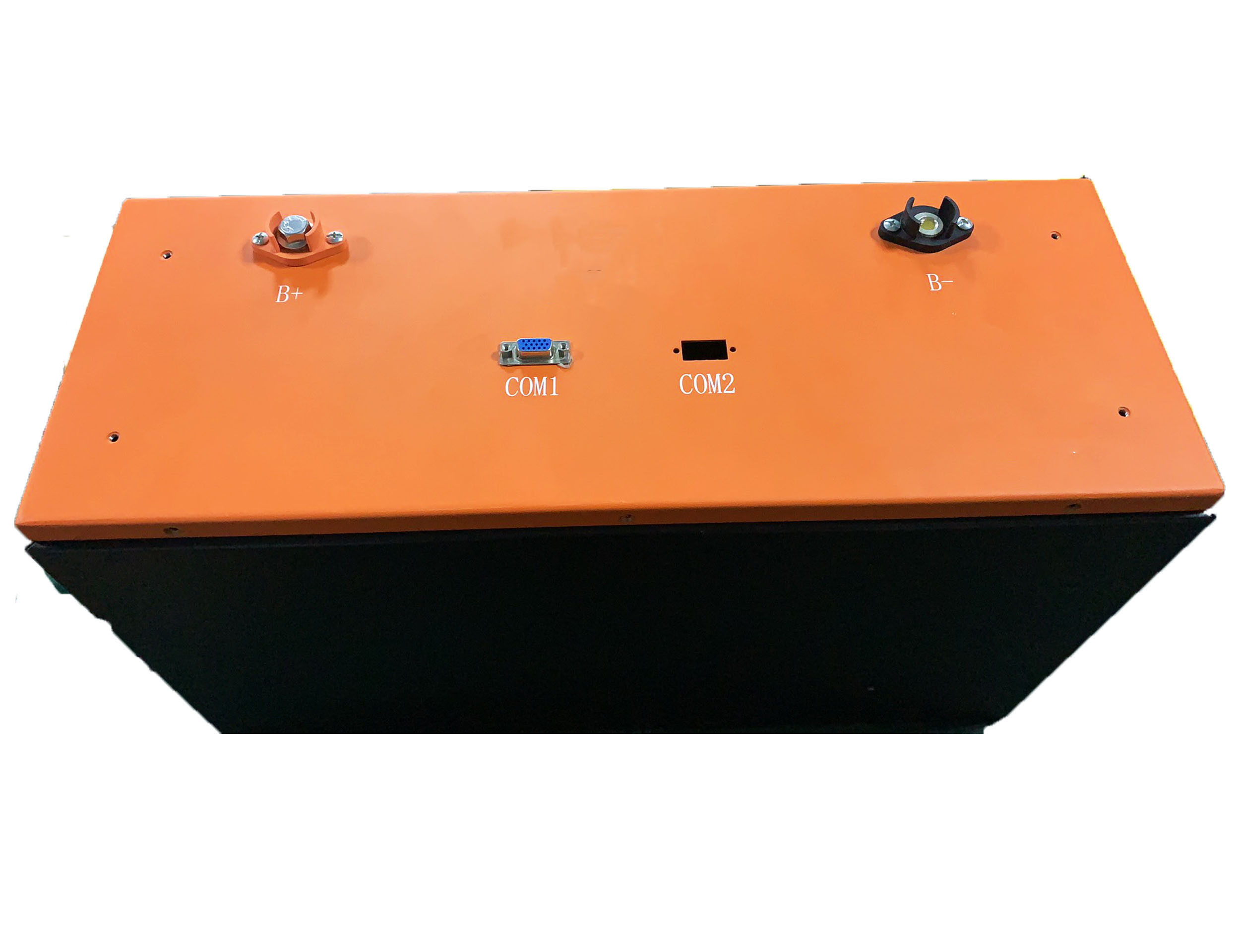

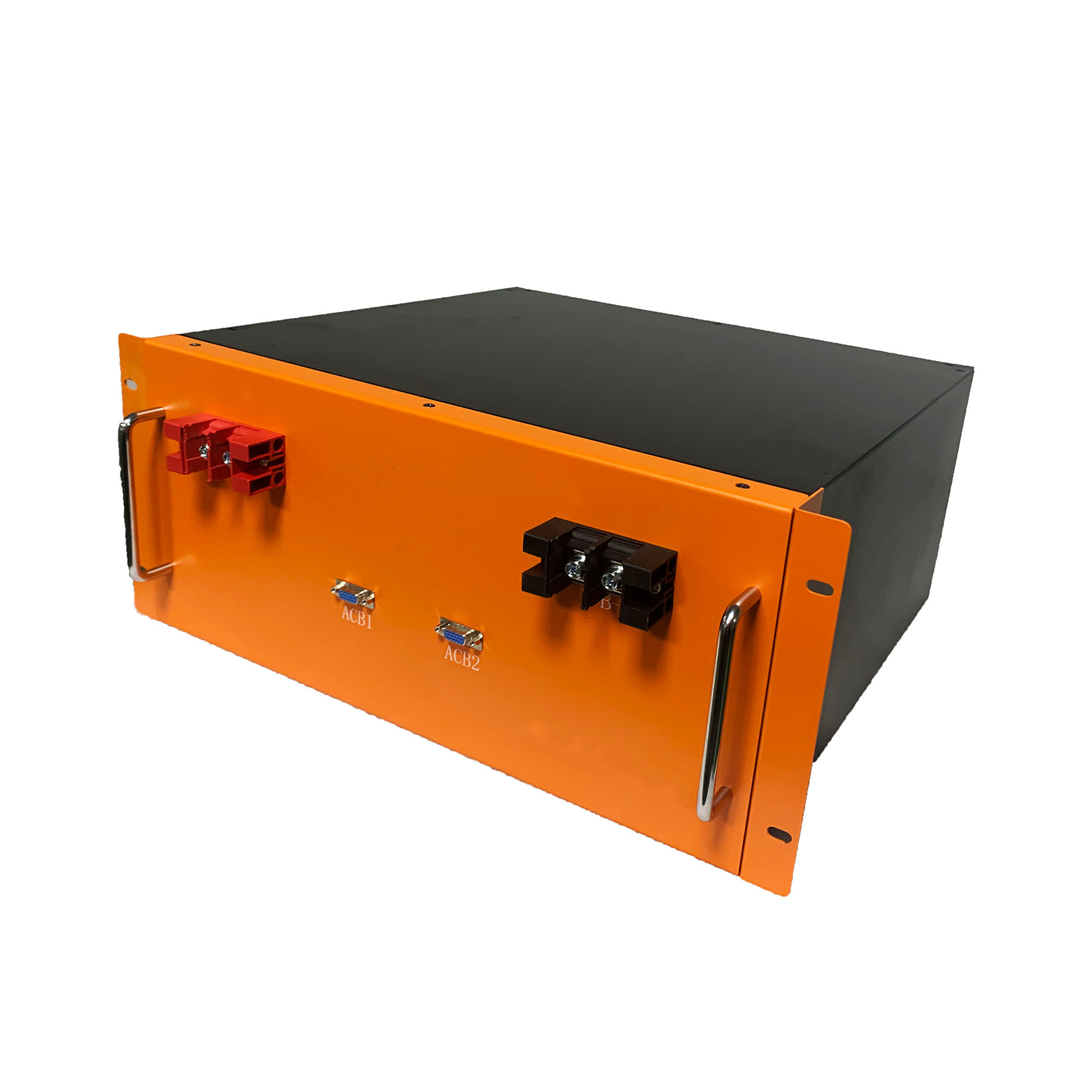

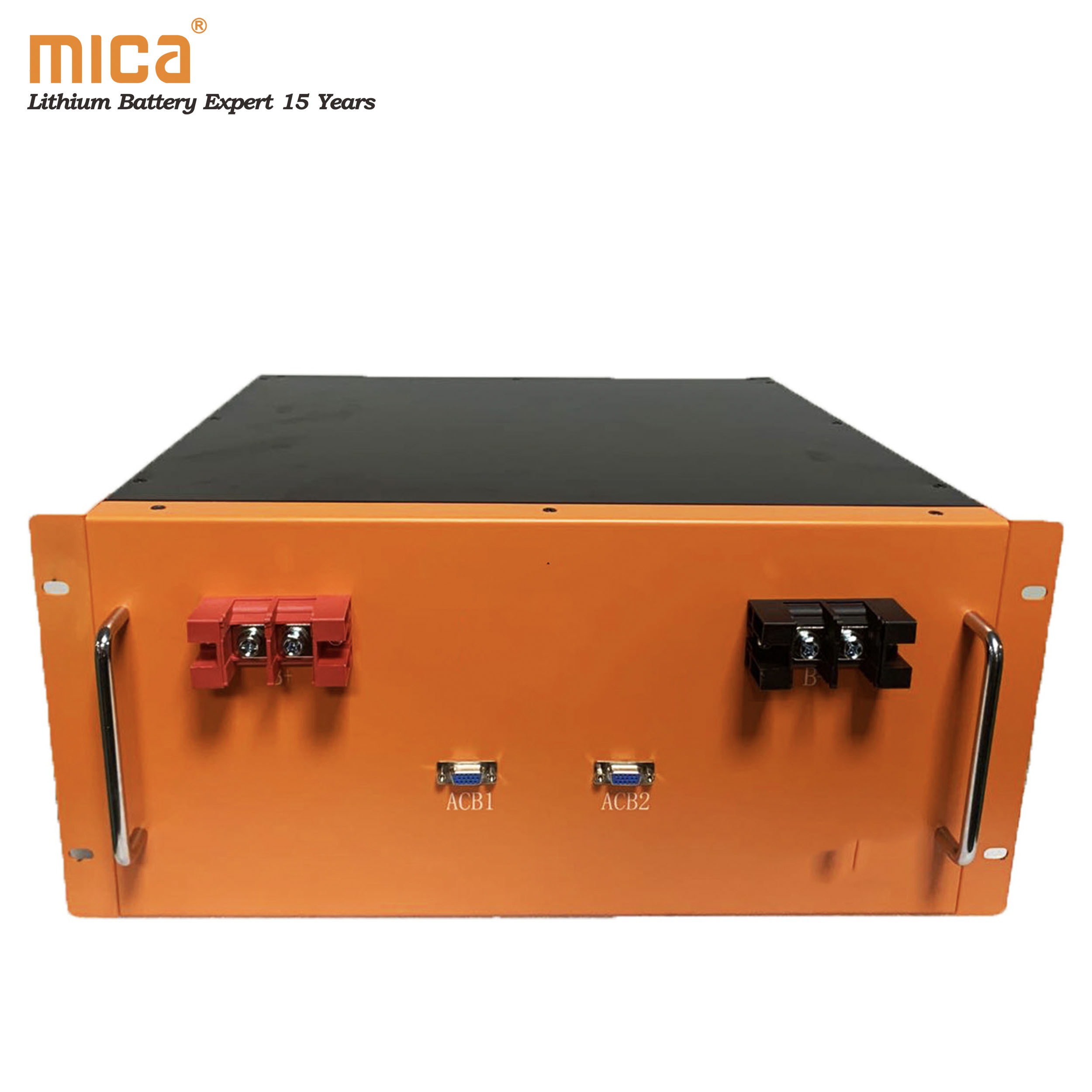

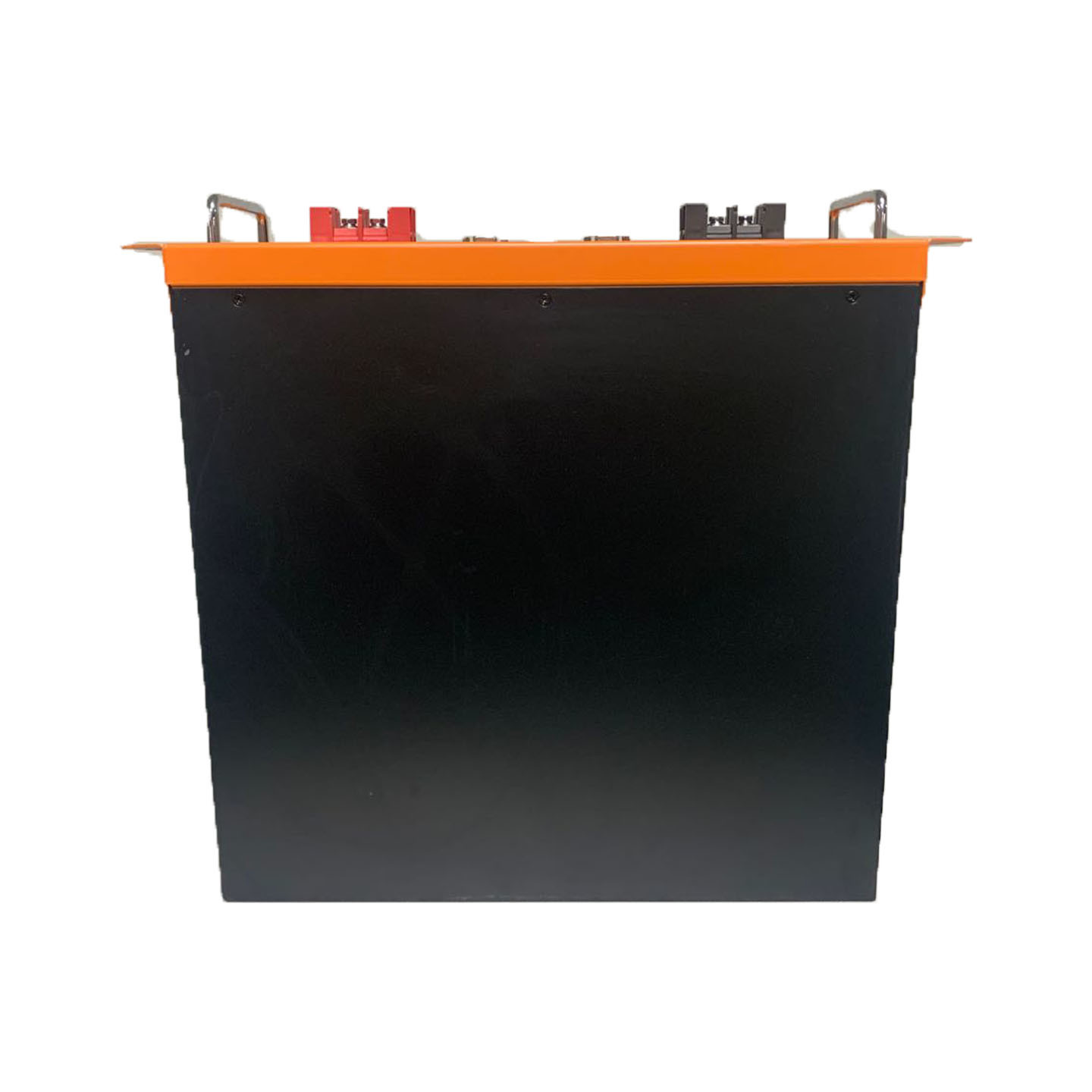

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Large
Battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah@25ºC,C10 |
| Nominal Energy | 5120Wh@25ºC,C10 |
| Operation Voltage | 40~58.4V |
| Operation Temperature | Charge: 0°C - 45°C Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (5120Wh25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (4096Wh25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (2560Wh25ºC,C10) |
| Dimension | 442 x 440 x 223mm (W x D x H) |
| Communication | RS485/RS232/CAN optional |
| Weight | ~48 kg |
| Warranty Period | 3 years |
| Environment Protection | IP54 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Charge Current Max | 50A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
