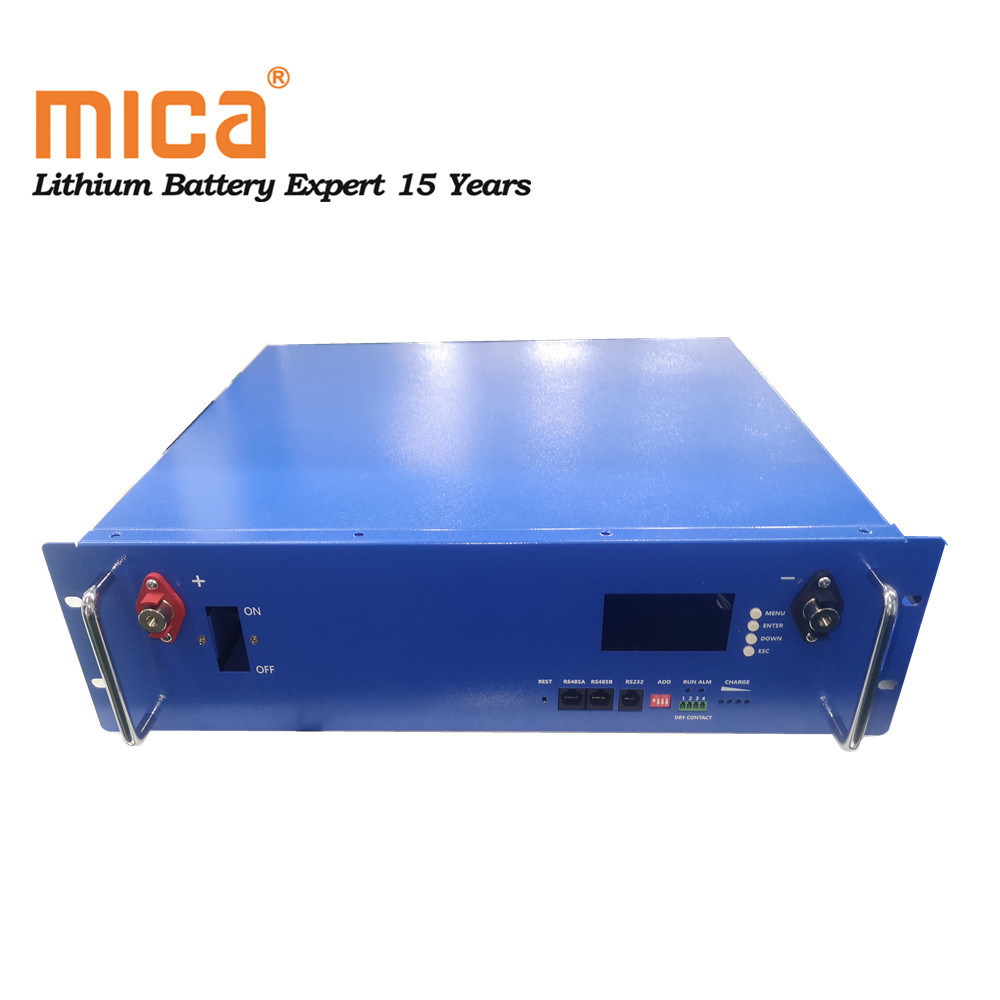

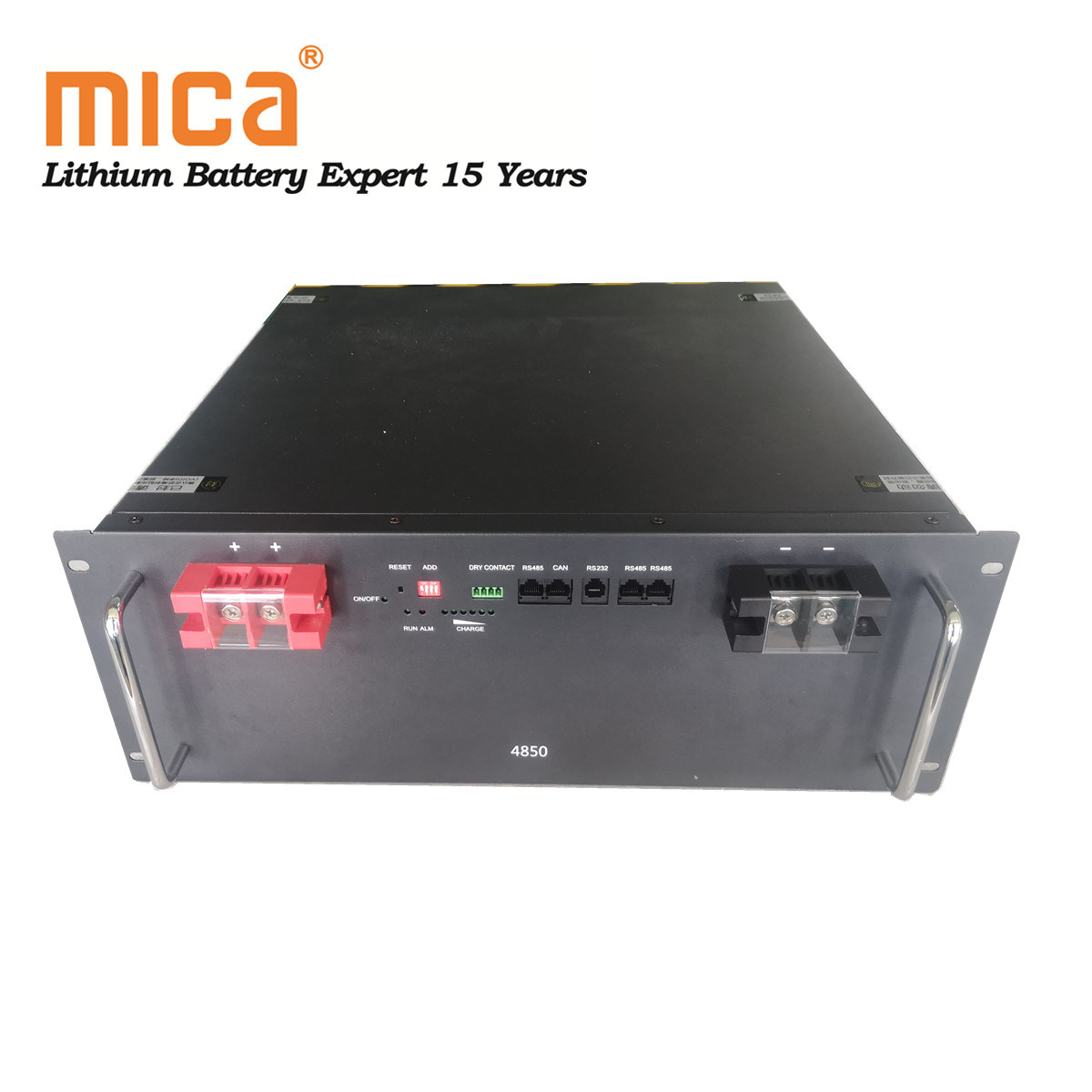

ISO CB IEC62619 48V 50ah 100ah 3u 4u 5u LiFePO4 Battery 5kwh 7.5kwh 10kwh Lithium Iron Phosphate Battery Pack off-Grid/on-Grid Solar Energy Storage Battery

Share to:

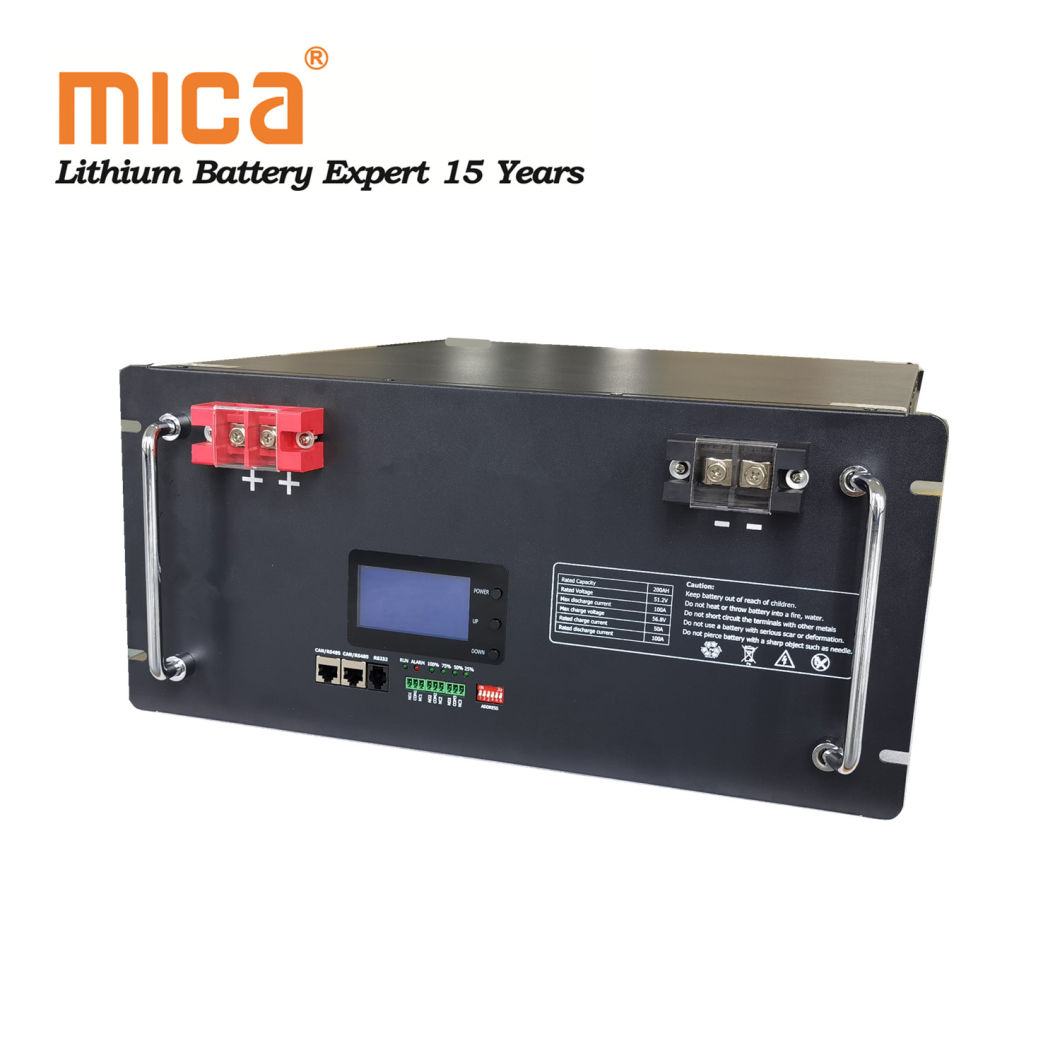

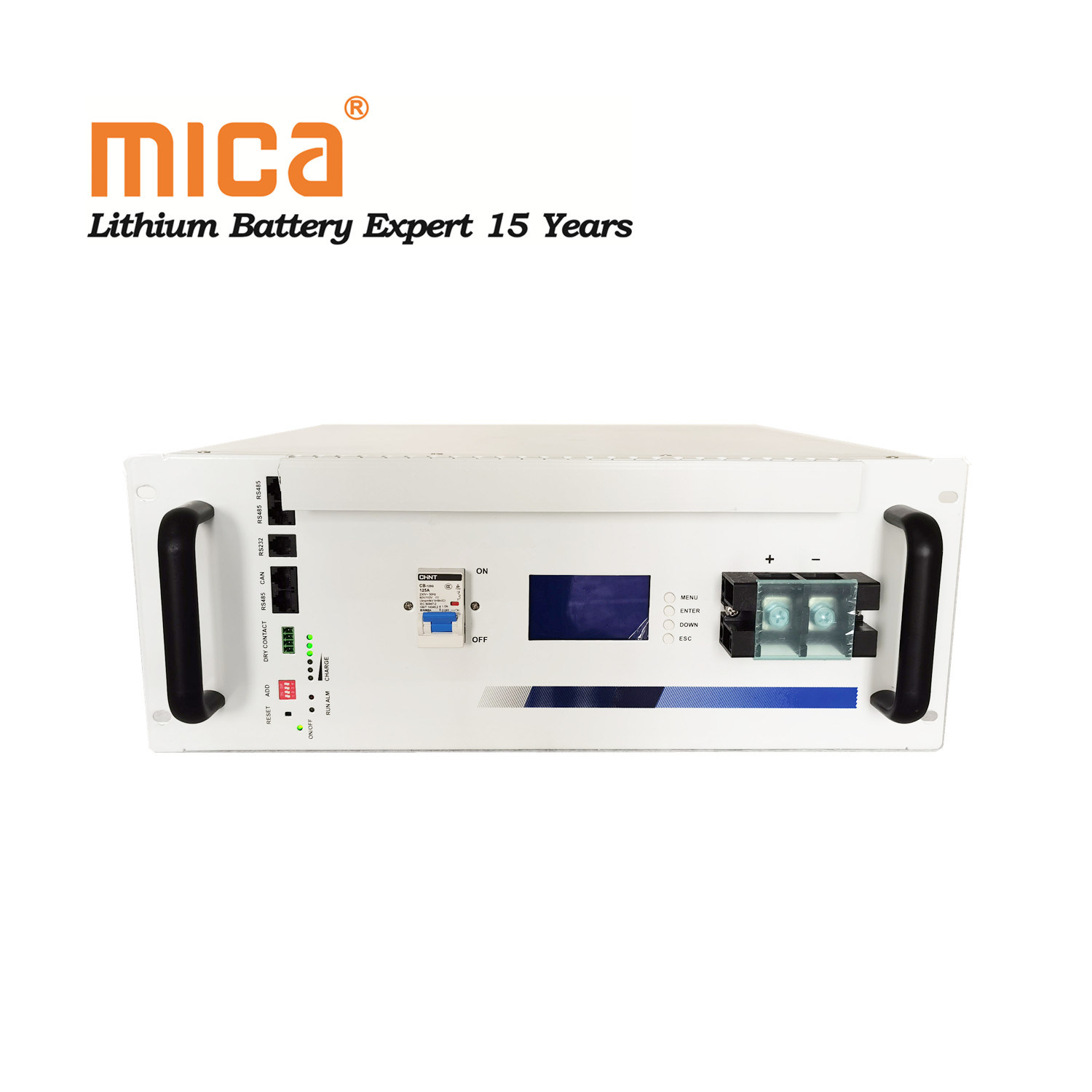

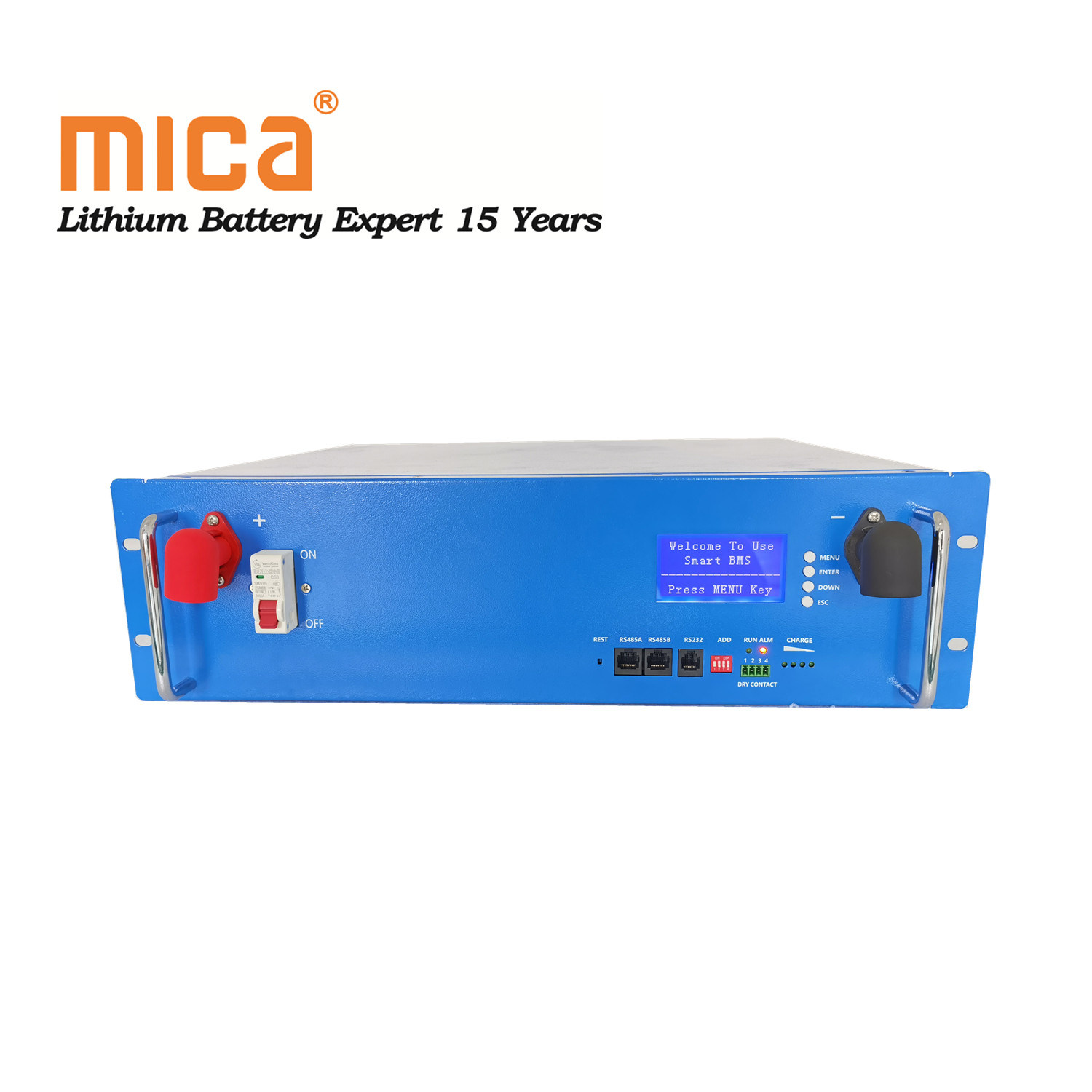

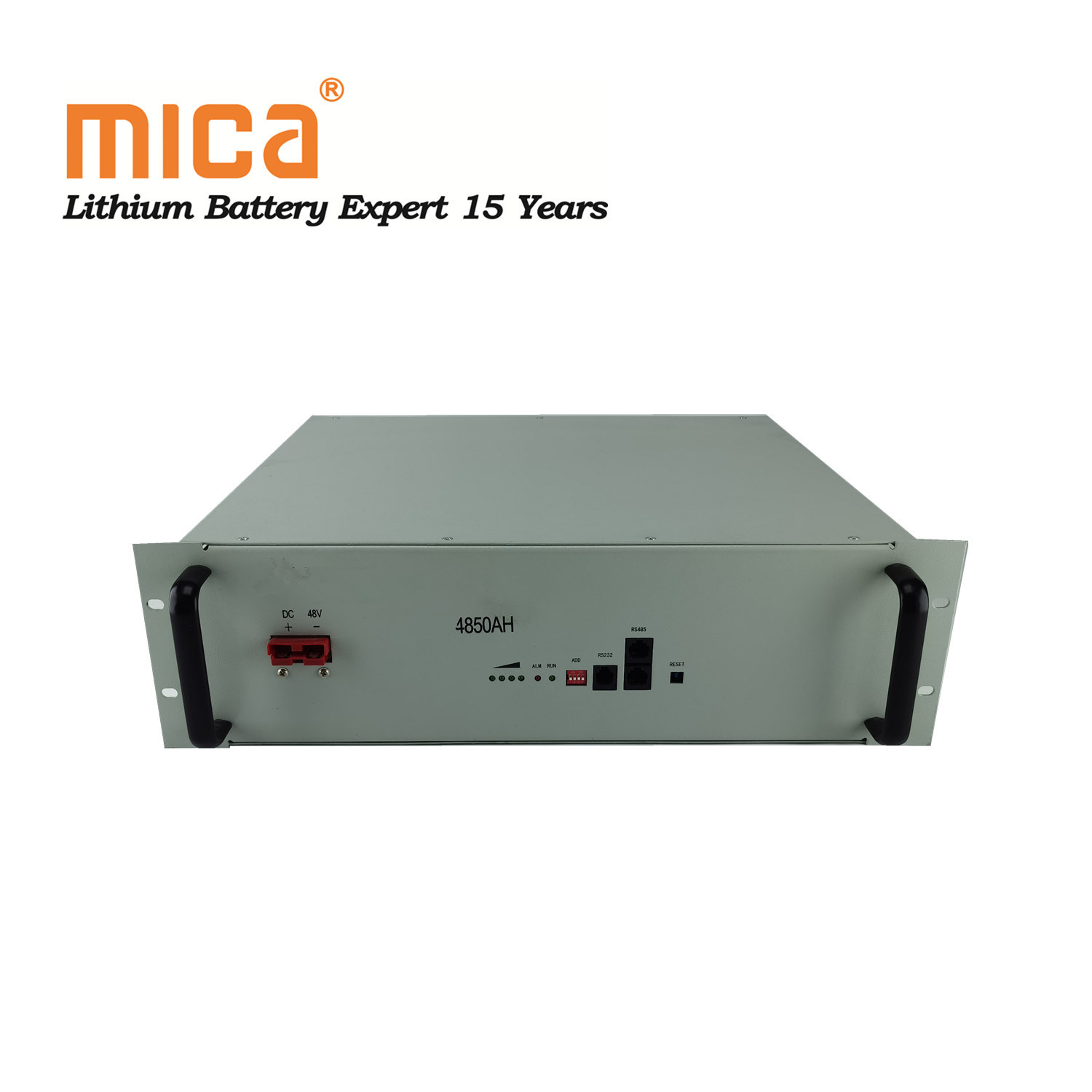

ISO CB IEC62619 48V 50ah 100ah 3u 4u 5u LiFePO4 Battery 5kwh 7.5kwh 10kwh Lithium Iron Phosphate Battery Pack off-Grid/on-Grid Solar Energy Storage Battery

Nominal Voltage:
48V
Warranty:
5 Years
Nominal Capacity:
50ah

Availability:



Inquire Add to Basket

Product Description

Specification

Items	Parameter
Battery model	MC-48V
Nominal voltage	51.2V
Minimum capacity	50Ah/100Ah/200Ah@25ºC
Charging voltage	58.4V
Discharging cut-off voltage	40V
Standard charging	0.2C /58.4V
Max charging	100A /58.4V
Standard discharging	50A/40V
Max discharging	continuous discharge	50A/40V
	peak discharge	100A/40V
Standard Charging mode	CC/CV
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )	-10ºC~25ºC	(12 months ≥85% )
	-10ºC ~45ºC	(6 months ≥85% )
	-10ºC~55ºC	(1 month ≥90% )
	20±5ºC is the recommended storage temperature
Visual Inspection	There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Self-discharge Rate	<2% per month

Company Profile
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business. Facility Aare: 15000 square meters; Employee: 1000.
We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept.
ISO CB IEC62619 48V 50ah 100ah 3u 4u 5u LiFePO4 Battery 5kwh 7.5kwh 10kwh Lithium Iron Phosphate Battery Pack off-Grid/on-Grid Solar Energy Storage Battery

Certificate
ISO CB IEC62619 48V 50ah 100ah 3u 4u 5u LiFePO4 Battery 5kwh 7.5kwh 10kwh Lithium Iron Phosphate Battery Pack off-Grid/on-Grid Solar Energy Storage Battery

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.

2,Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
