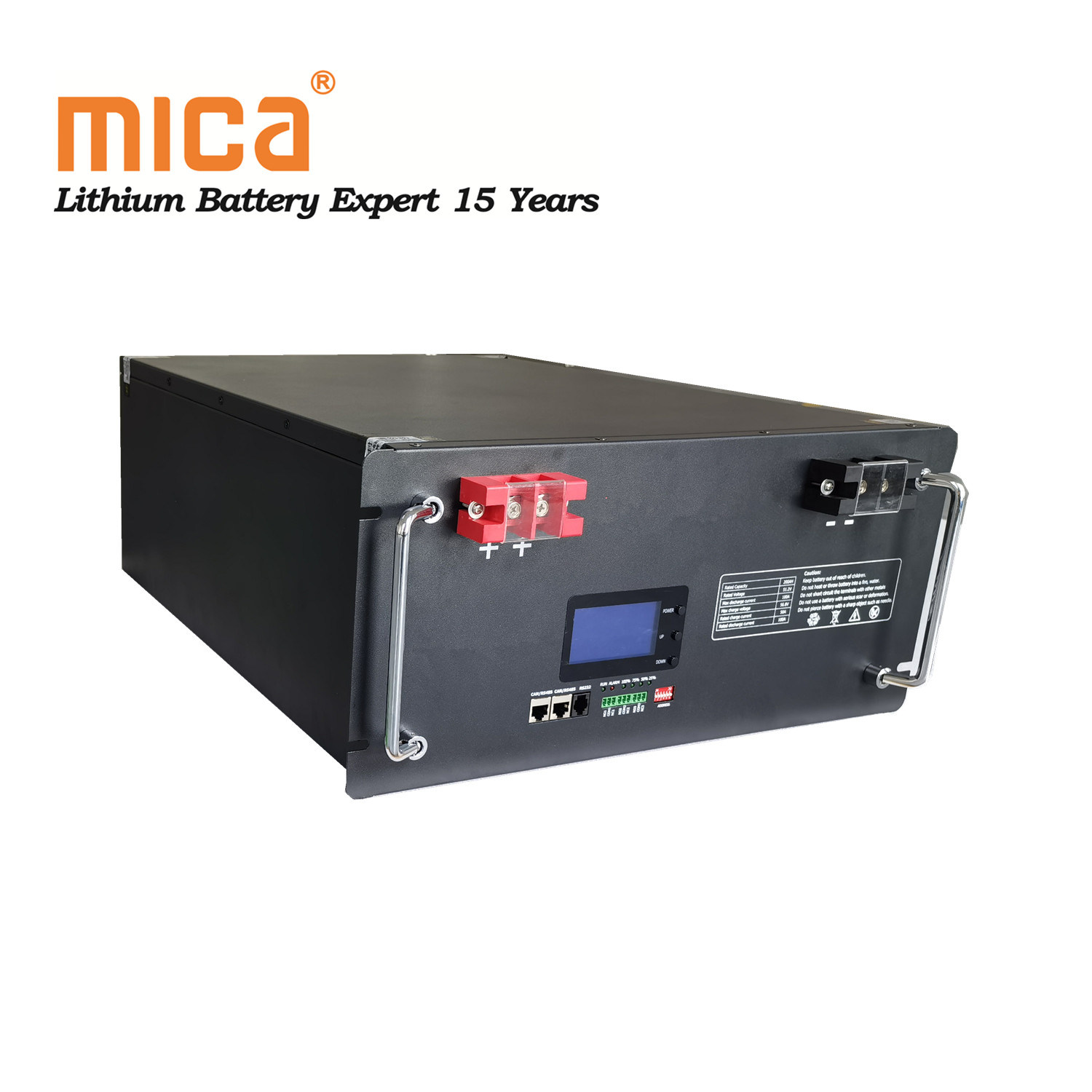

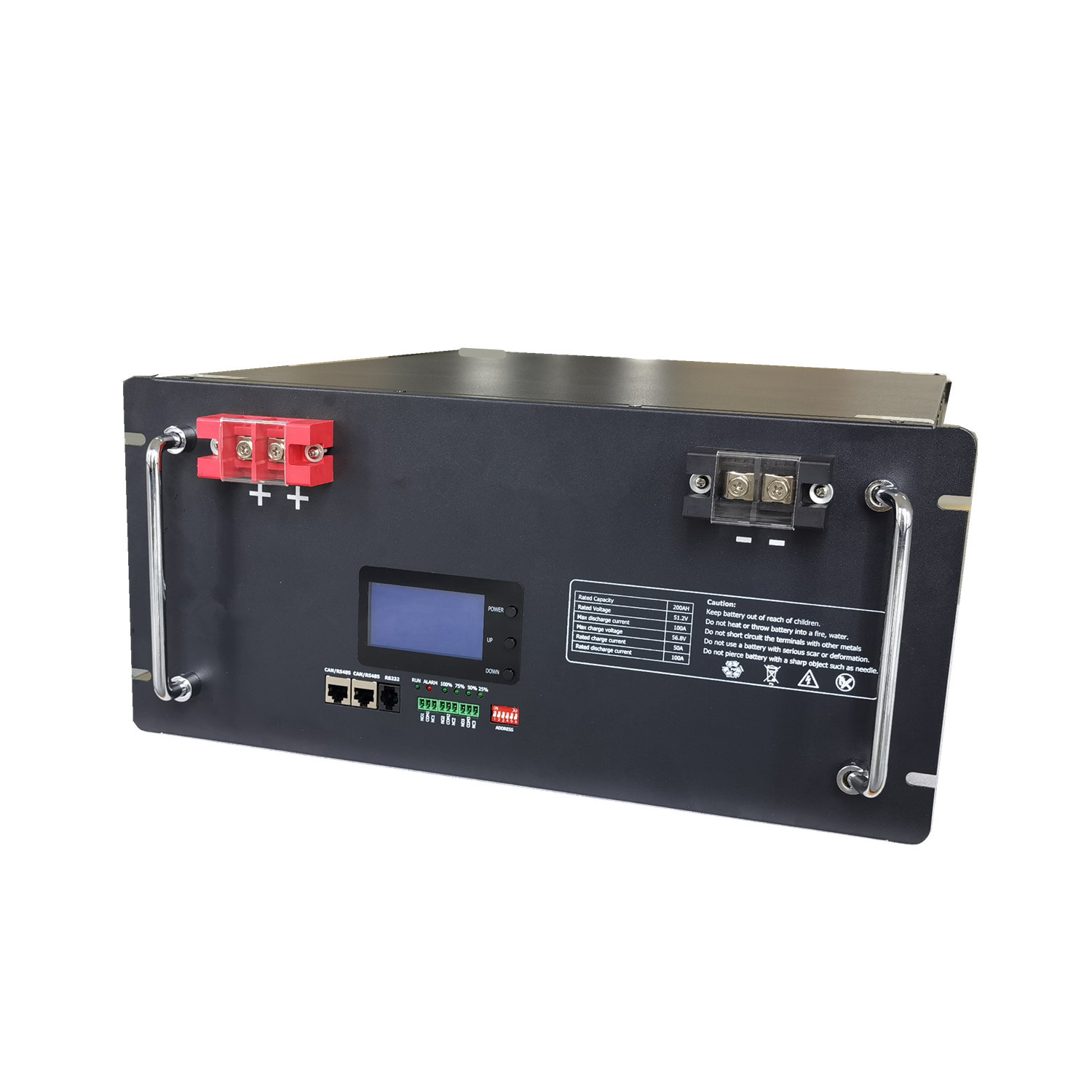

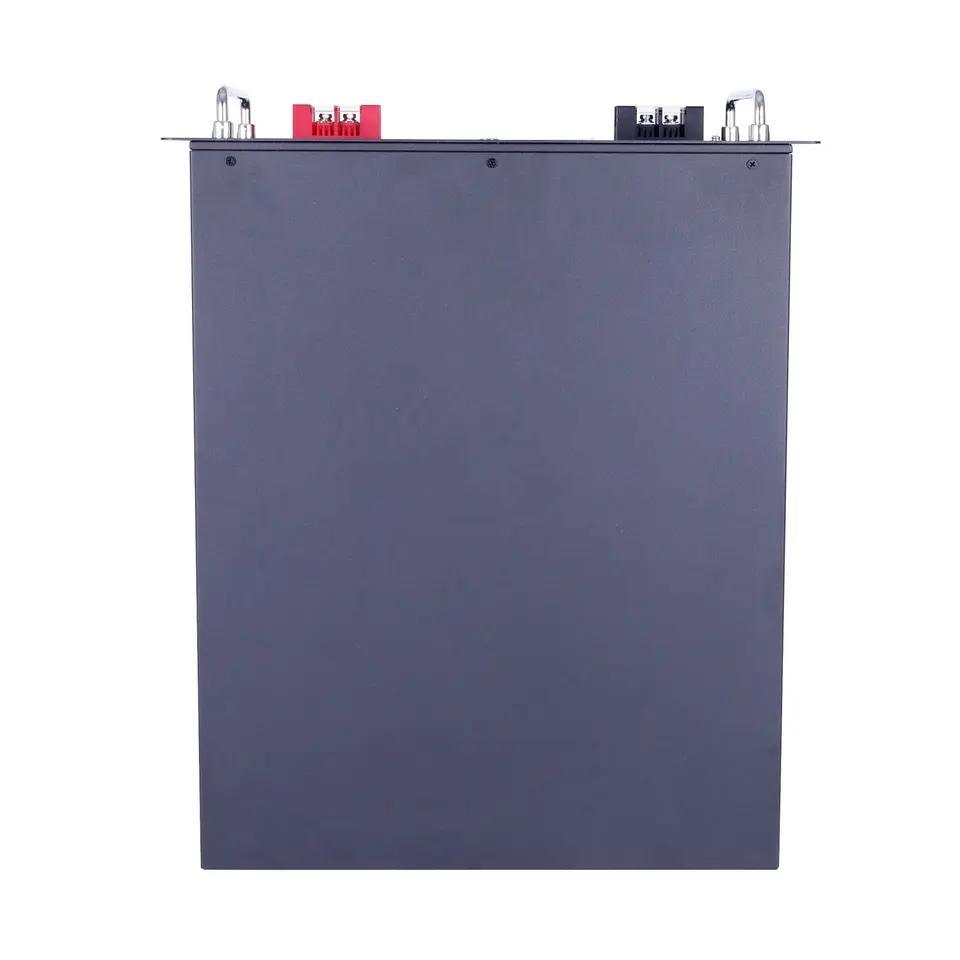

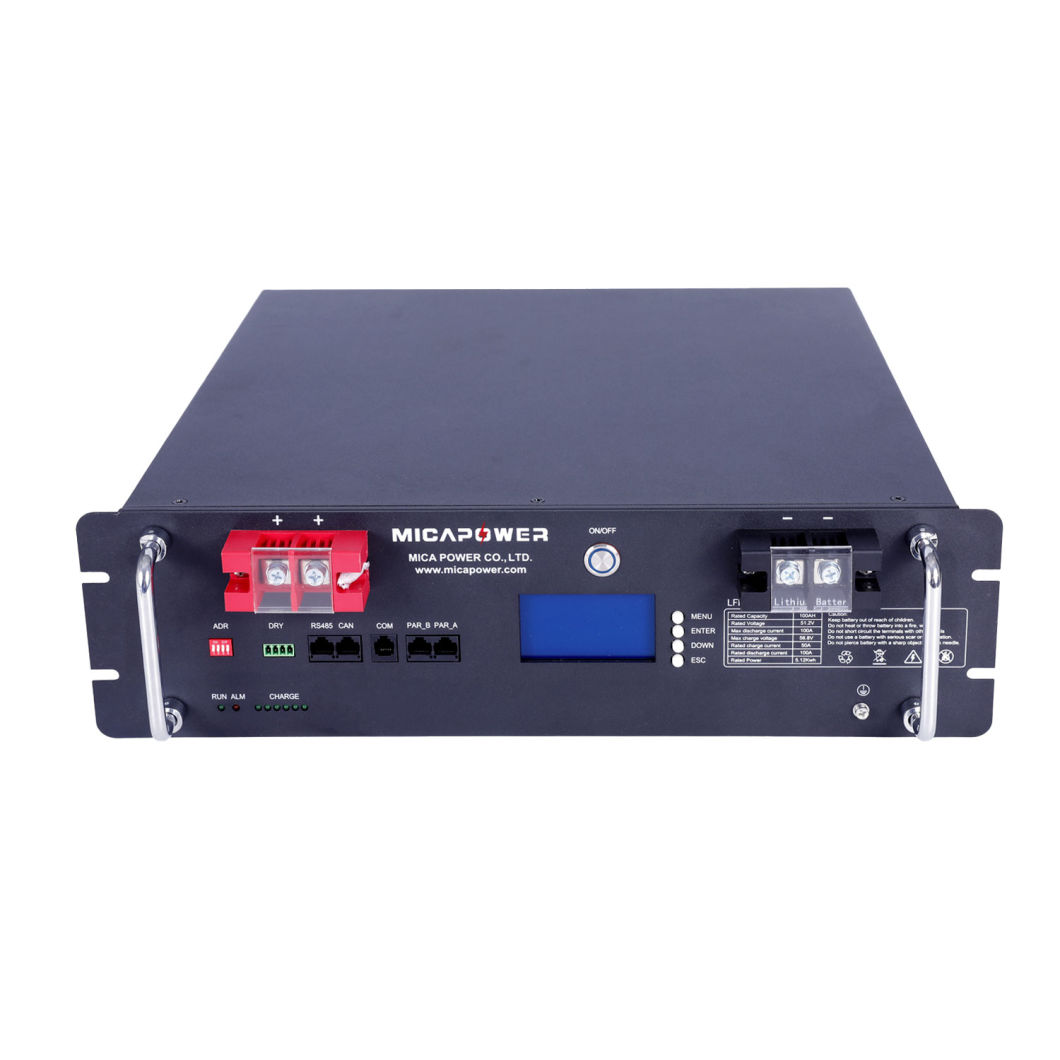

Factory Price 5/10/20kwh 25.6V/48V 51.2V 100ah 200ah 50ah Lithium Ion Battery LiFePO4 Battery Pack Rack Mounted Battery Module for Solar Energy Storage System

Share to:

Factory Price 5/10/20kwh 25.6V/48V 51.2V 100ah 200ah 50ah Lithium Ion Battery LiFePO4 Battery Pack Rack Mounted Battery Module for Solar Energy Storage System

Type:
LiFePO4
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable

Availability:



Inquire Add to Basket

Product Description

Battery model	MC48100LFP
Nominal voltage	48V
Minimum capacity	100Ah@25ºC
Battery Usable Energy	4.8kWh
Charging voltage	54.4 V±0.2V
Discharging cut-off voltage	42V
BMS Protection Current	120 A,1 s
Max Charge Current	50A
Peak Charge Current	100A
Max charging	1.0C /54V
Max discharging	continuous discharge 100A
Operation voltage	39V~54.6V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C

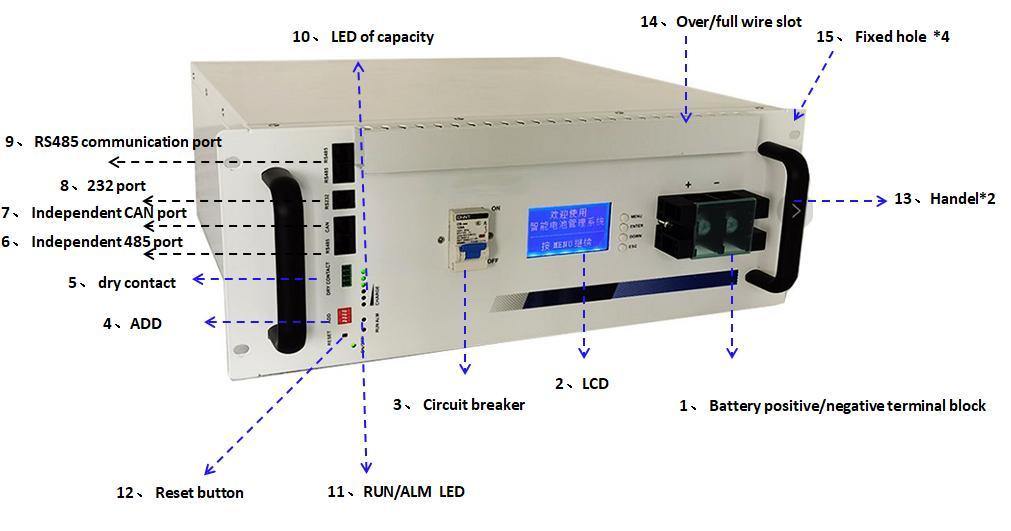

Display	SOC status indicator,LED indicator
Communication	RS485 /RS232
Cycle Life	4000 Cycles@80% DOD/25ºC/0.5C
Protection Rating	IP55
Application	ON Grid /ON Grid+Backup/OFF grid
Warranty	3~5years

Why choose us?

More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years'
experience in rechargeable battery. Our factory covers an area of 15,000 square meters and
has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing.
With the support of a professional and dedicated engineering and operation team, we are available to
bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color,
package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have
got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high
energy density, high power density, small volume, light weight,long service life, low self-discharge,
flexible and varied shapes, safety performance and so on.

Factory Price 5/10/20kwh 25.6V/48V 51.2V 100ah 200ah 50ah Lithium Ion Battery LiFePO4 Battery Pack Rack Mounted Battery Module for Solar Energy Storage System

Factory Price 5/10/20kwh 25.6V/48V 51.2V 100ah 200ah 50ah Lithium Ion Battery LiFePO4 Battery Pack Rack Mounted Battery Module for Solar Energy Storage System To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.

2,Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
