48V
120ah
5760wh
37.5~54.75V
~48 Kg
RS485/RS232/Can Optional
Features:
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 48V |
| Nominal Capacity | 120Ah 25ºC,C10 |
| Nominal Energy | 5760Wh 25ºC,C10 |
| Operation Voltage | 37.5~54.75V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (5760Wh 25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (4608Wh 25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (2880Wh 25ºC,C10) |
| Dimension | 442 x 440 x 223mm (W x D x H) |
| Communication | RS485/RS232/CAN optional |
| Weight | ~48 kg |
| Warranty Period | 3 years |
| Environment Protection | IP54 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 54.75V |
| Discharge Cut-off Voltage | 37.5V |
| Charge Current Max | 60A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |

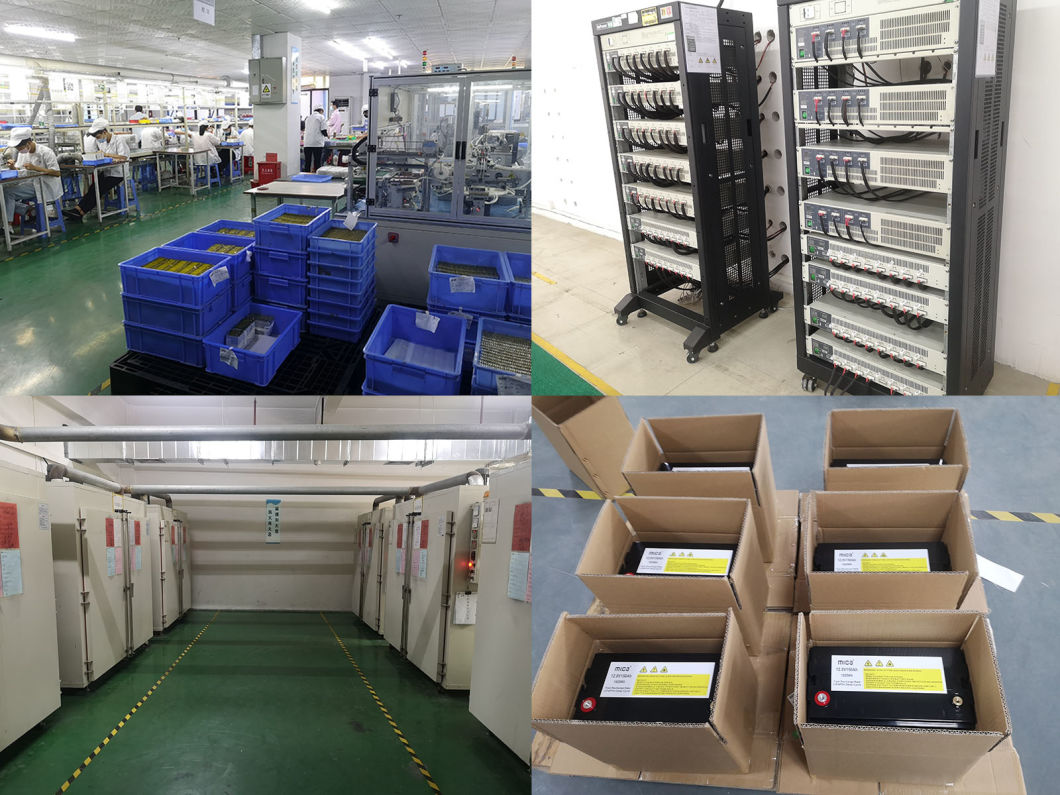

More than 15 Years' Experience in Lithium Battery
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs.
Li ion battery is 2000pcs/3000pcs.
More quantity has better price.
Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
