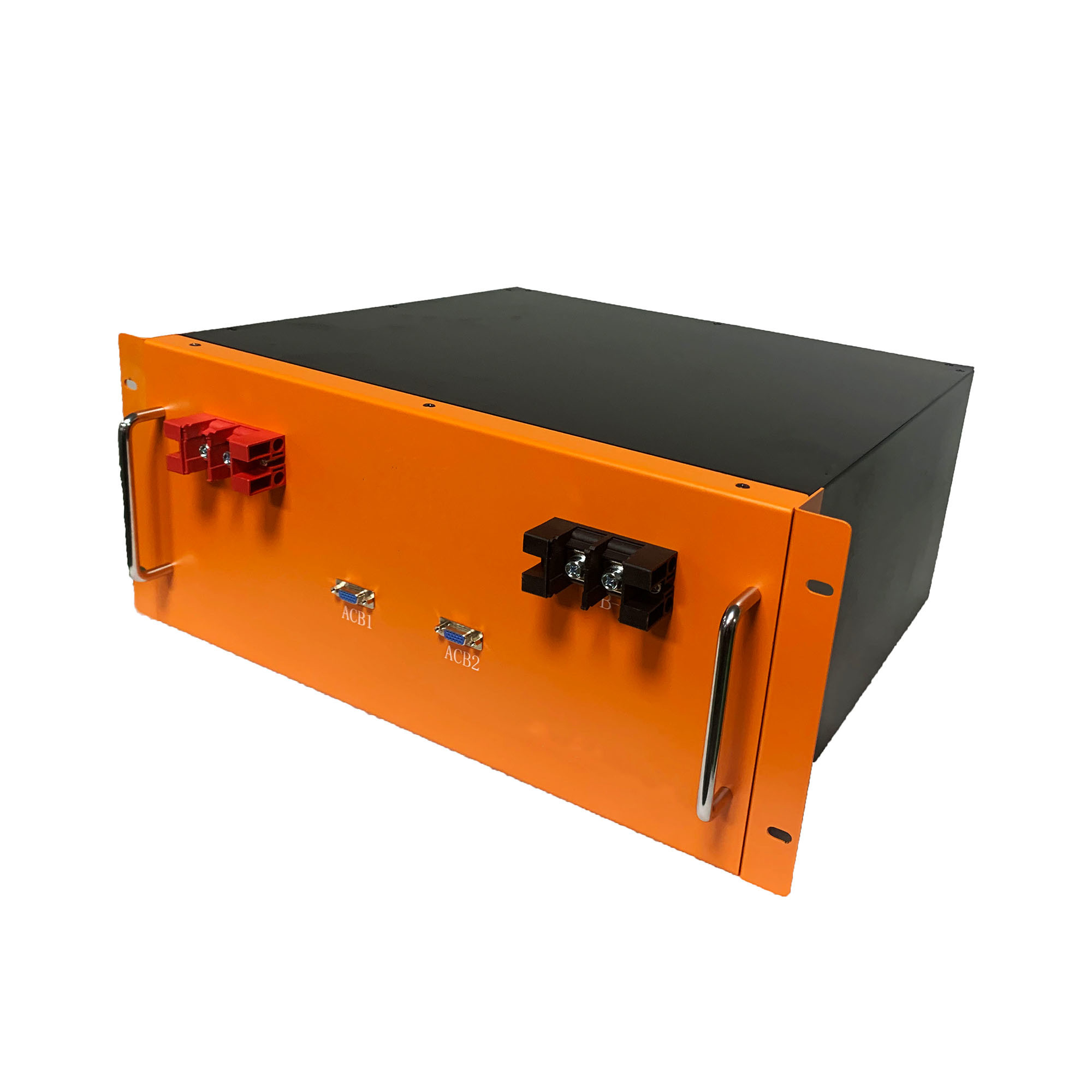

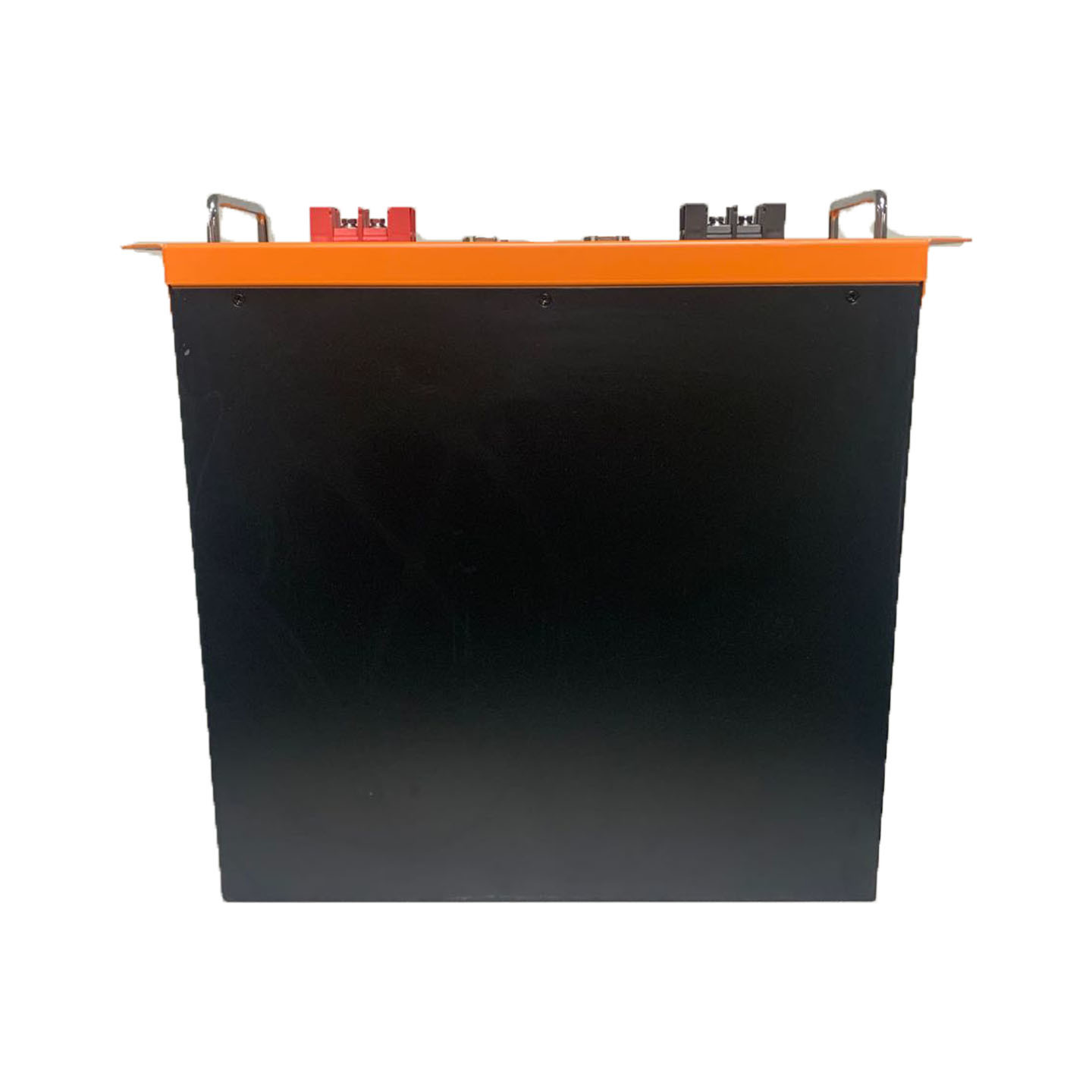

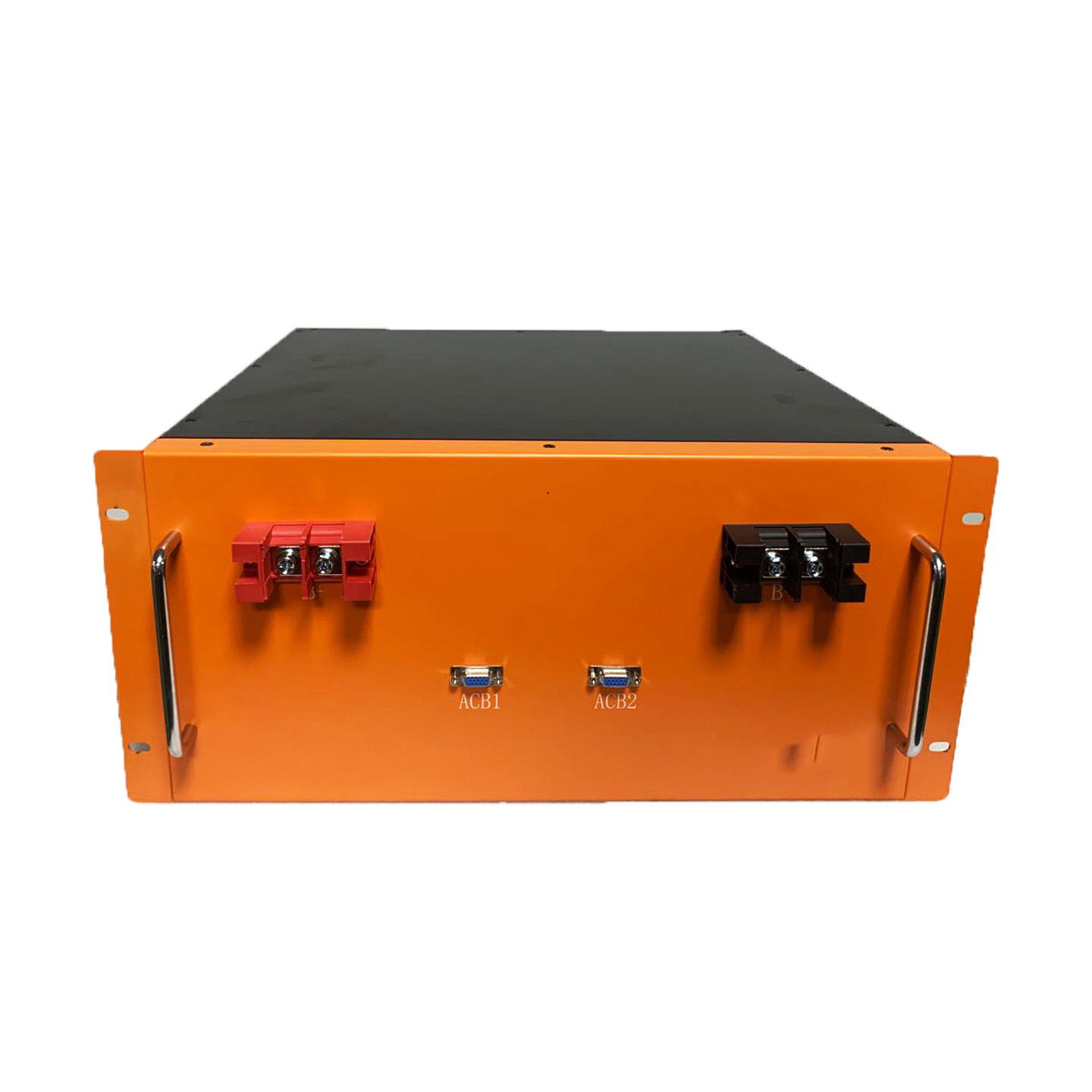

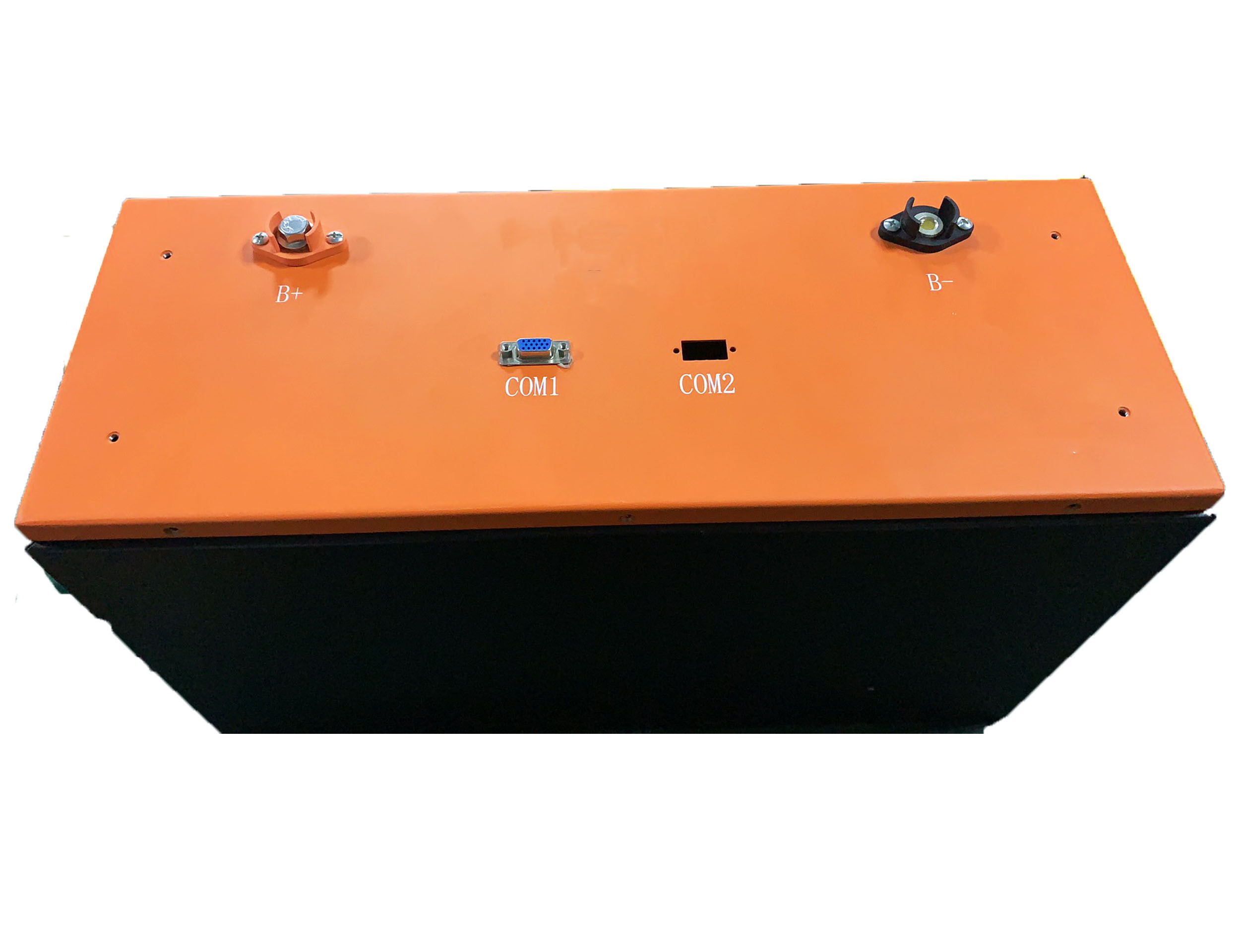

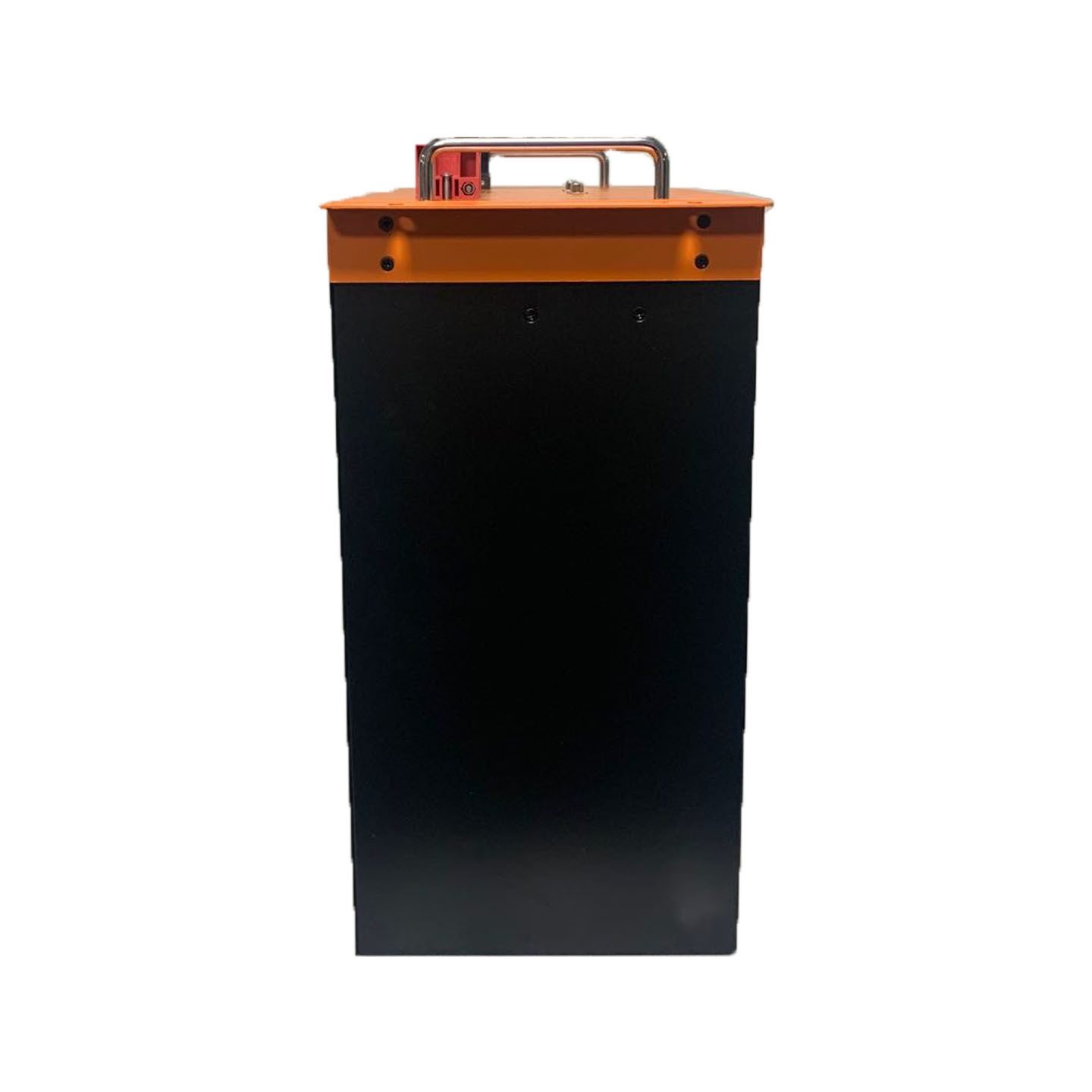

Factory Directly Supply 48V 100ah LiFePO4 Battery Lithium Battery with BMS Customized for Solar Energy Storage System off-Grid Inverter Marine Boat

Share to:

Factory Directly Supply 48V 100ah LiFePO4 Battery Lithium Battery with BMS Customized for Solar Energy Storage System off-Grid Inverter Marine Boat

Nominal Voltage:
48V, 51.2V
Nominal Capacity:
100ah
Nominal Energy:
5120wh
Operation Voltage:
40~58.4V
Weight:
~48 Kg
Communication:
RS485/RS232/Can Optional

Availability:



Inquire Add to Basket

Product Description

Features:

• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP54)
• Highly durable metal enclosure
• Environment friendly

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	51.2V
Nominal Capacity	100Ah@25ºC,C10
Nominal Energy	5120Wh@25ºC,C10
Operation Voltage	40~58.4V
Operation Temperature	Charge: 0°C - 45°C Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (5120Wh25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (4096Wh25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (2560Wh25ºC,C10)
Dimension	442 x 440 x 223mm (W x D x H)
Communication	RS485/RS232/CAN optional
Weight	~48 kg
Warranty Period	3 years
Environment Protection	IP54

BMS/Charge/Discharge
Charge Voltage Max	58.4V
Discharge Cut-off Voltage	40V
Charge Current Max	50A
Discharge Current Max	100A continues 200A burst (10seconds)
Self-discharge Rate	<2% per month
Protection	Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection

More than 15 Years' Experience in Lithium Battery

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight, long service life, low self-discharge, flexible and varied shapes, safety performance and so on

Factory Directly Supply 48V 100ah LiFePO4 Battery Lithium Battery with BMS Customized for Solar Energy Storage System off-Grid Inverter Marine Boat

Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.

Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs.
Li ion battery is 2000pcs/3000pcs.
More quantity has better price.

Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.

Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.

Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
