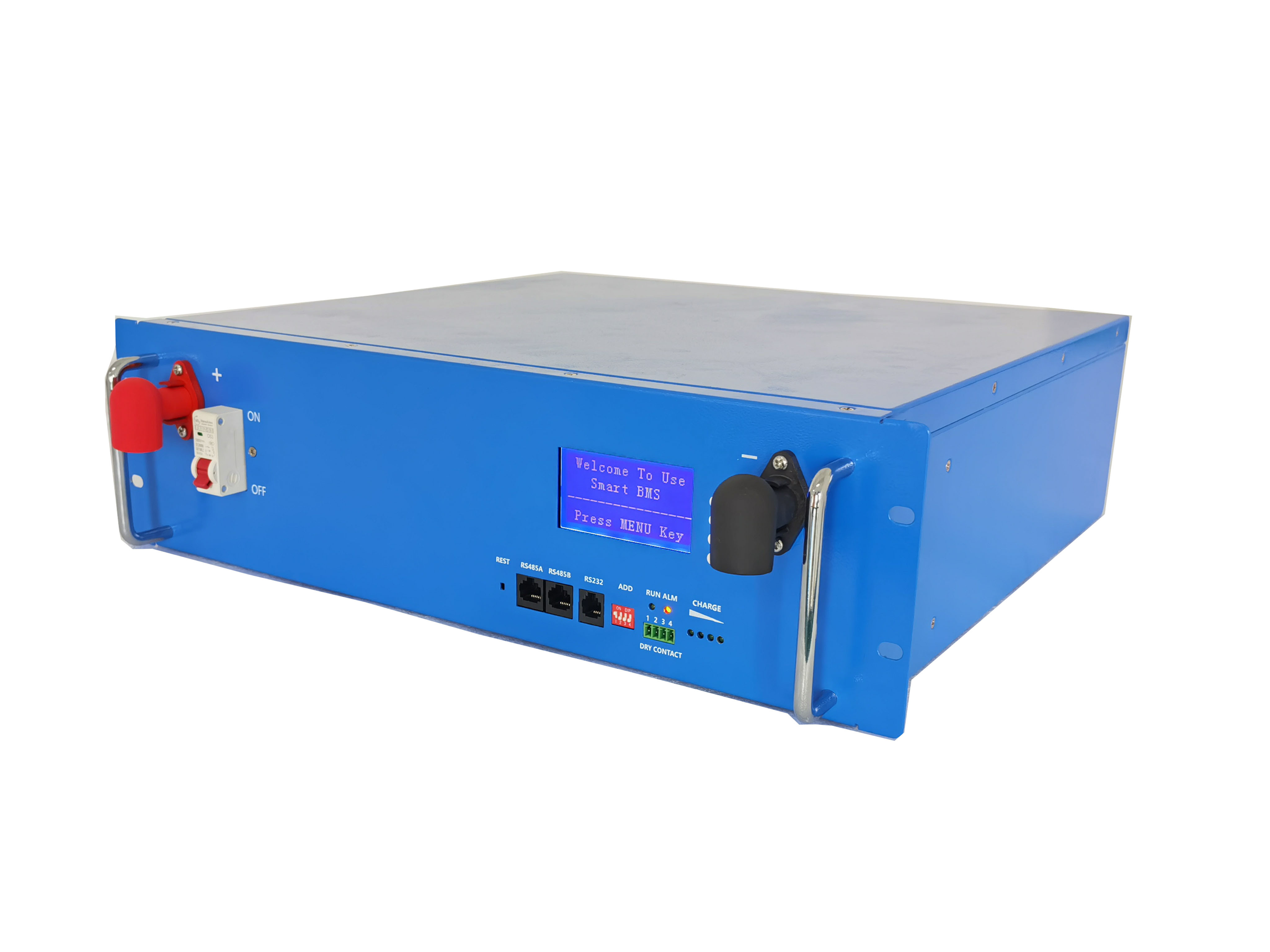

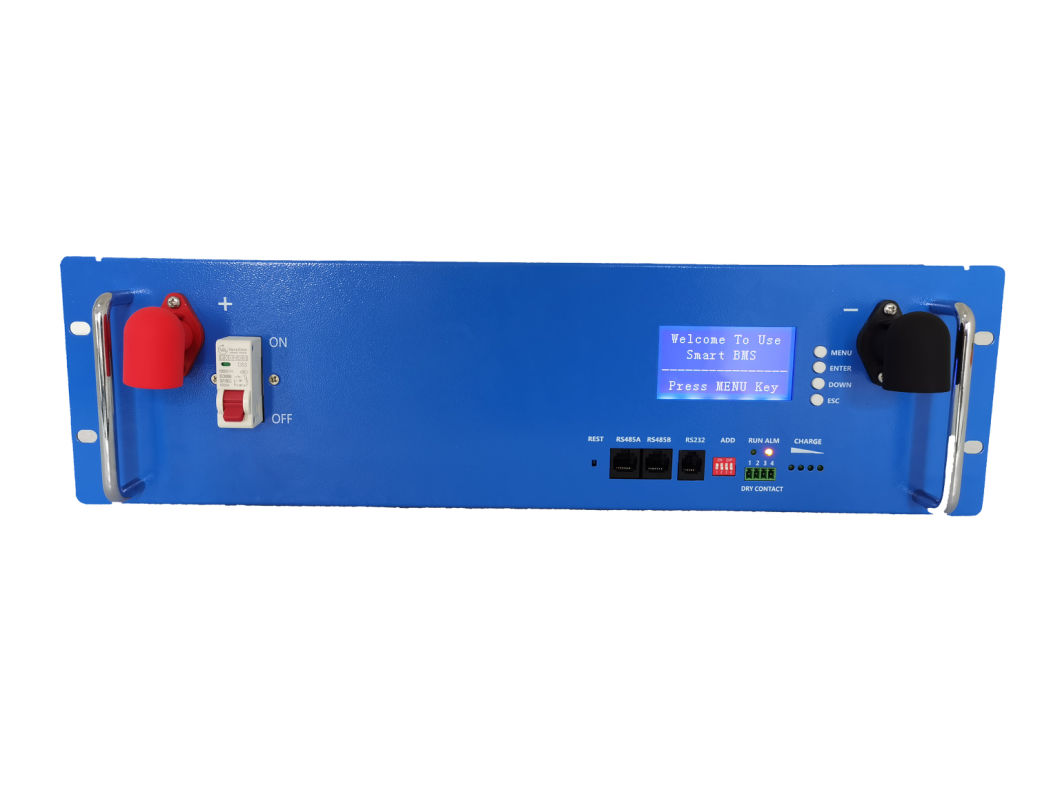

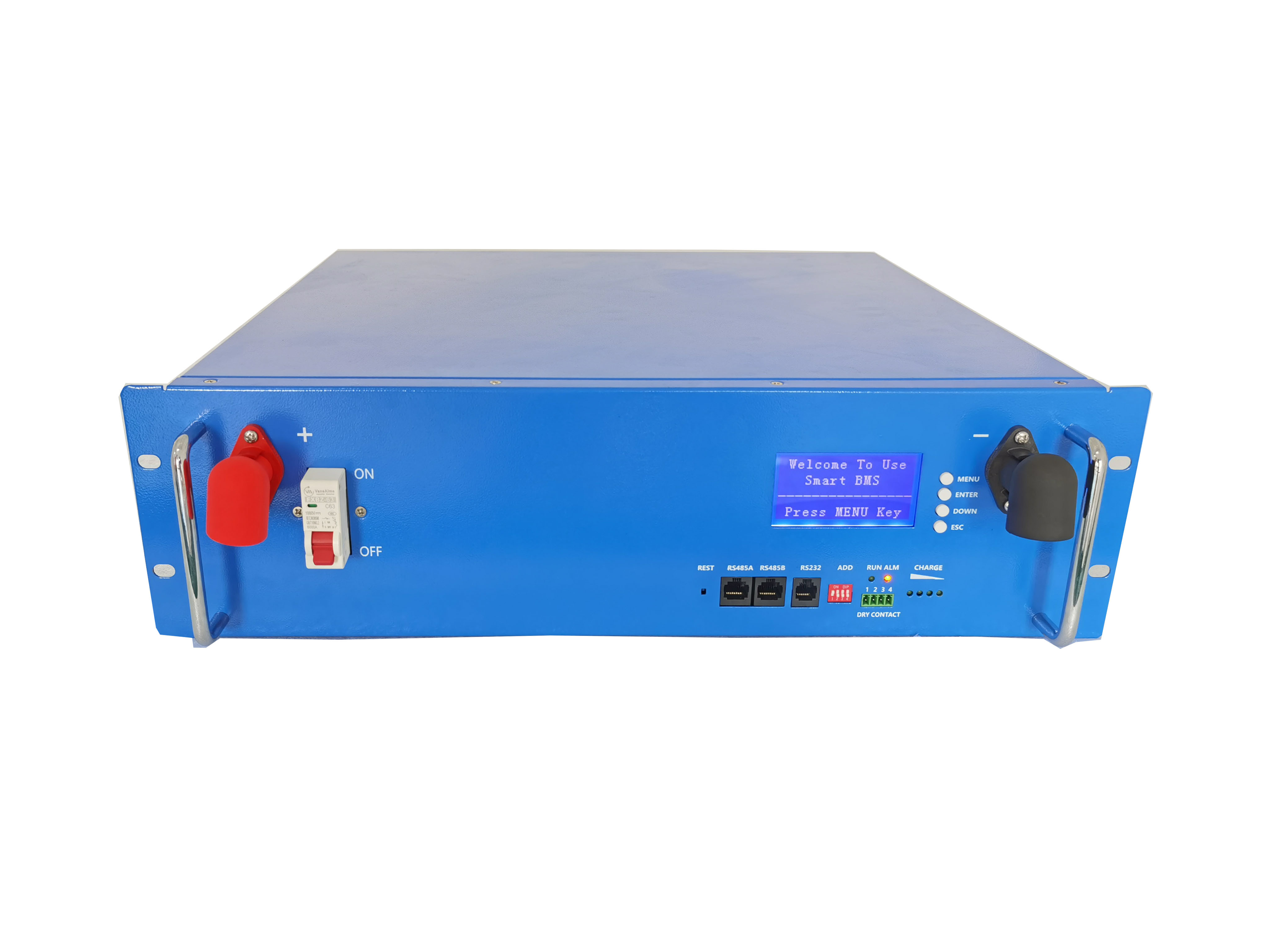

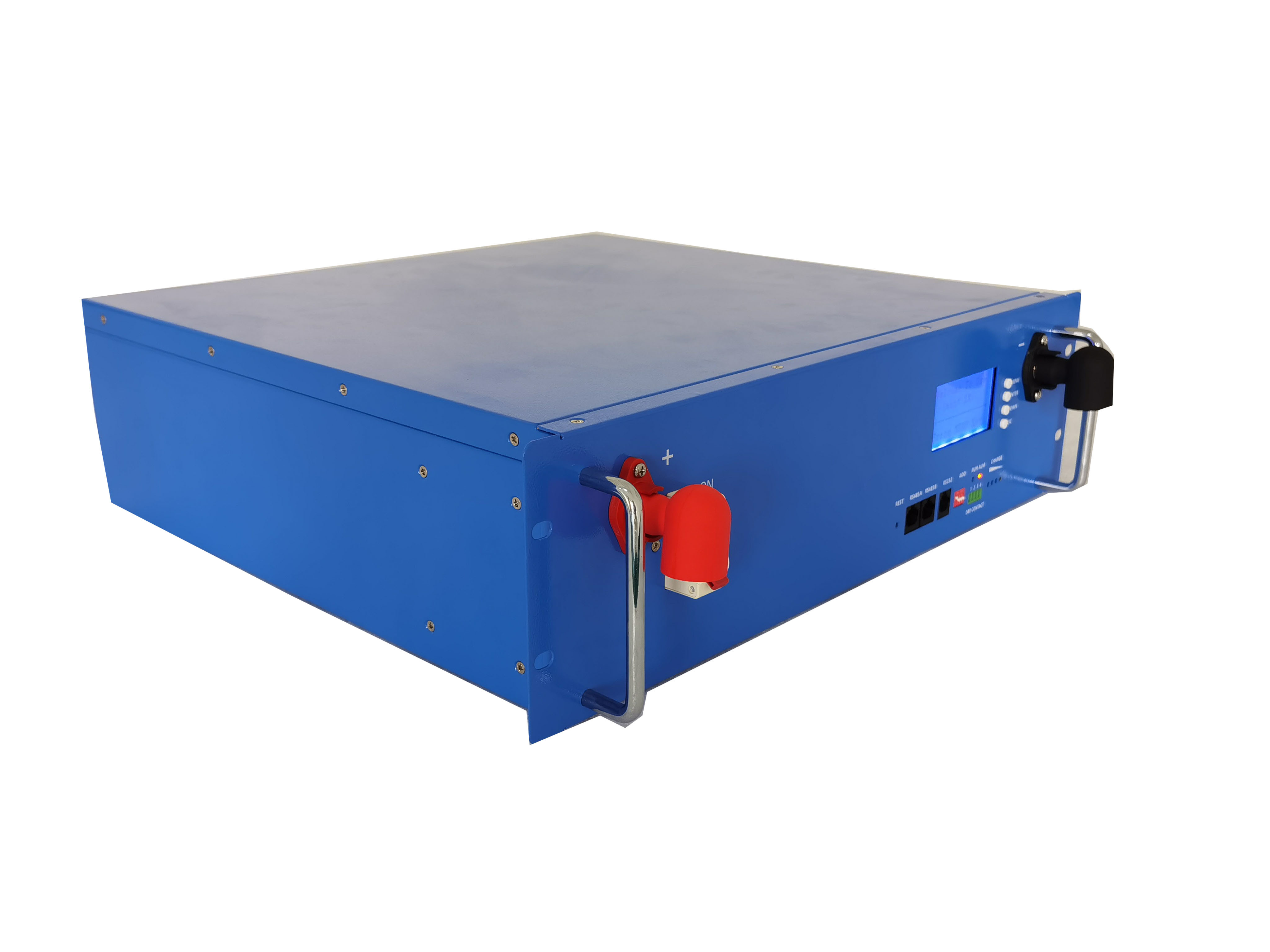

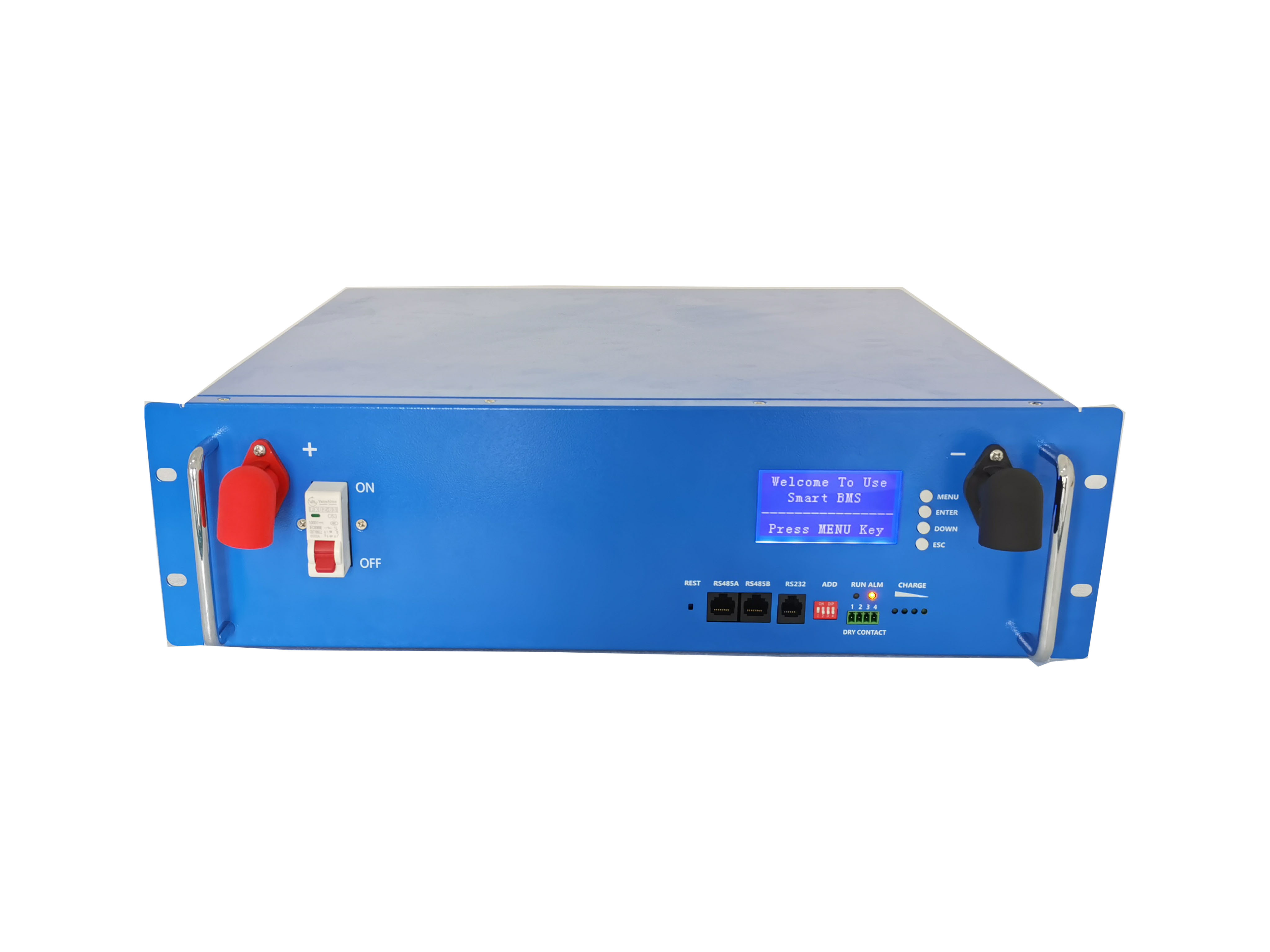

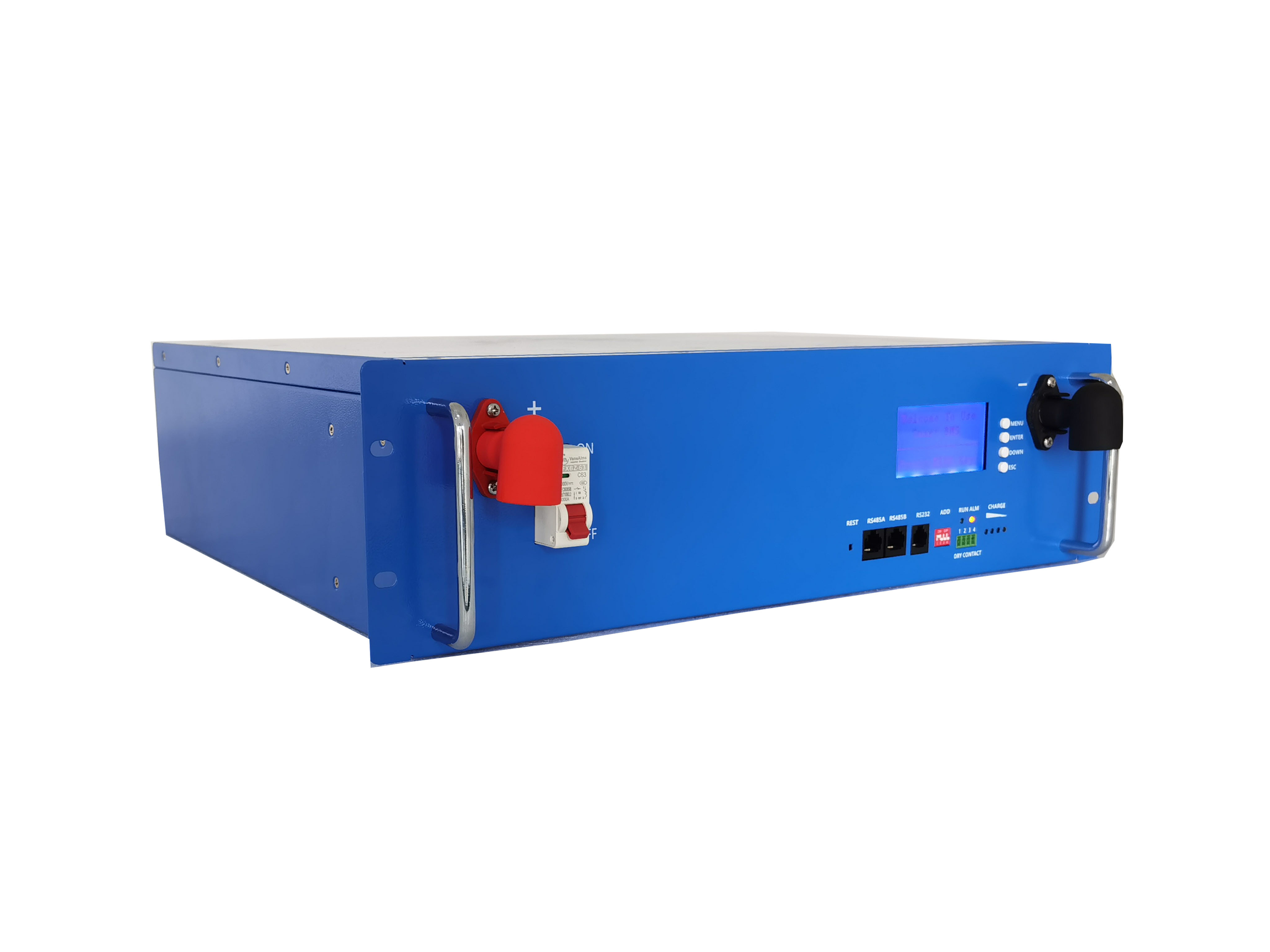

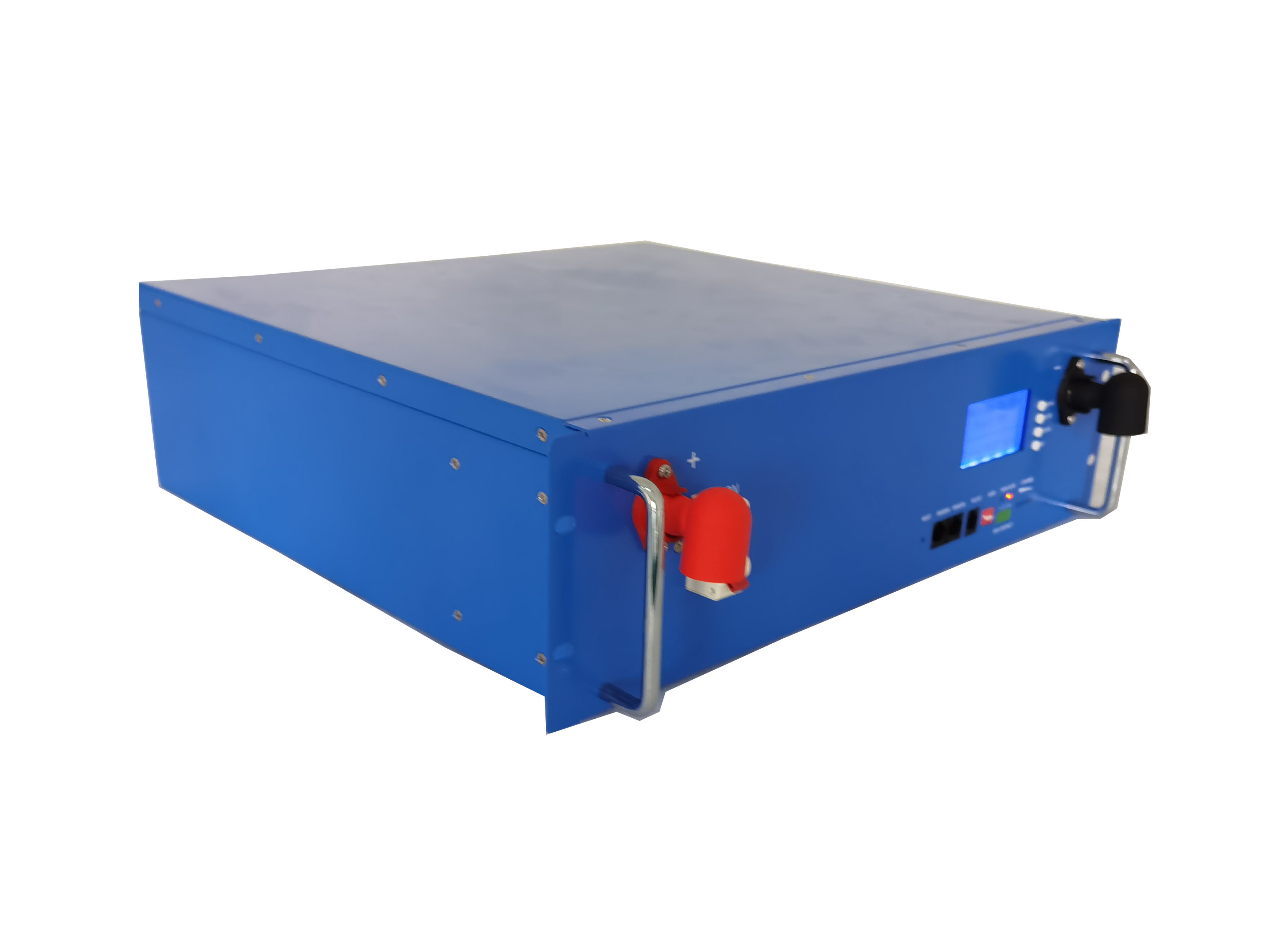

CB/CE/Un38.3 Approved Rechargeable 5kwh 48V100ah Lithium Ion Battery LiFePO4 Ess Battery for Power Storage in Solar Energy Storage System

Share to:

CB/CE/Un38.3 Approved Rechargeable 5kwh 48V100ah Lithium Ion Battery LiFePO4 Ess Battery for Power Storage in Solar Energy Storage System

Nominal Voltage:
48V
Warranty:
5 Years
Weight:
69kg
Battery Type:
Lithium Iron Phosphate
Nominal Energy:
4.5kwh
OEM/ODM:
Welcome

Availability:



Inquire Add to Basket

Product Description

Main Functions

(1) Suitable for energy storage use. High efficiency, long life and high reliability;

(2) High precision voltage sample (30mV/cell) and current sample(1A@<100A);

(3) Advanced algorithm of SOC\SOH. System calculates the real time SOC value of battery pack automatically.

(4) Intelligent cell equalization management. Automatically balance each cell through passive balancing method;

(5) Communication functions: including RS232/RS485,CAN and Ethernet, etc.;

(6) With monitoring software running on host computer to configure the BMS;

(7) Support multi packs working in parallel;

(8) LCD screen (optional). Display the current value, voltage value and working status of the pack.

Battery Type:	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage:	48V
Nominal Capacity:	100Ah
Nominal Energy:	4.5KWh
Standard Charge Voltage:	57.6V
Float Charge Voltage:	54-55V
Dimension:	482 x 221x 480mm (W x D x H)
Weight:	69KG
Maximum Charge Current:	100A
Maximum Discharge Current:	100A
Over-charge protection voltage:	57.6V
Over-discharge protection voltage:	43.2V
Over-charge protection voltage of single cell:	3.75V
Over-discharge protection voltage of single cell:	2.6V
Over-discharge protection current:	110V
Maximum Balanced Current:	200mA

Lithium Battery Division: MICA New Power
Mica battery was set up on May 2009 is a private hi-tech company integrating Lithium battery R&D, manufacturing and sales. With registered capital of 10 million RMB and an area over 20 thousand square meters, the company. Up to 2012,the total investment capital has accumulated to over 100 million RMB.

At present, the company has totally approx 1500 stuffs and obtains the most domestically-advanced automation equipment and leading producing technology. The daily production capacity of all kinds of Li-polymer and Al-Li-ion batteries amount to 200,000 units. All of these products are widely used in the communication fields and power battery field. We will increase investment and upgrade the daily production capacity of Li-polymer battery to 120,000 pieces, Al-Li-ion battery to 300,000 pieces to meet the ever-increasing needs of high-end market.

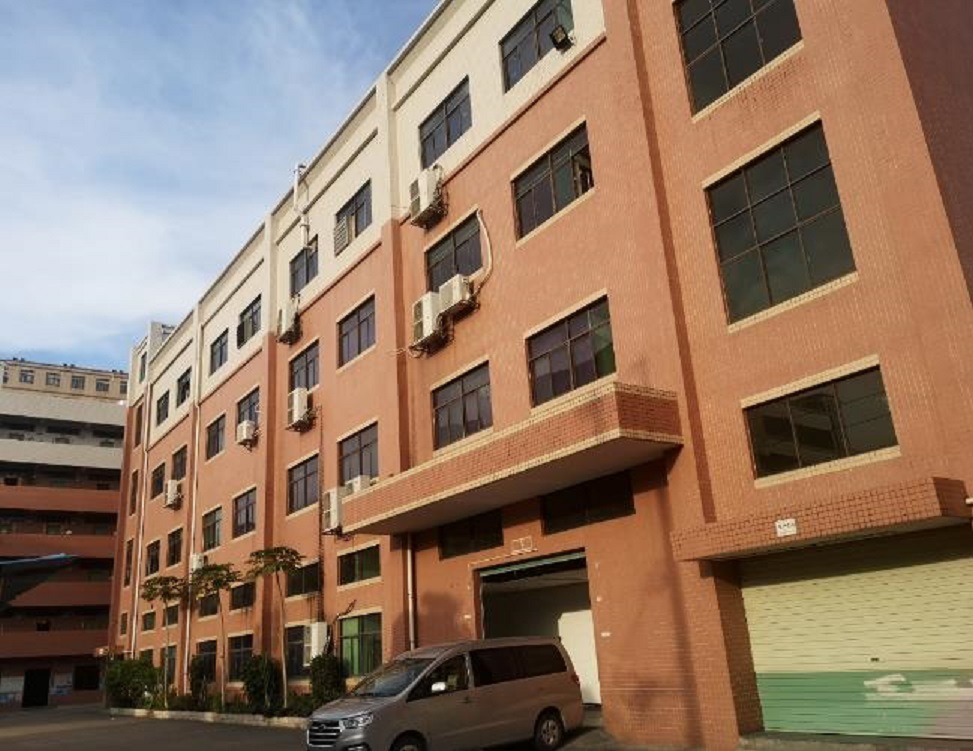

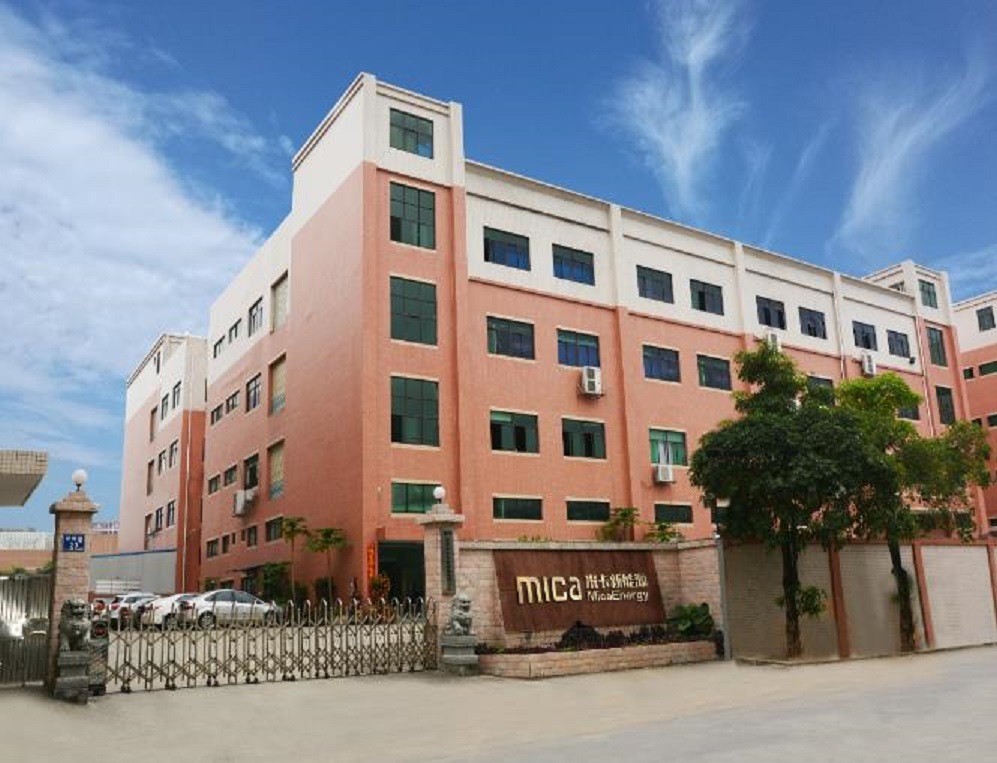

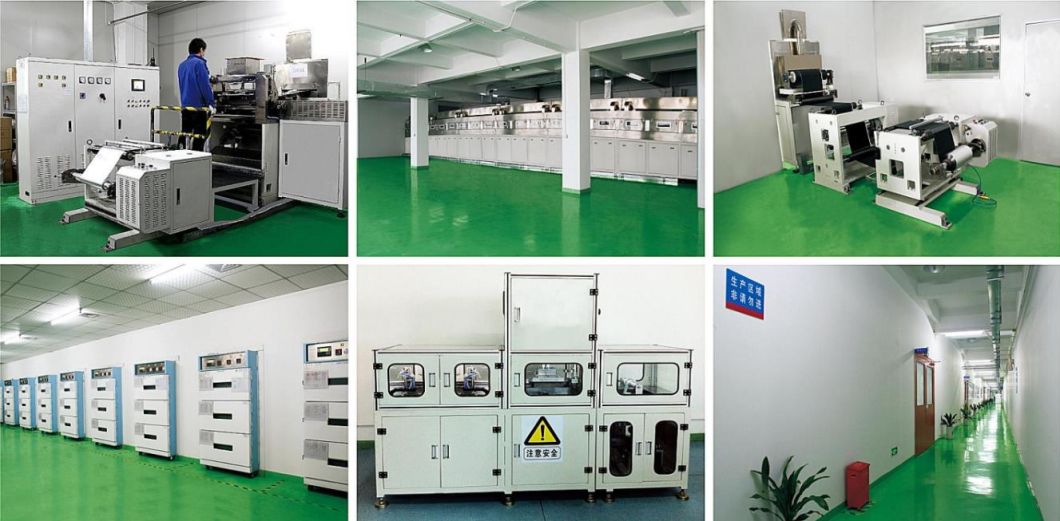

Our Factory

Advantages

1. Professional supporting team
2. Meeting Quality Standards
3. Flexible to customized request
4. quick one-stop OEM service
5. Exporting to Various Countries

Our Trade Show

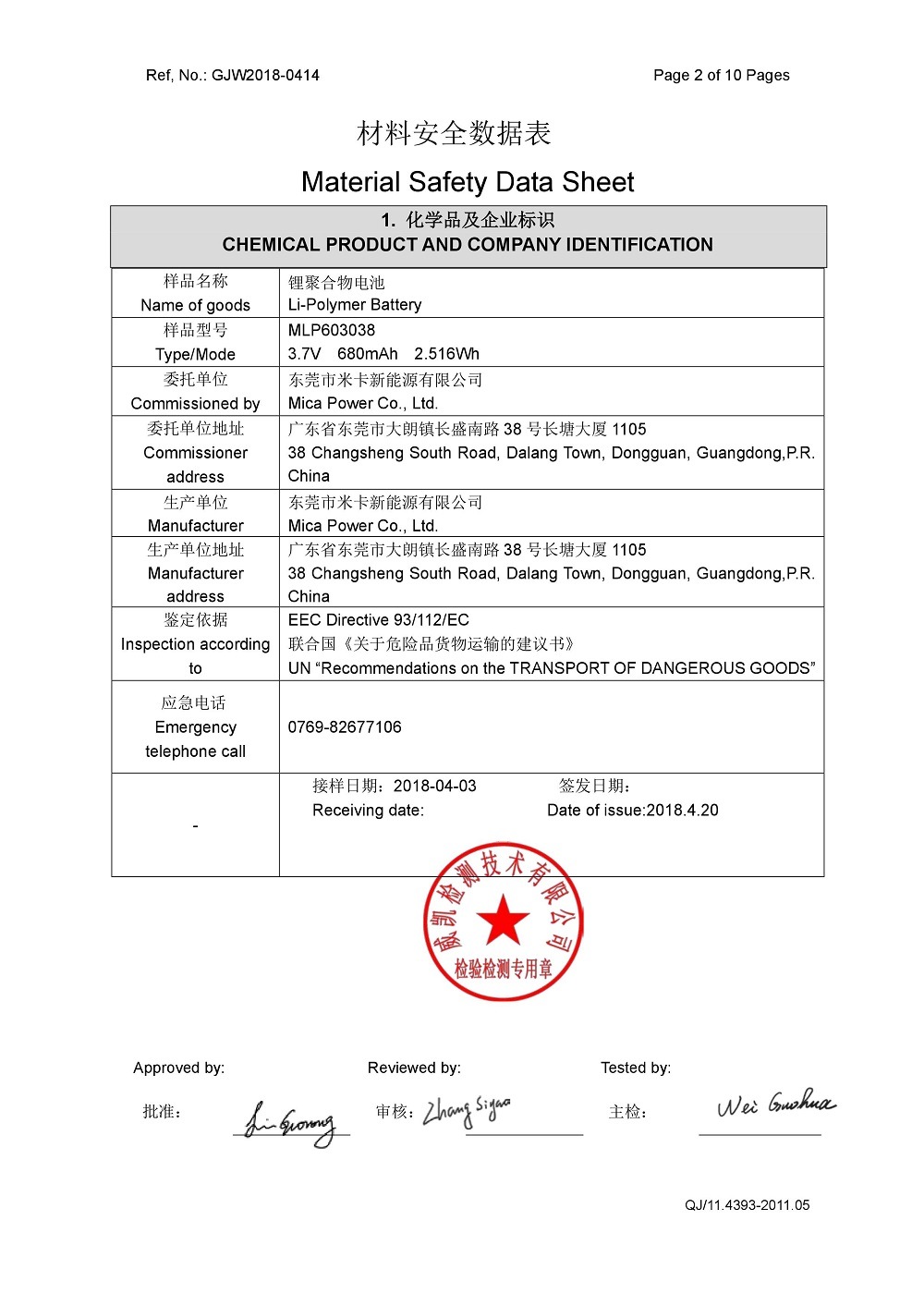

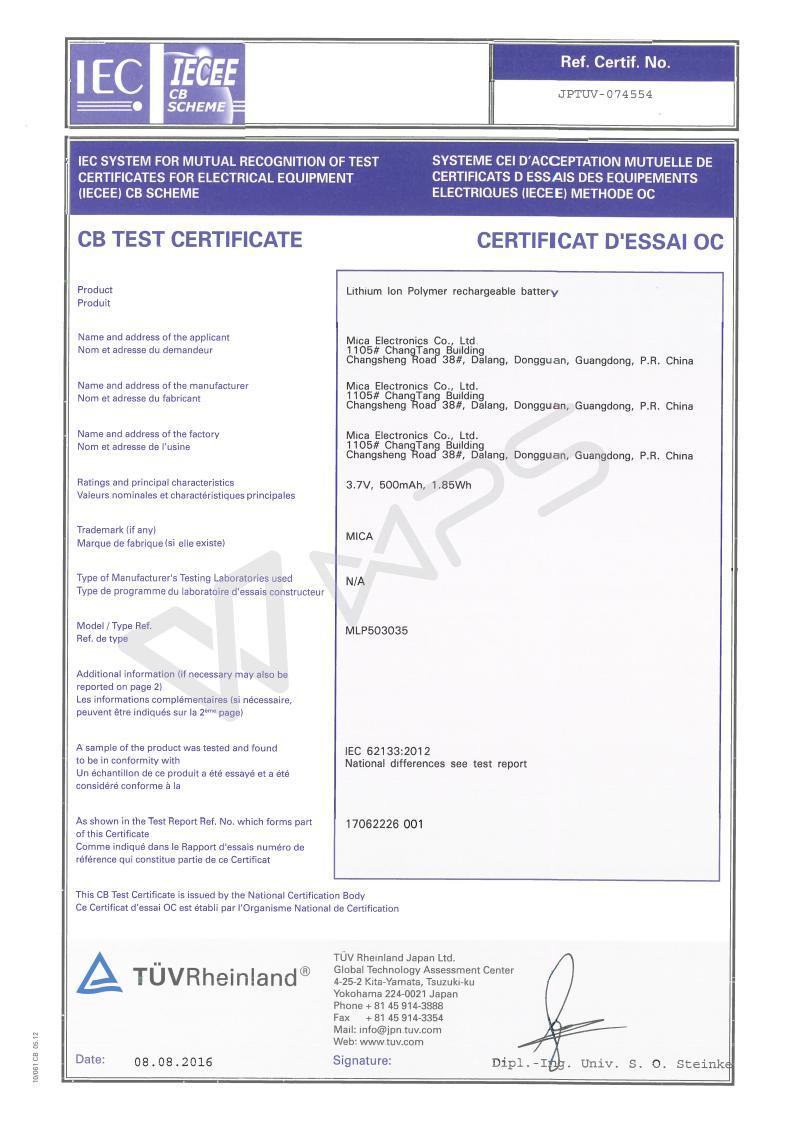

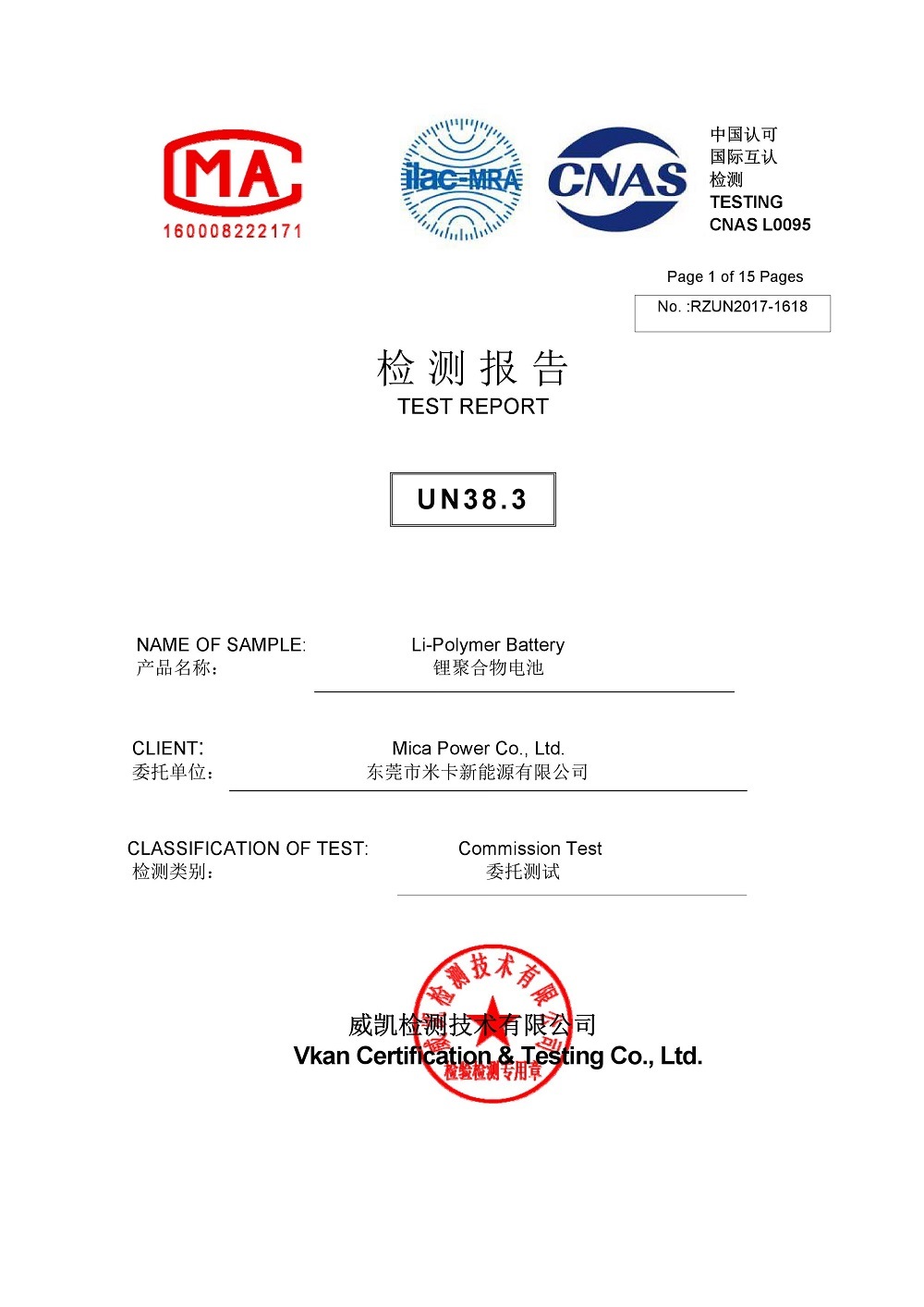

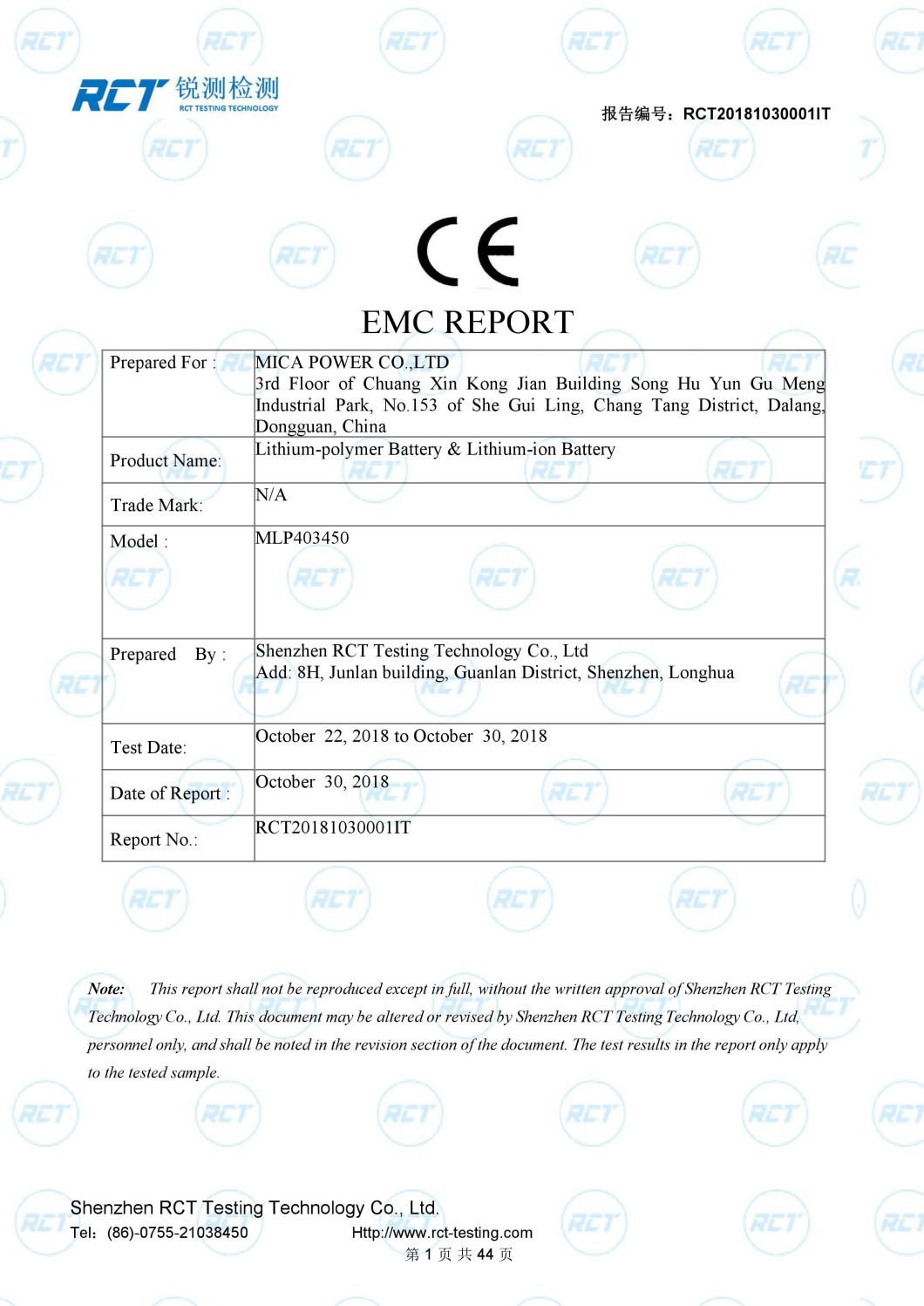

Our Certifications

FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

Q3. How do you ship the goods and how long does it take to arrive?

A: EXPRESS,Airline and sea shipping also optional. It usually takes 10-15 days/ 15-20 days to arrive.

Q4. Do you have any MOQ limit for sample order?

A: MOQ, 1-10pcs for sample checking is available.
