48V, 51.2V
100ah@25ºC, C10
5120wh@25ºC, C10
48 Kg
IP54
3 Years
Company Profile
MICA POWER Co., Ltd. was founded in 2009 is a leading supplier in lithium battery solution in China. focusing on Lithium Polymer, Lithium ion & Lithium iron phosphate/LiFePO4 technology batteries and energy storage solutions. Our management team has more than 15 years' experience in battery business.
Facility Aare: 15000 square meters;
Employee: 1000.
We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics, AGV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, clean machine, industrial, commercial use, etc with reliable and safety solution.
We also support customers with an outstanding service and a customized POS concept.
Our products have UL, CE, KC, PSE, RoHS, UN38.3 certificated and exported worldwide like Europe,North America, South America, Africa, Middle East and South-east Asia.
Why you can choose MICA battery?
10 Years lifetime-----LiFePO4 battery provides 4000+ cycles, which is more than 10 times to Lead Acid with 200~500 cycles. LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid's 3-year lifetime.
1/3* Lightweight-----LiFePO4 Battery weighs only 46 lbs for one module, only 1/3* the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration.
95%* Efficiency-----LiFePO4 battery's flat discharge curve holds above 12.8V for up to 95%* of its capacity usage, providing astronomical boosts in run-time compared to only 50% in Lead Acid.
100% Protection-----LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate.
IP65 waterproof-----Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.

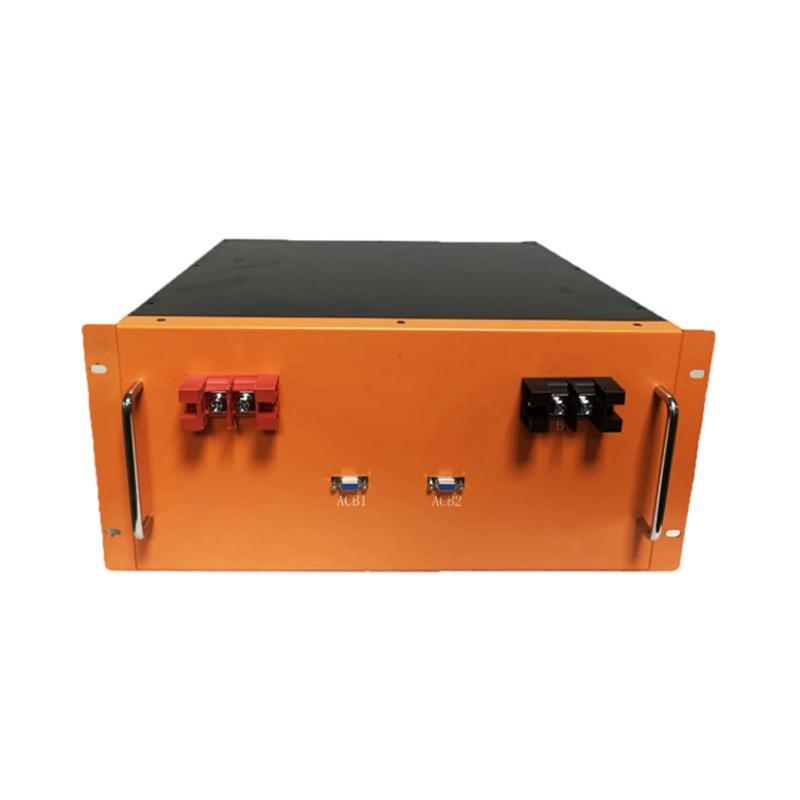

| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 48V |
| Nominal Capacity | 120Ah 25ºC,C10 |
| Nominal Energy | 5760Wh 25ºC,C10 |
| Operation Voltage | 37.5~54.75V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (5760Wh 25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (4608Wh 25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (2880Wh 25ºC,C10) |
| Dimension | 442 x 440 x 223mm (W x D x H) |
| Communication | RS485/RS232/CAN optional |
| Weight | ~48 kg |
| Warranty Period | 3 years |
| Environment Protection | IP54 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Charge Current Max | 50A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
| Items | Parameter | |
| Battery model | MC-48V120AH | |
| Nominal voltage | 51.2V | |
| Minimum capacity | 120Ah@25ºC | |
| Charging voltage | 58.4V | |
| Discharging cut-off voltage | 40V | |
| Standard charging | 0.2C /58.4V | |
| Max charging | 60A /58.4V | |
| Standard discharging | 60A/40V | |
| Max discharging | continuous discharge | 100A/40V |
| peak discharge | 200A/40V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
