48V
5 Years
100ah

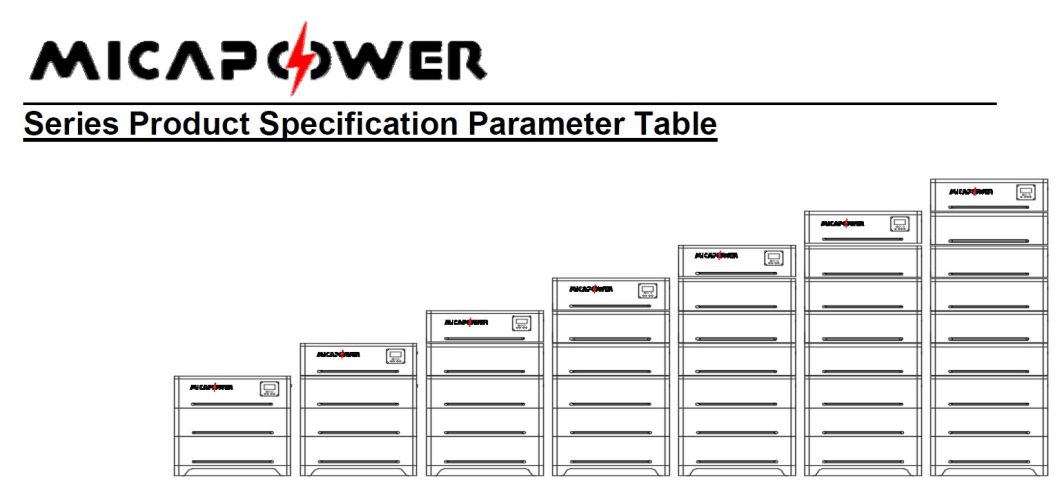

Specification
| Battery parameters | |||||||
| Technical Data | 51.2V200Ah | 51.2V300Ah | 51.2V400Ah | 51.2V500Ah | 51.2V600Ah | 51.2V700Ah | 51.2V800Ah |
| Battery Module | 51.2V100Ah/16S1P | ||||||
| Rated Energy(kWh) | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | 30.72kwh | 35.84kwh | 40.96kwh |
| Number of Modules | 2P | 3P | 4P | 5P | 6P | 7P | 8P |
| Cell Type | LFP(LiFePO4) | ||||||
| Charge Voltage | 57.6V @25ºC CC/CV | ||||||
| Min.discharg Voltage | 43.2V@25ºC /CC | ||||||
| Max. charg current | 100A@25ºC | ||||||
| Max.discharg current | 100A@25ºC | ||||||
| operation temperature | Charge Tempera : 0ºC-50ºC / discharge tempera :-20ºC-55ºC | ||||||
| Cycle Life | ≥6000 Cycles @0.3C/0.3C | ||||||
| Inverter parameters | |||||||
| Rate Power | 5000VA/5000W | ||||||
| Monitoring Option | WiFi | ||||||
| Output Voltage | European standard:220-230-240VAC American Standard120Vac:(single phase) | ||||||
| Surge Power | 10000VA/3S | ||||||
| Peak Efficiency | 0.92 | ||||||
| Transfer Time | 10ms | ||||||
| Inverter Parallel | Yes, max 6 units | ||||||
| Wave Form | Pure Sine Wave | ||||||
| altx.PV Array Power | 5200W | ||||||
| MPPT voltage Range | 120~450Vdc | ||||||
| Solar Charge current | 80A | ||||||
| AC Charge Current | 60A | ||||||
| protection grade | IP20(indoor use) | ||||||
| Frequency Range | 50Hz/60Hz (Autosensing) | ||||||

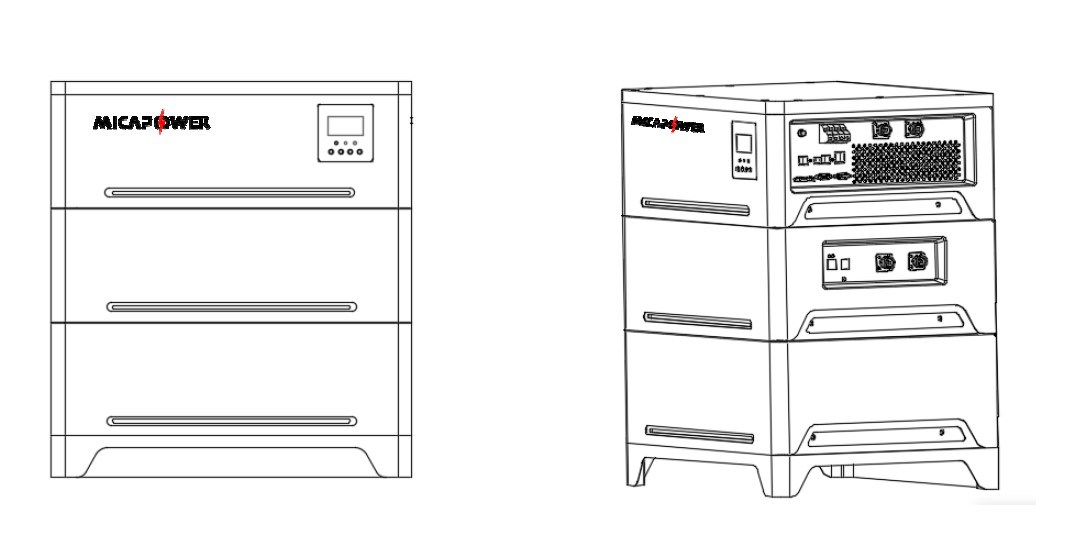

| Dimensions(L*W*H) | 413*413*665 | 413*413*857 | 413*413*1049 | 413*413*1241 | 413*413*1433 | 413*413*1625 | 413*413*1817 |
| weight | 146kg | 204.5kg | 263kg | 321.5kg | 380kg | 438.5kg | 497kg |
Customized logo
We also offer OEM/ODM service
Why choose us?

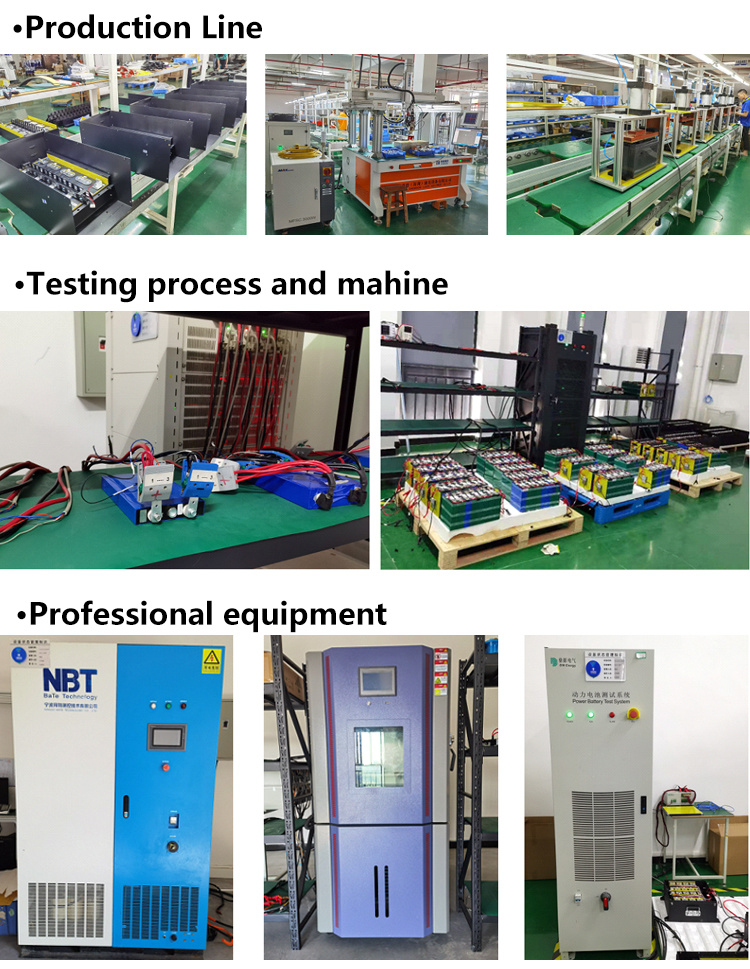

We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and
so on.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.
2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.
9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
