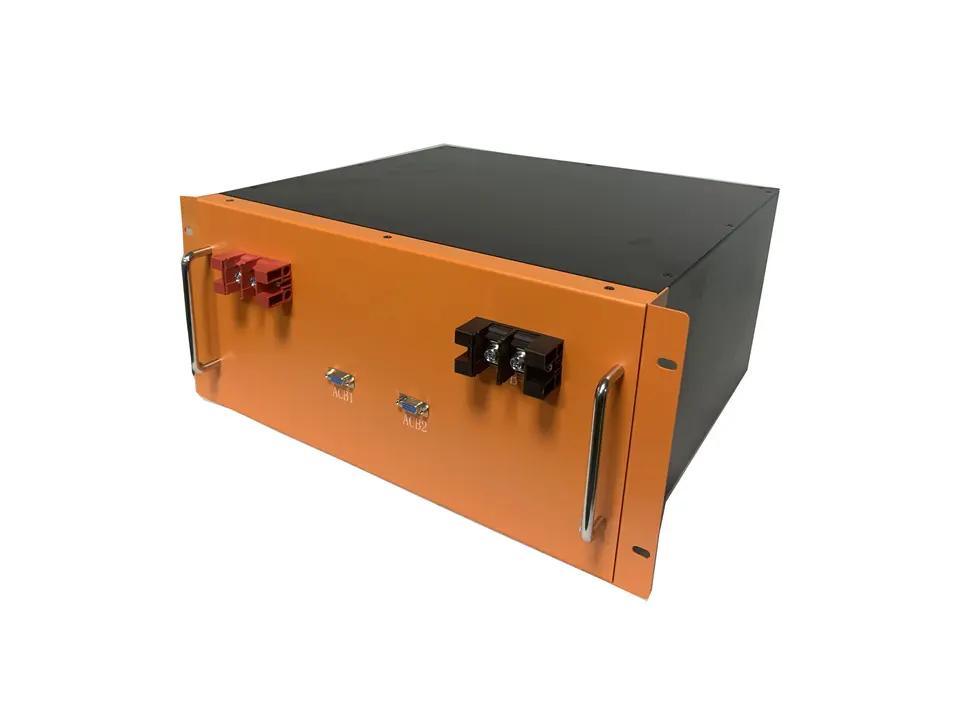

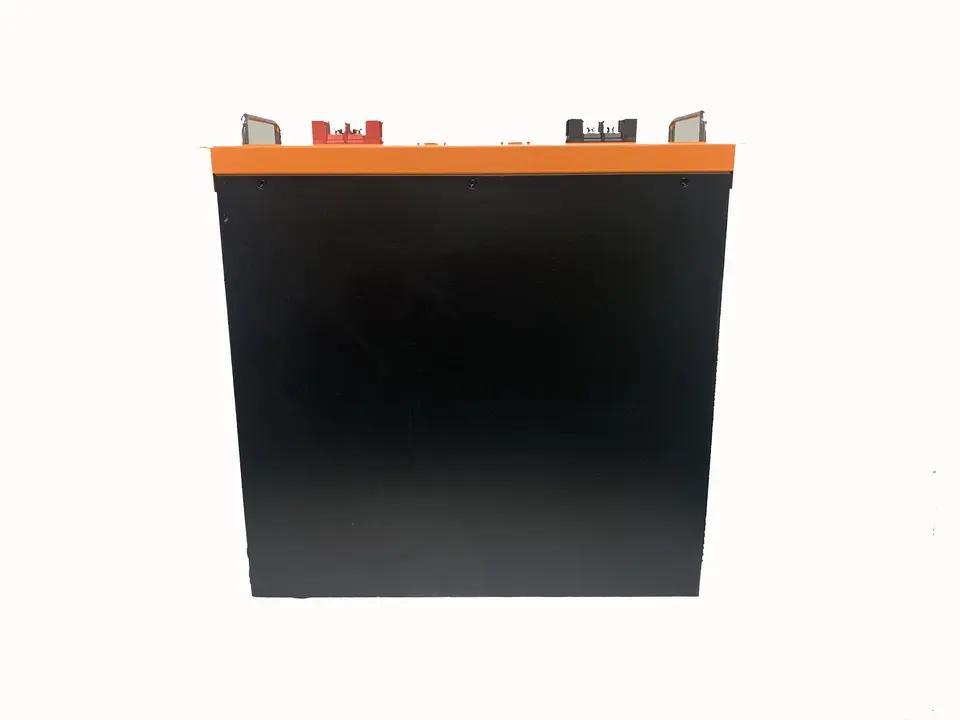

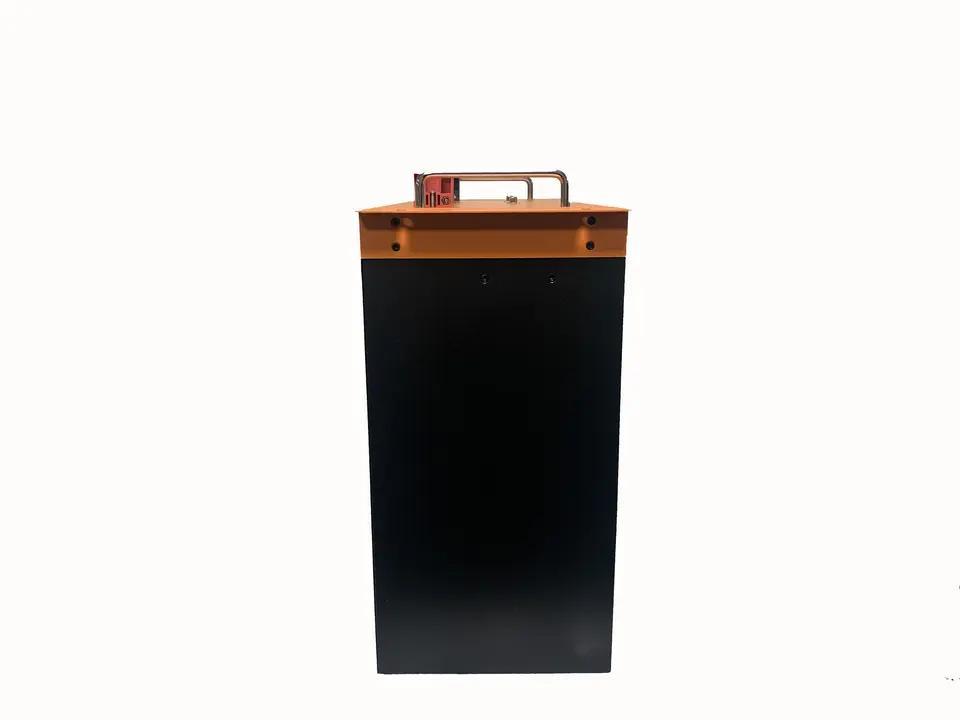

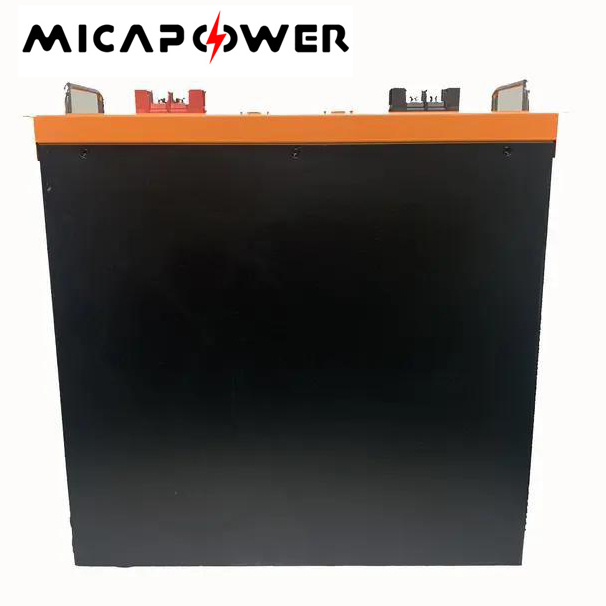

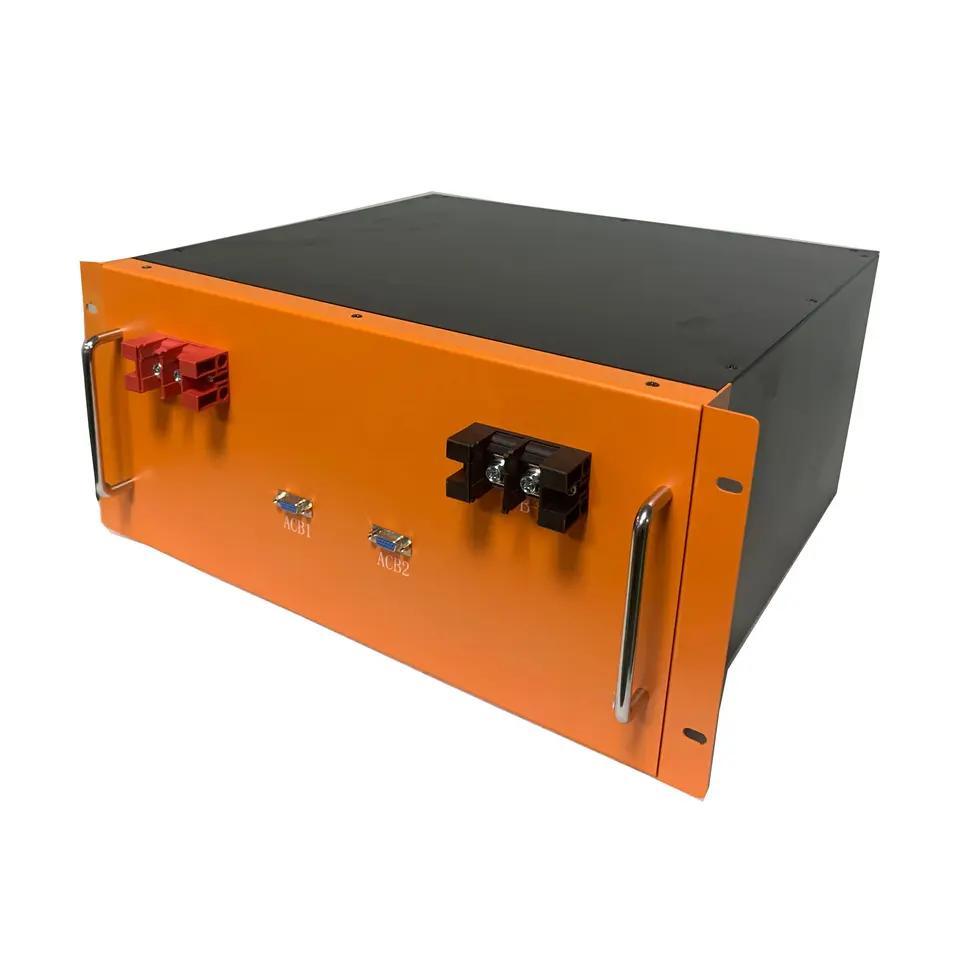

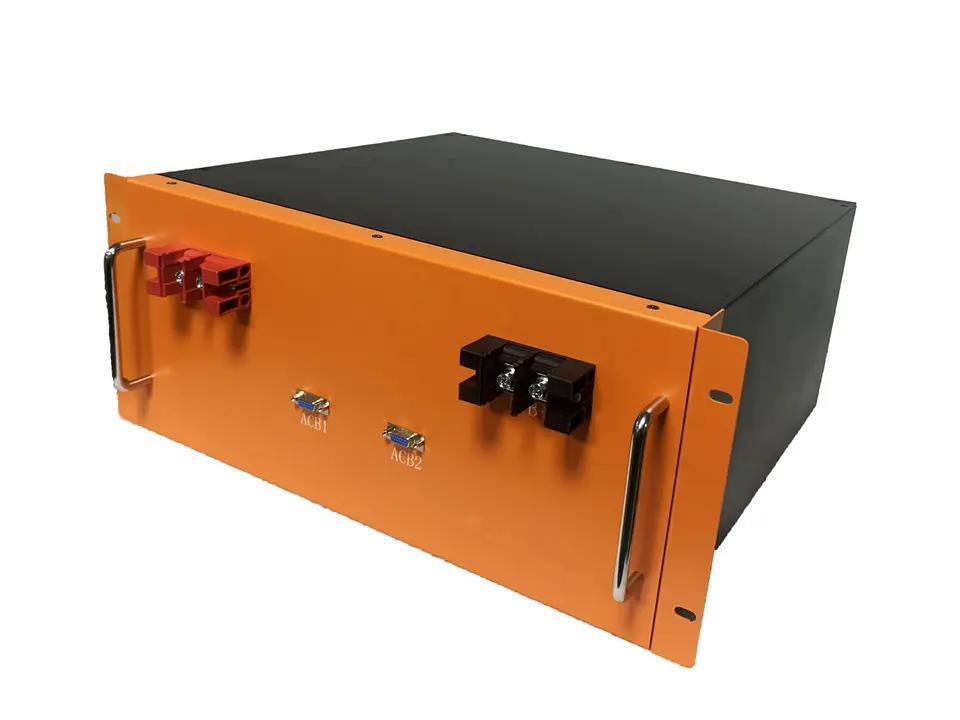

48V 100ah LiFePO4 Battery Ess All in One Battery Pack High Quality Home Energy Storage System

Nominal Voltage:
48V
Warranty:
3 Years
Nominal Capacity:
100ah

Availability:



Inquire Add to Basket

Product Description

Energy storage system
Specification

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	48V
Nominal Capacity	120Ah 25ºC,C10
Nominal Energy	5760Wh 25ºC,C10
Operation Voltage	37.5~54.75V
Operation Temperature	Charge: 0°C - 45°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (5760Wh 25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (4608Wh 25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (2880Wh 25ºC,C10)
Dimension	442 x 440 x 223mm (W x D x H)
Communication	RS485/RS232/CAN optional
Weight	~48 kg
Warranty Period	3 years
Environment Protection	IP54

BMS/Charge/Discharge
Charge Voltage Max	58.4V
Discharge Cut-off Voltage	40V
Charge Current Max	50A
Discharge Current Max	100A continues 200A burst (10seconds)
Self-discharge Rate	<2% per month
Protection	Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection

Advantages:
1.Super safe technology: with over charge protection/over discharge protection/over current protection/short protection/interior resistance/current
consumption
2.Ultra long cycle life 500-700 times
3.Hundreds of models for different size with 10-10000mAh
4.Flexible size design, can be customized

Applications:
Power Bank, RC toys, Power Tool, Electronic bike, Electric scooter, LED light, Security Products, Solar&Wind Energy Storage System, etc.
48V 100ah LiFePO4 Battery Ess All in One Battery Pack High Quality Home Energy Storage System
Customized logo

We also offer OEM/ODM service
Why choose us?

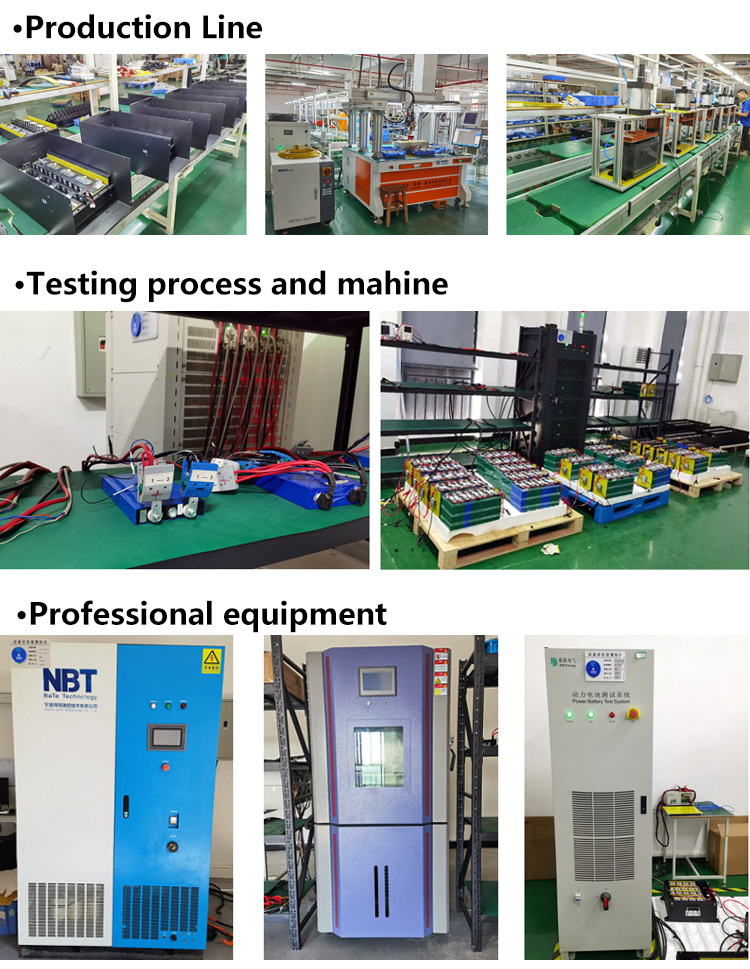

We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and
so on.

48V 100ah LiFePO4 Battery Ess All in One Battery Pack High Quality Home Energy Storage System

1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.

2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.

3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

4. Q: Can I have a sample order?
A: Yes, sample order for test is available.

5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.

6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.

7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.

8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.

9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.

10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
